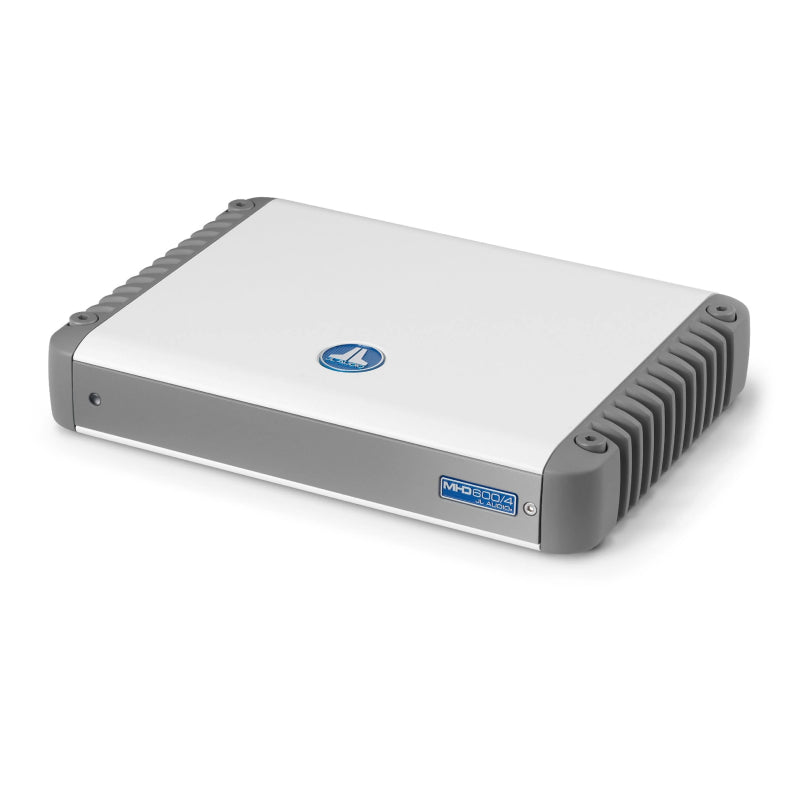

JL Audio Marine amplifier MHD600/4

JL Audio MHD600/4 MHD Series 4-Channel 150W RMS x 4 at 2 Ohms, Class-D Full-Range Marine Amplifier

We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• MHD Series 4-Channel Class-D Full-Range Marine Amplifier
• MHD amplifier
• Power input plug
• Speaker connection plug(s)
• (4) mounting feet
• 2.5 mm Allen wrench
• 4 mm Allen wrench
• (4) machine screws
• JL Audio badge
• Owner's Manual





Versatile Performance and Marine-Ready Durability for Your Sound System

Experience unmatched versatility with this amplifier, designed to seamlessly pair with the MHD750/1 for powerful subwoofer systems or operate as a 3-channel setup, delivering 150W x 2 to satellites and 300W x 1 to a subwoofer. Built for marine conditions, its rugged white and gray powder-coated finish, gasketed control cover, and corrosion-resistant stainless steel hardware ensure long-lasting durability on the water.

Experience Pristine Sound with Revolutionary Single Cycle Control™ Technology

Unlock the true potential of your marine audio system with the MHD600/4 amplifier, featuring revolutionary Single Cycle Control™ technology. This innovative design corrects distortion 400,000 times per second, ensuring pristine sound quality while consuming 60% less current and fitting into a compact design that's just 1/4 the size of traditional Class A/B amplifiers—making it the perfect choice for high-performance audio on the water.


Unleash Consistent Power and Clarity with R.I.P.S. Technology

Transform your marine audio setup with the MHD600/4 amplifier, powered by R.I.P.S. (Regulated, Intelligent Power Supply) technology. This cutting-edge feature guarantees consistent power output and minimal distortion across varying battery voltages and load impedances, ensuring you enjoy crystal-clear sound and dynamic performance on every wave.

SPECIFICATIONS

Low Frequency Response : 50-500 Hz

High Frequency Response : 50-500 Hz

Number of Channels : 4

Frequency Response : 6-30000 Hz

Built In Crossovers : Yes

RMS Power Output : 150x4 Watts

Channel Separation : Yes

Amplifier Class : D

Fuse Rating : 50 A

Promo : Yes

FEATURES

Features:

Amplifier Type: 4-channel Class D marine full-range amplifier
Power Output: 150 W x 4 at 1.5-4 Ω or 300 W x 2
Design Technology: Single-Cycle Control switching design for efficient performance
Power Regulation: R.I.P.S. (Regulated Intelligent Power Supply) technology for consistent power output
Sound Quality: Tight power supply regulation minimizes distortion and maximizes sound quality
Subwoofer Compatibility: Ideal pairing with MHD750/1 for subwoofer systems
3-Channel Option: Can be used as a 3-channel system amplifier (150W x 2 for satellites, 300W x 1 for subwoofer)
Marine-Grade Construction: Durable build with white and gray powder-coat finishes
Control Protection: Gasketed cover for control protection
Corrosion Resistance: Stainless steel hardware for resistance in marine environments


Specifications:

RMS Power Output (Watts x Channels): 150 x 4
Frequency Response at Rated RMS Power: ---
THD at Rated RMS Power: 0.03%
Signal to Noise Ratio: 110 dB
Input Voltage: 14.4v
Peak Power Output (Watts x Channels): N/A
Power at 2 Ohms (Watts x Channels): 150 x 4
Bridged Power (Watts x Channels): 300 x 2
Minimum Impedance Bridged: 3 Ω
Minimum Impedance Unbridged: 1.5 Ω
Amplifier Class: D
Low-Pass Crossover Frequency: 50-500 Hz
Low-Pass Slope (dB/octave): 12 or 24 dB/octave
High-Pass Crossover Frequency: 50-500 Hz
High-Pass Slope (dB/octave): 12 or 24 dB/octave
Bass Boost: No
Bass Boost Frequency: N/A
Fan Cooled: No
Fuse Rating: 50A
Speaker Level Inputs: Yes
Preamp Outputs: 2
Height: 2 inches
Width: 10-3/4 inches
Depth: 9-1/2 inches

UPC: 699440982245
Weight: 8
Authorized Internet Dealer




Warranty: 2 Year(s) Warranty.This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
