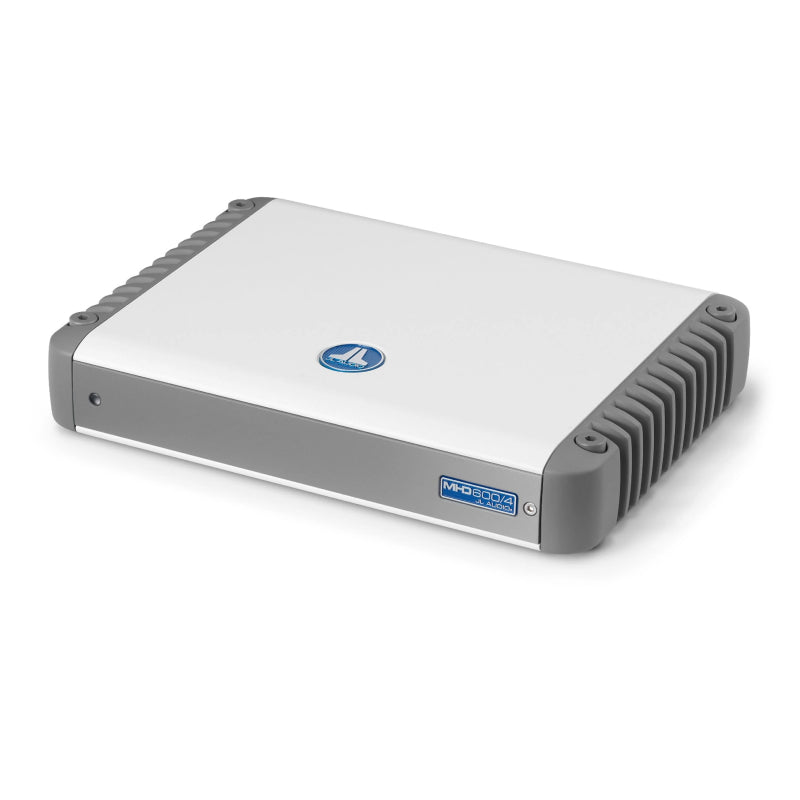

JL Audio Marine amplifier MHD600/4-24V

JL Audio MHD600/4-24V MHD Series 4-Channel 150W RMS x 4 at 2 Ohms, Class-D Full-Range Marine Amplifier, For 24V Systems

We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• MHD Series 4-Channel Class-D Full-Range Marine Amplifier
• 4-Channel 24-volt amplifier
• Power/Ground/Turn-On plug
• (2) 2-speaker connection plugs
• (4) Mounting feet
• 2.5mm Allen-wrench
• 4mm Allen-wrench
• (4) M4x40mm Flat head machine screws
• JL Audio badge w/ adhesive backing
• Owner's Manual





Optimized for 24V Negative-Ground Electrical Systems

Elevate your marine audio experience with this versatile amplifier, featuring a powerful 3-channel configuration (150W x 2 for satellites, 300W x 1 for subwoofer). Built with durable white and gray powder-coat finishes, a gasketed cover for control protection, and corrosion-resistant stainless steel hardware, it’s designed to withstand harsh marine conditions. Exclusively compatible with 24V negative-ground electrical systems, this amplifier delivers reliable performance on the water.

Experience Pristine Sound with Revolutionary Single Cycle Control™ Technology

Experience unmatched sound quality with the MHD600/4-24V amplifier, featuring revolutionary Single Cycle Control™ technology that corrects distortion over 400,000 times per second for pristine audio performance. With an impressive efficiency that reduces current draw by 60% compared to traditional Class A/B amplifiers, this compact powerhouse not only delivers superior fidelity but also generates less heat, making it the perfect choice for high-performance marine audio systems.


Unleash Consistent Power and Clarity with R.I.P.S. Technology

Transform your marine audio setup with the MHD600/4-24V amplifier, equipped with innovative R.I.P.S. (Regulated, Intelligent Power Supply) technology. This cutting-edge system ensures stable power delivery and minimal distortion across varying battery voltages and load impedances, providing you with reliable, high-quality sound performance for all your aquatic adventures.

SPECIFICATIONS

Low Frequency Response : 50-500 Hz

High Frequency Response : 50-500 Hz

Number of Channels : 4

Built In Crossovers : Yes

RMS Power Output : 4x150 Watts

Channel Separation : Yes

Amplifier Class : D

Fuse Rating : 1x25 A

FEATURES

Features:

Amplifier Type: 4-channel Class D marine full-range amplifier
Power Output: 150 W x 4 @ 1.5-4 Ω or 300 W x 2
Technology: Single-Cycle Control switching design for enhanced performance
Power Regulation: R.I.P.S. technology for tight power supply regulation, reducing distortion and maximizing sound quality
Satellite Amplifier: Ideal for delivering huge dynamics with pristine resolution
3-Channel Configuration: Can be used as a 3-channel system amplifier (150 W x 2 for satellites, 300 W x 1 for subwoofer)
Marine-Grade Construction: Features durable white and gray powder-coat finishes
Control Protection: Gasketed cover for added protection of controls
Corrosion Resistance: Stainless steel hardware for durability in marine environments
Voltage Compatibility: Designed for operation in 24V negative-ground electrical systems only; use in positive ground or other voltages may cause damage and void warranty


Specifications:

RMS Power Output (Watts x Channels): 150 x 4
Frequency Response at Rated RMS Power: ---
THD at Rated RMS Power: ---
Signal to Noise Ratio: ---
Input Voltage: N/A
Peak Power Output (Watts x Channels): ---
Power at 2 Ohms (Watts x Channels): 150 x 4
Bridged Power (Watts x Channels): 300 x 2
Minimum Impedance Bridged: 3 Ω
Minimum Impedance Unbridged: 1.5 Ω
Amplifier Class: D
Low-Pass Crossover Frequency: 50-500 Hz
Low-Pass Slope (dB/octave): 12 or 24 dB/octave
High-Pass Crossover Frequency: 50-500 Hz
High-Pass Slope (dB/octave): 12 or 24 dB/octave
Bass Boost: ---
Bass Boost Frequency: ---
Fan Cooled: ---
Fuse Rating: 25A
Speaker Level Inputs: Yes
Preamp Outputs: 2
Height: 2 inches
Width: 10-3/4 inches
Depth: 9-1/2 inches

UPC: 699440982276
Weight: 5
