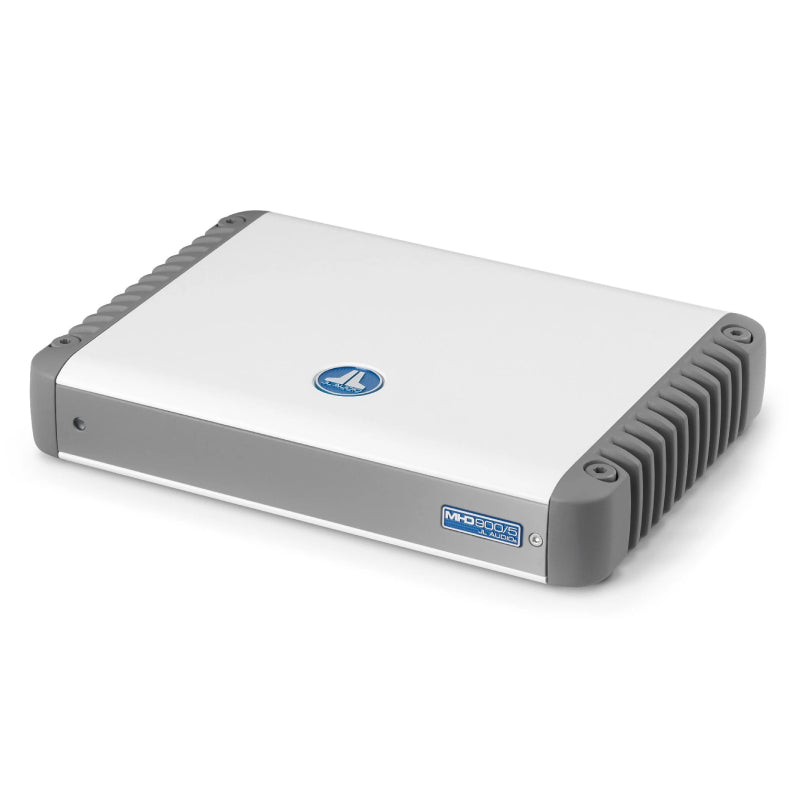

JL Audio Marine amplifier MHD900/5-24V

JL Audio MHD900/5-24V MHD Series 5-Channel 100W RMS x 4 + 500W RMS x 1 at 4 Ohms, Class-D Full-Range Marine Amplifier, For 24V Systems

We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• 5-Channel Class-D 24 Volt Marine Amplifier
• Power/Ground/Turn-On Plug
• (2) 2-Speaker Connection Plugs
• 1-Speaker Connection Plug
• (4) Mounting Feet
• 2.5mm Allen-Wrench
• 4mm Allen-Wrench
• (4) M4x40mm Flat Gead Machine Screws
• JL Audio Badge
• Owner's Manual





Engineered for 24V Negative-Ground Systems with Optimized Power and Performance

Built to withstand the toughest marine environments, this amplifier features sleek white and gray powder-coat finishes, a gasketed control cover, and durable stainless steel hardware to ensure long-lasting performance. Designed specifically for 24V negative-ground systems, it powers a complete high-performance audio setup, driving four satellite speakers and a powerful subwoofer for an immersive sound experience on the water.

Experience Pristine Sound with Revolutionary Single Cycle Control™ Technology

Experience unmatched sound quality with the MHD750/1 amplifier, featuring revolutionary Single Cycle Control™ technology that corrects distortion over 400,000 times per second for pristine audio performance. With an impressive efficiency that reduces current draw by 60% compared to traditional Class A/B amplifiers, this compact powerhouse not only delivers superior fidelity but also generates less heat, making it the perfect choice for high-performance marine audio systems.


Unleash Consistent Power and Clarity with R.I.P.S. Technology

Transform your marine audio setup with the MHD750/1 amplifier, equipped with innovative R.I.P.S. (Regulated, Intelligent Power Supply) technology. This cutting-edge system ensures stable power delivery and minimal distortion across varying battery voltages and load impedances, providing you with reliable, high-quality sound performance for all your aquatic adventures.

SPECIFICATIONS

Low Frequency Response : 50-500 Hz

High Frequency Response : 50-500 Hz

Number of Channels : 5

Frequency Response : 12-28000 Hz

Built In Crossovers : Yes

RMS Power Output : 4x100 Watts

Amplifier Class : D

Fuse Rating : 1x30 A

FEATURES

Features:

5-Channel Class D Marine System Amplifier: Designed for 24V systems only
Power Output: 100 W x 4 for satellite speakers + 500 W x 1 for subwoofer (Total 900 W)
Compact, One-Box Solution: Ideal for installations with limited space and high sound quality demands
Supports Complete Marine Audio System: Drives four satellite speakers and a subwoofer
Single Cycle Control Switching Design: Ensures efficient power delivery and superior performance
R.I.P.S Technology: Regulates power across various load impedances, delivering consistent high-quality sound
Durable Marine-Ready Construction: Features white/gray powder-coat finishes, gasketed control cover, and stainless steel hardware for harsh marine environments
24V Negative Ground Operation: Compatible with 24V negative-ground electrical systems only
Warranty Warning: Not suitable for positive ground systems or voltages other than 24V; improper use voids warranty


Specifications:

RMS Power Output: 100 W x 4
Frequency Response at Rated RMS Power: ---
THD at Rated RMS Power: 0.03%
Signal to Noise Ratio: 108 dB
Input Voltage: 28.8V
Peak Power Output: N/A
Power at 2 Ohms: 75 W x 4
Bridged Power: 150 W x 2
Minimum Impedance Bridged: 3 Ohms
Minimum Impedance Unbridged: 1.5 Ohms
Amplifier Class: D
Low-Pass Crossover Frequency (Sub Channel): 50-500 Hz
Low-Pass Slope: 12 or 24 dB/octave
High-Pass Crossover Frequency (Front/Rear Channels): 50-500 Hz
High-Pass Slope: 12 or 24 dB/octave
Bass Boost: No
Bass Boost Frequency: N/A
Fan Cooled: No
Fuse Rating: 60
Speaker Level Inputs: Yes
Preamp Outputs: No
Dimensions (HxWxD): 2" x 10-3/4" x 9-1/2"

UPC: 699440982290
Weight: 8
