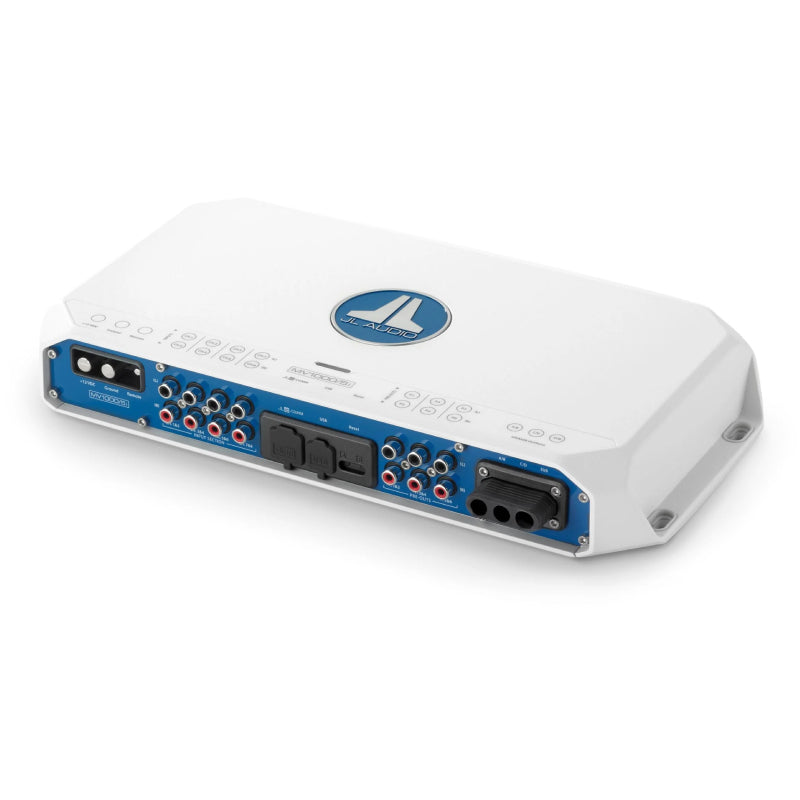

JL Audio Marine amplifier MVi Series MV1000/5i

JL Audio MV1000/5i MVi Series 5-Channel 100W RMS x 4 + 600W RMS x 1 at 2 Ohms, Class-D Marine Amplifier

We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• MVi Series 5-Channel Class-D Marine Amplifier
• MVi amplifier
• Power connector
• Speaker output harnesses
• 6-foot USB A/B cable
• RCA Terminal covers (installed)
• (4) stainless steel mounting screws
• 2.5 mm Allen wrench
• 3 mm Allen wrench
• Owner's Manual





Transform Your Audio Experience with Integrated DSP and Robust Design

Elevate your audio experience with our Integrated Digital Signal Processor (DSP) that lets you optimize channel timing, frequency response, and output levels via user-friendly TüN™ Software on any device. Enjoy a durable, compact design with a marine-grade finish, plus versatile Differential-Balanced Analog Inputs for exceptional noise rejection and Analog Pre-Outs with independent DSP processing.

Optimize Your Audio Experience with JLid™ Command and Control and Essential Accessories

Enhance your system with JLid™ Command and Control for seamless communication with VXi amplifiers and networking for up to six MVi amplifiers. Optional accessories include the VXi-BTC Bluetooth® Communicator for wireless setup, the M-DRC-50 for quick DSP preset access, and the MVi-HUB JLid-COMM for comprehensive control. Plus, enjoy essential included items like a Power Connector, two Speaker Output Harnesses, a Subwoofer Output Harness, and a 6 ft A/B USB Cable.

Unlock Superior Sound with NexD2™ Switching Technology

Experience unparalleled audio quality with the JL Audio MV1000/5i, featuring our advanced NexD2™ Switching Technology that enhances fidelity and efficiency. This innovative amplifier utilizes cutting-edge components and a unique circuit layout, minimizing distortion and radiated noise for crystal-clear sound. With on-board DSP synchronization, the MV1000/5i delivers precise audio performance, making it the perfect choice for discerning listeners who demand the best in their marine audio experience.

SPECIFICATIONS

Number of Channels : 5

Frequency Response : 12-24000 Hz

RMS Power Output : 4x100 Watts

Amplifier Class : D

Fuse Rating : 1x80 A

FEATURES

Features:

Power Output: 100 W x 4 @ 2 Ω (75 W x 4 @ 4 Ω) and 600 W x 1 @ 2 Ω for subwoofer; bridgeable for 3-channel configuration: 200 W x 2 @ 4 Ω + 600 W @ 2 Ω.
Advanced Technology: Equipped with 2nd-Gen NexD2™ Switching Amplifier Technology and DSP-controlled full-range technology featuring DirectFET™ outputs for superior fidelity and efficiency.
Integrated Digital Signal Processor (DSP): Onboard DSP allows for optimizing channel timing, frequency response, and output levels, with TüN™ Software for easy setup and adjustments via PC, tablet, or smartphone.
Compact and Durable Design: Ultra-compact cast alloy chassis with marine-grade powder coat finish and corrosion-resistant hardware for enhanced durability.
Versatile Inputs/Outputs: Differential-Balanced Analog Inputs (up to 16V RMS) provide exceptional noise rejection, and Analog Pre-Outs feature independent DSP processing (4V RMS Max).
JLid™ System Command and Control: Proprietary protocol for communication and control of VXi amplifiers and accessories, supporting networking for up to six MVi amplifiers.
Optional Accessories: Includes VXi-BTC Bluetooth® Communicator for wireless configuration, M-DRC-50 for activation of up to six DSP presets, and MVi-HUB JLid-COMM for full-system DRC control and preset selection.
Included Accessories: Comes with Power Connector (for 4 AWG wire), two Speaker Output Harnesses, Subwoofer Output Harness, and a 6 ft A/B USB Cable.


Specifications:

RMS Power Output: 75 x 4 Watts
Frequency Response at Rated RMS Power: 12-24 kHz
Total Harmonic Distortion (THD) at Rated RMS Power: 1%
Signal to Noise Ratio: 99 dB
Input Voltage: 14.4V
Peak Power Output: N/A
Power at 2 Ohms: 100 x 4 Watts
Bridged Power: 200 x 2 Watts
Minimum Impedance Bridged: 4 Ω
Minimum Impedance Unbridged: 2 Ω
Amplifier Class: D
Low-Pass Crossover Frequency: Via TüN Software
Low-Pass Slope (dB/octave): Via TüN Software
High-Pass Crossover Frequency: Via TüN Software
High-Pass Slope (dB/octave): Via TüN Software
Bass Boost: Via TüN Software
Bass Boost Frequency: Via TüN Software
Fan Cooled: No
Fuse Rating: 80A
Speaker Level Inputs: Yes
Preamp Outputs: 6
Height: 2-1/8 inches
Width: 14 inches
Depth: 8-3/8 inches

UPC: 699440986519
Weight: 5
