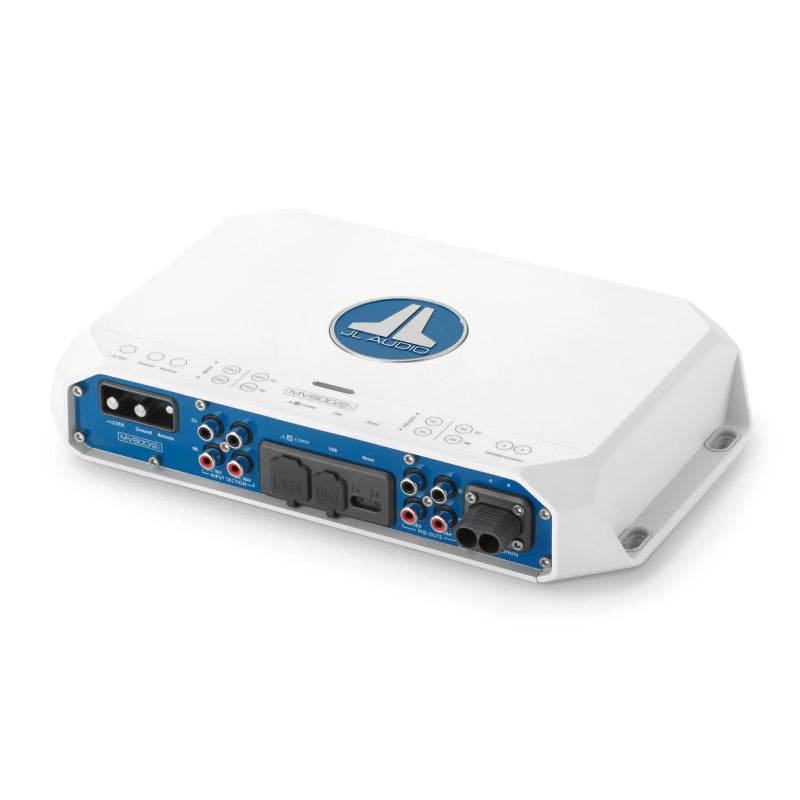

JL Audio Marine amplifier MV600/2i

JL Audio MV600/2i MVi Series 2-Channel 300W RMS x 2 at 2 Ohms, Class-D Marine Amplifier

We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• MVi Series 2-Channel Class-D Marine Amplifier
• MVi amplifier
• Power connector
• Speaker output harnesses
• 6-foot USB A/B cable
• RCA Terminal covers (installed)
• (4) stainless steel mounting screws
• 2.5 mm Allen wrench
• 3 mm Allen wrench
• Owner's Manual





Unmatched Durability and Performance with Integrated DSP and Versatile Connectivity

Experience unmatched durability and performance with our compact cast alloy chassis featuring a marine-grade powder coat finish. The integrated Digital Signal Processor (DSP) fine-tunes channel timing and frequency response, while TüN™ Software provides effortless setup from your PC, tablet, or smartphone. Plus, enjoy ultra-versatile inputs and outputs, including Differential-Balanced Analog Inputs for exceptional noise rejection and Analog Pre-Outs for customizable audio processing.

Seamless Audio Management with JLid™ System and Essential Accessories

Experience seamless audio management with our JLid™ System Command and Control, connecting up to six MVi amplifiers. Enhance your setup with optional accessories like the VXi-BTC Bluetooth® Communicator for wireless control and the M-DRC-50 for quick access to DSP presets. Plus, enjoy essential inclusions like a Power Connector for 4 AWG wire, two Speaker Output Harnesses, and a 6 ft A/B USB Cable for effortless installation.

Unlock Superior Sound with NexD2™ Switching Technology

Experience unparalleled audio quality with the JL Audio MV600/2i, featuring our advanced NexD2™ Switching Technology that enhances fidelity and efficiency. This innovative amplifier utilizes cutting-edge components and a unique circuit layout, minimizing distortion and radiated noise for crystal-clear sound. With on-board DSP synchronization, the MV1000/5i delivers precise audio performance, making it the perfect choice for discerning listeners who demand the best in their marine audio experience.

SPECIFICATIONS

Number of Channels : 2

Frequency Response : 12-24000 Hz

RMS Power Output : 300 Watts

Amplifier Class : D

Fuse Rating : 1x50 A

FEATURES

Features:

Power Output: 300 W x 2 @ 2 Ω, 180 W x 2 @ 4 Ω, Bridged Power: 600 W x 1 @ 4 Ω
Advanced NexD2™ Technology: Second-generation design enhances fidelity and efficiency; DSP-Controlled Performance with DirectFET™ outputs for low noise.
Compact and Durable Design: Cast alloy chassis with a marine-grade powder coat finish; Corrosion-Resistant Hardware ensures enhanced durability.
Integrated Digital Signal Processor (DSP): Optimizes channel timing, frequency response, and output levels; TüN™ Software allows easy setup via PC, tablet, or smartphone.
Ultra-Versatile Inputs/Outputs: Differential-Balanced Analog Inputs (up to 16V RMS) for outstanding noise rejection; Analog Pre-Outs feature independent DSP processing (4V RMS Max).
JLid™ System Command and Control: Proprietary protocol for communication with VXi amplifiers; Networking Capabilities support up to six MVi amplifiers.
Optional Accessories: VXi-BTC Bluetooth® Communicator for wireless configuration; M-DRC-50 for activating up to six DSP presets; MVi-HUB JLid-COMM for full-system DRC control.
Included Accessories: Power Connector (for 4 AWG wire); Two Speaker Output Harnesses; 6 ft A/B USB Cable.


Specifications:

RMS Power Output: 180 W x 2
Frequency Response: 12-24k Hz
Total Harmonic Distortion (THD): 1% at Rated RMS Power
Signal to Noise Ratio: 99 dB
Input Voltage: 14.4V
Peak Power Output: Not Applicable
Power at 2 Ohms: 300 W x 2
Bridged Power Output: 600 W x 1
Minimum Impedance (Bridged): 4 Ω
Minimum Impedance (Unbridged): 2 Ω
Amplifier Class: D
Low-Pass Crossover Frequency: Configurable via TüN Software
Low-Pass Slope (dB/octave): Configurable via TüN Software
High-Pass Crossover Frequency: Configurable via TüN Software
High-Pass Slope (dB/octave): Configurable via TüN Software
Bass Boost: Configurable via TüN Software
Bass Boost Frequency: Configurable via TüN Software
Cooling: Fan Cooled: No
Fuse Rating: 50A
Speaker Level Inputs: Yes
Preamp Outputs: 4
Height: 2-1/8 inches
Width: 11-1/4 inches
Depth: 8-3/8 inches

UPC: 699440986465
Weight: 5
Authorized Internet Dealer




Warranty: 2 Year(s) Warranty.This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
