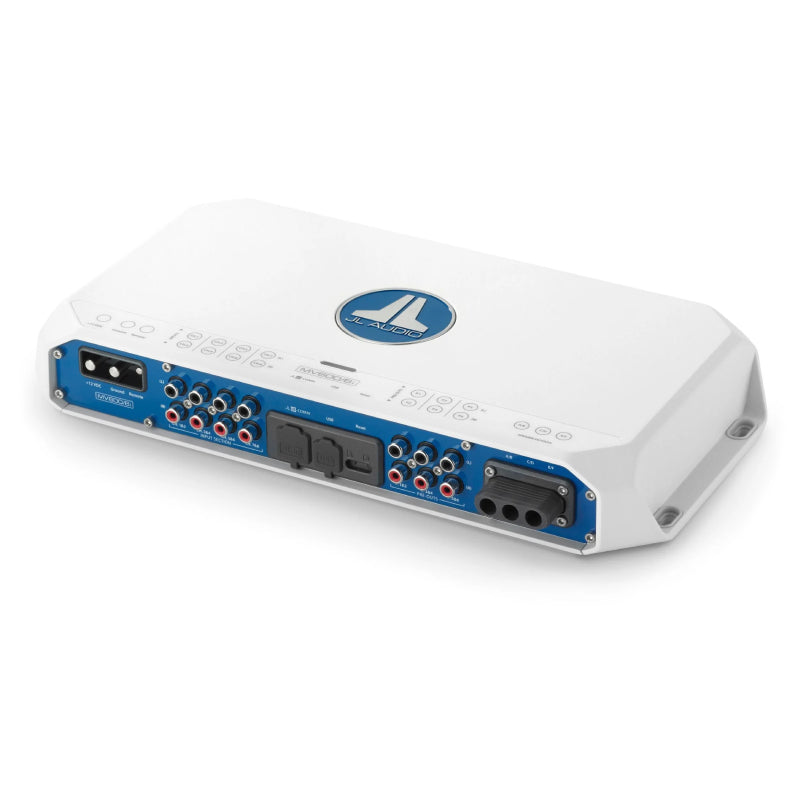

JL Audio Marine amplifier MV600/6i

JL Audio MV600/6i MVi Series 6-Channel 100W RMS x 6 at 2 Ohms, Class-D Marine Amplifier with Integrated DSP

We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• MVi Series Class-D Marine Amplifier
• MVi amplifier
• Power connector
• Speaker output harnesses
• 6-foot USB A/B cable
• RCA Terminal covers (installed)
• (4) stainless steel mounting screws
• 2.5 mm Allen wrench
• 3 mm Allen wrench
• Owner's Manual





Durable Marine Amplifier and User-Friendly DSP

Experience exceptional audio performance with our durable marine amplifier, featuring a compact cast alloy chassis, marine-grade powder coat finish, and corrosion-resistant hardware, all enhanced by powerful DSP for precise channel tuning. Enjoy effortless setup and adjustments through our user-friendly TüN™ Software on your PC, tablet, or smartphone!

Elevate Your Sound Experience with Our Versatile Marine Amplifier

Unlock limitless audio possibilities with our versatile marine amplifier, featuring differential-balanced analog inputs (up to 16V RMS) and analog pre-outs with independent DSP processing. Enjoy seamless networking with VXi amplifiers and JLid™ accessories, including Bluetooth® connectivity and customizable DSP presets. Plus, with included accessories like a power connector for 4 AWG wire and multiple speaker output harnesses, setting up your perfect sound system has never been easier!

Unlock Superior Sound with NexD2™ Switching Technology

Experience unparalleled audio quality with the JL Audio MV600/6i, featuring our advanced NexD2™ Switching Technology that enhances fidelity and efficiency. This innovative amplifier utilizes cutting-edge components and a unique circuit layout, minimizing distortion and radiated noise for crystal-clear sound. With on-board DSP synchronization, the MV1000/5i delivers precise audio performance, making it the perfect choice for discerning listeners who demand the best in their marine audio experience.

SPECIFICATIONS

Number of Channels : 6

Frequency Response : 12-24000 Hz

Built In Crossovers : Yes

RMS Power Output : 6x100 Watts

Amplifier Class : D

Fuse Rating : 1x50 A

FEATURES

Features:

Power Output: 100 W x 6 @ 2 Ω, 75 W x 6 @ 4 Ω, Bridged mode: Up to 200 W x 3 @ 4 Ω
Advanced Technology: Second-generation NexD2™ switching amplifier technology, DSP-controlled for optimized audio performance, reduced loop area design with DirectFET™ outputs
Durable Design: Compact cast alloy chassis, marine-grade powder coat finish, corrosion-resistant hardware and connectors
User-Friendly DSP: Powerful DSP for channel timing, frequency response, and output level optimization; TüN™ Software for easy setup and adjustments via PC, tablet, or smartphone
Input/Output Versatility: Differential-Balanced Analog Inputs (up to 16V RMS), Analog Pre-Outs with independent DSP processing (4V RMS Max)
JLid™ System Command and Control: Networking capabilities for VXi amplifiers and optional JLid™ accessories, compatible with VXi-BTC Bluetooth® Communicator, M-DRC-50 for activating up to six DSP presets, MVi-HUB for network connectivity with multiple amplifiers
Included Accessories: Power Connector for 4 AWG wire, Speaker Output Harnesses (3), 6 ft A/B USB Cable


Specifications:

RMS Power Output: 75 W x 6
Frequency Response at Rated RMS Power: 12-24 kHz
Total Harmonic Distortion (THD) at Rated RMS Power: 1%
Signal to Noise Ratio: 99 dB
Input Voltage: 14.4 V
Peak Power Output: N/A
Power at 2 Ohms: 100 W x 6
Bridged Power: 200 W x 3
Minimum Impedance Bridged: 4 Ω
Minimum Impedance Unbridged: 2 Ω
Amplifier Class: D
Low-Pass Crossover Frequency: Via TüN Software
Low-Pass Slope (dB/octave): Via TüN Software
High-Pass Crossover Frequency: Via TüN Software
High-Pass Slope (dB/octave): Via TüN Software
Bass Boost: Via TüN Software
Bass Boost Frequency: Via TüN Software
Fan Cooled: No
Fuse Rating: 50 A
Speaker Level Inputs: Yes
Preamp Outputs: 6
Height: 2-1/8 inches
Width: 14 inches
Depth: 8-3/8 inches

UPC: 699440986489
Weight: 5
Authorized Internet Dealer




Warranty: 2 Year(s) Warranty.This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
