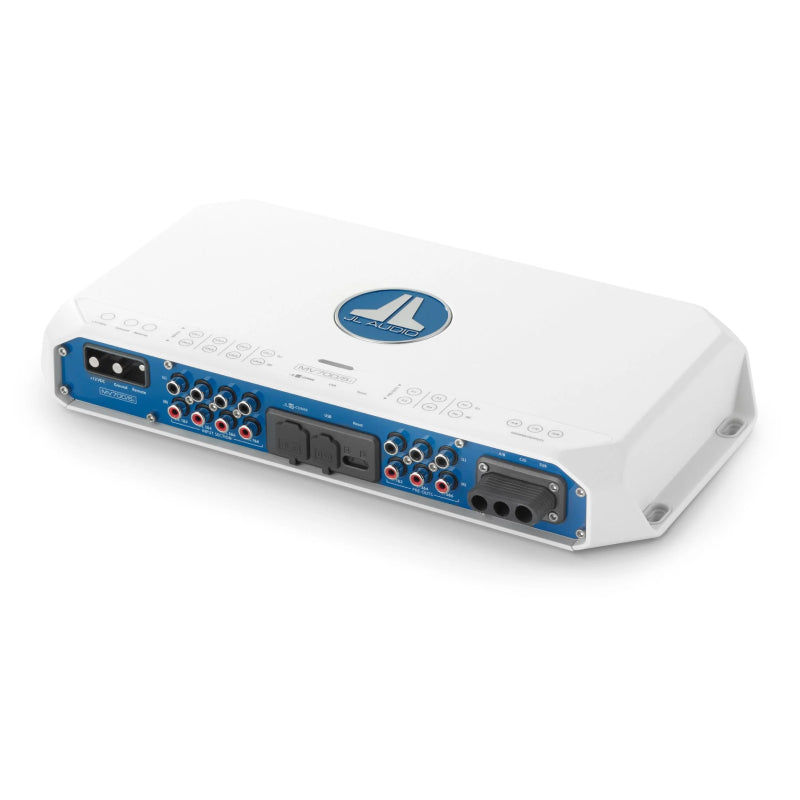

JL Audio Marine amplifier MVi Series 5-Channel Amplifier MV700/5i

JL Audio MV700/5i MVi Series 5-Channel 100W RMS x 4 + 300W RMS x 1 at 2 Ohms, Class-D Marine Amplifier with Integrated DSP

We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• MVi Series 5-Channel Class-D Marine Amplifier
• MVi amplifier
• Power connector
• Speaker output harnesses
• 6-foot USB A/B cable
• RCA Terminal covers (installed)
• (4) stainless steel mounting screws
• 2.5 mm Allen wrench
• 3 mm Allen wrench
• Owner's Manual





Superior Performance in an Ultra-Compact Marine Amplifier

Experience superior performance with our ultra-compact amplifier, featuring a sleek cast alloy chassis, marine-grade powder coat finish, and corrosion-resistant hardware, all configurable via your PC, tablet, or smartphone using the JL Audio TüN® Software for effortless adjustments!

Complete Accessories and Exceptional Fidelity with DirectFET™ Technology

Enhance your audio experience with included accessories like a power connector for 4 AWG wire, speaker output harnesses, a subwoofer output harness, and a 6 ft A/B USB cable, all backed by outstanding fidelity, ultra-low noise, and exceptional efficiency thanks to our advanced DirectFET™ output design!

Unlock Superior Sound with NexD2™ Switching Technology

Experience unparalleled audio quality with the JL Audio MV700/5i, featuring our advanced NexD2™ Switching Technology that enhances fidelity and efficiency. This innovative amplifier utilizes cutting-edge components and a unique circuit layout, minimizing distortion and radiated noise for crystal-clear sound. With on-board DSP synchronization, the MV1000/5i delivers precise audio performance, making it the perfect choice for discerning listeners who demand the best in their marine audio experience.

SPECIFICATIONS

Number of Channels : 5

Frequency Response : 12-24000 Hz

Built In Crossovers : Yes

RMS Power Output : 4x100 Watts

Amplifier Class : D

Fuse Rating : 1x60 A

FEATURES

Features:

Power Output: 75 W x 4 @ 4 Ω for main speakers; 300 W x 1 @ 2 Ω for subwoofer; optional bridging: 200 W x 2 @ 4 Ω on main channels.
Amplifier Technology: Equipped with second-generation NexD2™ switching amplifier technology; DSP-controlled full-range technology for main channels; optimized low-frequency variant for subwoofer channel.
Design: Ultra-compact cast alloy chassis with marine-grade powder coat finish and corrosion-resistant hardware.
Control: Configurable via compatible external devices (PC, Tablet, Smartphone); requires JL Audio TüN® Software application for adjustments.
Included Accessories: Power connector for 4 AWG wire; speaker output harnesses (2); subwoofer output harness; 6 ft A/B USB cable.
Performance: Outstanding fidelity with very low noise and exceptional efficiency; reduced loop area design utilizing DirectFET™ outputs.


Specifications:

RMS Power Output: 75 W x 4
Frequency Response at Rated RMS Power: 12-24 kHz
Total Harmonic Distortion (THD) at Rated RMS Power: 1%
Signal to Noise Ratio: 99 dB
Input Voltage: 14.4 V
Peak Power Output: N/A
Power at 2 Ohms: 100 W x 4
Bridged Power: 200 W x 2
Minimum Impedance (Bridged): 4 Ω
Minimum Impedance (Unbridged): 2 Ω
Amplifier Class: D
Low-Pass Crossover Frequency: Via TüN Software
Low-Pass Slope (dB/octave): Via TüN Software
High-Pass Crossover Frequency: Via TüN Software
High-Pass Slope (dB/octave): Via TüN Software
Bass Boost: Via TüN Software
Bass Boost Frequency: Via TüN Software
Fan Cooled: No
Fuse Rating: 60 A
Speaker Level Inputs: Yes
Preamp Outputs: 6
Height: 2-1/8 inches
Width: 14 inches
Depth: 8-3/8 inches

UPC: 699440986502
Weight: 5
Authorized Internet Dealer




Warranty: 2 Year(s) Warranty.This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
