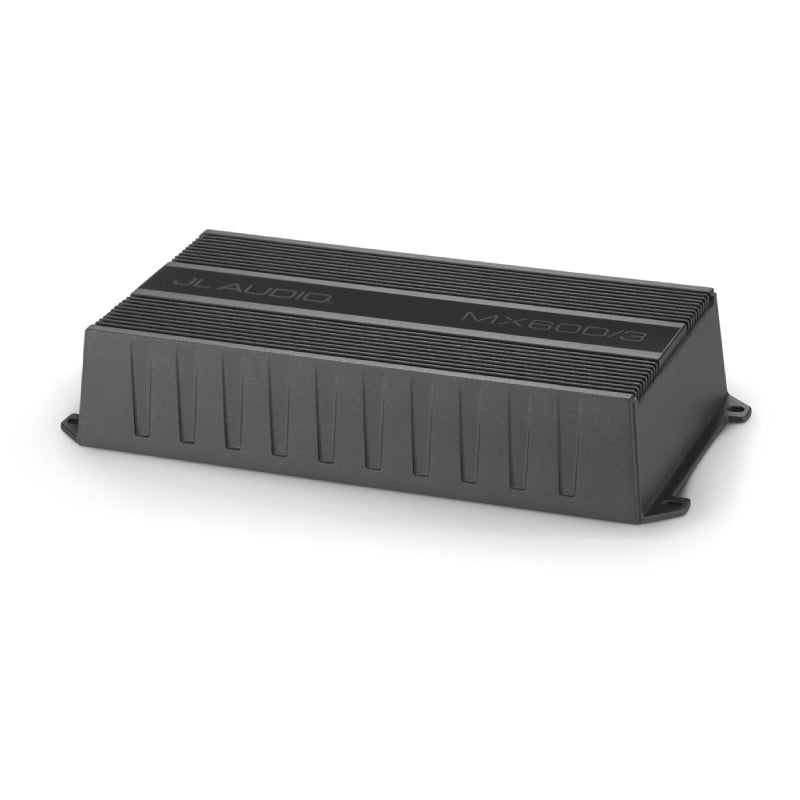

JL Audio Marine amplifier MX600/3

JL Audio MX600/3 MX Series 3-Channel 100W RMS x 2 + 400W RMS x 1 at 2 Ohms, Class-D Marine Amplifier

We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• MX Series 3-Channel Class-D Marine Amplifier
• MX amplifier with power/signal pigtails
• (4) 1-inch self-tapping screws
• Owner's Manual





Unmatched Durability and Powerful Sound for Your Powersports Audio System

Discover exceptional durability with a corrosion-resistant cast aluminum housing and an IPX7 water-resistance rating, making it perfect for powersports. Enjoy powerful subwoofer performance with 400 watts dedicated to your system, along with onboard filters that feature a 12 dB/octave high-pass crossover for the main channels and a 24 dB/octave low-pass crossover for the subwoofer. Plus, the bass boost EQ enhances low-frequency performance for a richer, more immersive sound experience.

Transform Your Audio Experience with Precision and Durability

Elevate your audio experience with a variable infrasonic filter for precise tuning and a subwoofer output polarity switch for optimal phase alignment. The dual-range input section accommodates everything from line-level to high-power signals, while the rugged powder-coated finish and gasketed control cover ensure exceptional durability. Plus, stainless steel hardware provides corrosion resistance and longevity for reliable performance on all your adventures.

Unleash Superior Sound with NexD™ Switching Technology

Experience the MX600/3 Amplifier, equipped with NexD™ Switching Technology for exceptional audio quality and efficiency in a compact design. Engineered for powersports, it delivers clean, powerful sound with minimal distortion and rock-solid bass performance, ensuring your audio experience reaches new heights on any adventure.

SPECIFICATIONS

Number of Channels : 3

Frequency Response : 20-20000 Hz

Amplifier Class : D

Fuse Rating : 1x50 A

Promo : Yes

FEATURES

Features:

Power Output: 100 W x 2 + 400 W x 1 @ 2 Ω; 75 W x 2 + 250 W x 1 @ 4 Ω (14.4V).
NexD™ Switching Design: Delivers clean power without straining charging systems.
Durable Construction: Corrosion-resistant cast aluminum housing with an IPX7 water-resistance rating, ideal for powersports applications.
Potent Subwoofer Power: Provides 400 watts dedicated for subwoofer systems.
Onboard Filters: Includes a 12 dB/octave high-pass crossover for main channels and a 24 dB/octave low-pass crossover for the subwoofer channel.
Bass Boost EQ: Enhances low-frequency performance for a richer sound experience.
Variable Infrasonic Filter: Allows precise tuning for improved sound quality.
Subwoofer Output Polarity Switch: Ensures optimal phase alignment for better audio performance.
Dual-Range Input Section: Accepts a wide range of input voltage levels, from line-level to high-power speaker level signals.
Rugged Finish: Features a powder-coated exterior for enhanced durability and a gasketed cover for control protection.
Stainless Steel Hardware: Provides added corrosion resistance and longevity for reliable performance.


Specifications:

RMS Power Output (Watts x Channels): 75 x 2; 400 x 1
Peak Power Output (Watts x Channels): N/A
Power at 2 Ohms (Watts x Channels): 100 x 2
Power at 1 Ohm (Watts x Channels): ---
Bridged Power (Watts x Channels): 200 x 1
Minimum Impedance Bridged: 4 Ω
Minimum Impedance Unbridged: 2 Ω
Minimum Impedance: 2 Ω
Best Frequency Response: 20-20 kHz
THD at Rated RMS Power: 1%
Signal to Noise Ratio: 88 dB
Input Voltage: 14.4V
Amplifier Class: D
Low-Pass Crossover Frequency: 40-400 Hz
Low-Pass Slope (dB/octave): 24 dB/octave
High-Pass Crossover Frequency: 35-300 Hz
High-Pass Slope (dB/octave): 12 dB/octave
Bass Boost: 0-12 dB
Bass Boost Frequency: 43 Hz
Fan Cooled: No
Fuse Rating: 50A
Speaker Level Inputs: Yes
Preamp Outputs: No
Width (inches): 9-3/8
Height (inches): 1-13/16
Depth (inches): 4-1/2

UPC: 699440984096
Weight: 7
