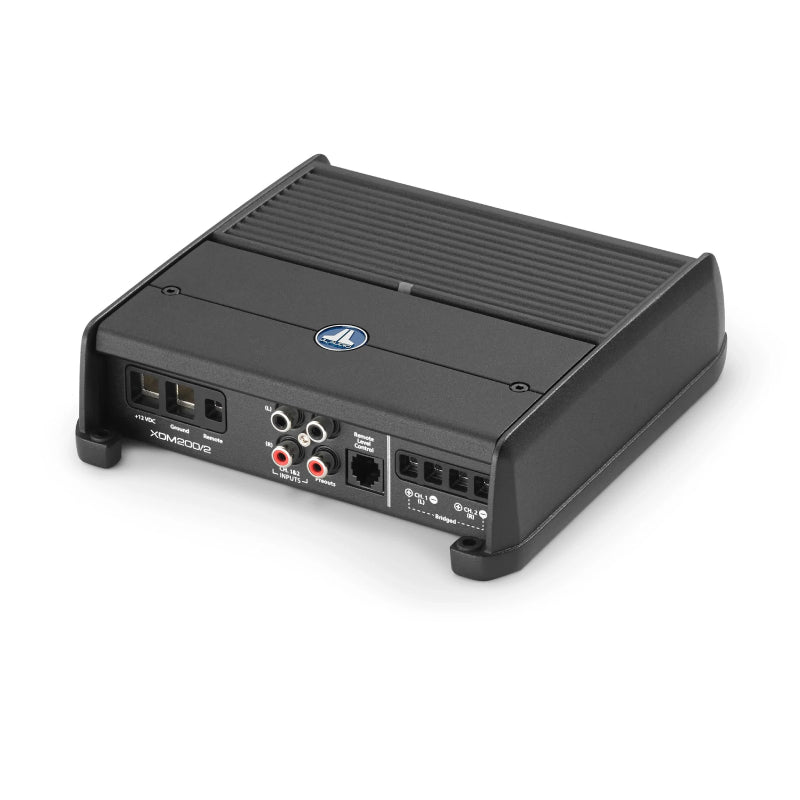

JL Audio Marine amplifier XDM Series XDM200/2

JL Audio XDM200/2 XDM Series 2-Channel 100W RMS x 2 at 2 Ohms, Class-D Full Range Car/Marine Amplifier with NEXD™ Switching Technology

We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• XDM Series 2-Channel Class-D Full Range Car/Marine Amplifier
• 2.5 mm Allen wrench
• JL Audio badge
• Owner's Manual





Hear the Difference!

Experience fidelity for all and crystal-clear audio in your boat or car with the xdm amplifier's exclusive dual-mode input filter and differential-balanced inputs for outstanding noise rejection, while the NEXD™ equipped advanced switching technology delivers reliable high-power output from a compact chassis by reducing current draw and heat, all benefiting from studio-grade signal processing featuring audiophile-grade, fully variable filters and calibrated potentiometers beneath a sealed security cover.

Uninterrupted Power and Built to Last!

With ADVANCED ROLLBACK PROTECTION, our innovative circuit design ensures the amplifier will never shut down due to thermal overload, keeping your music playing even under the most demanding conditions, all while offering flexible AUTO TURN-ON CAPABILITIES (via auto signal sensing, auto DC-offset sensing, or conventional +12 volt turn-on lead), and a BUILT TOUGH all-aluminum, powder-coated housing that inhibits corrosion and features a sealed security cover to protect controls from the elements.

Power Your Entire System!

Our amplifier line offers complete flexibility, featuring FULL-RANGE STEREO variants available in 2, 4, 6, and 8 channels, specialized SYSTEM AMPLIFIERS with 3 models that power a whole system using 2 or 4 full-range outputs plus a dedicated subwoofer output, robust MONOBLOCK options with 300, 600, and 1000 watts, and versatile 24-VOLT OPTIONS available in XDM600/6-24V and XDM800/8-24V channel variants.

SPECIFICATIONS

Low Frequency Response : 50-500 Hz

High Frequency Response : 50-500 Hz

Number of Channels : 2

Frequency Response : 12-22000 Hz

Built In Crossovers : Yes

RMS Power Output : 2x100 Watts

Amplifier Class : D

Fuse Rating : 20 A

FEATURES

Features:

FIDELITY FOR ALL: Our exclusive dual-mode input filter and differential-balanced inputs result in outstanding noise rejection and crystal-clear audio performance in boats or cars.
EQUIPPED WITH NexD™: Advanced switching technology for exceptional efficiency reduces current draw and heat, permitting reliable high-power output from a compact and easy-to-install chassis.
STUDIO-GRADE SIGNAL PROCESSING: Beneath every XDM amplifier’s sealed security cover, you’ll find audiophile-grade signal processing with fully variable filters and calibrated potentiometers.
ADVANCED ROLLBACK PROTECTION: Innovative circuit design ensures the amplifier will never shut down due to thermal overload and keeps the music playing, even under the most demanding conditions.
AUTO TURN-ON CAPABILITIES: Choose from 3 options: auto signal sensing with +12-volt remote out; auto DC-offset sensing with +12-volt remote out; or conventional +12 volt turn-on lead.
BUILT TOUGH: The all-aluminum, powder-coated housing inhibits corrosion, and a sealed security cover protects controls from the elements.
FULL-RANGE STEREO: These amplifiers are available in 2, 4, 6 and 8 channel variants.
SYSTEM AMPLIFIERS: There are 3 models to power a whole system with 2 or 4 full-range outputs plus a subwoofer output.
MONOBLOCK: Three models are available with 300, 600 and 1000 watts.
24-VOLT OPTIONS: These amplifiers are available in 6 and 8 channel variants.


Specifications:

RMS Power Output (Watts x Channels): 75 x 2
Peak Power Output (Watts x Channels): ---
Power at 2 Ohms (Watts x Channels): 100 x 2
Power at 1 Ohm (Watts x Channels): ---
Bridged Power (Watts x Channels): 200 x 1
Minimum Impedance Bridged: 4
Minimum Impedance Unbridged: 2
Best Frequency Response: 12Hz–22k Hz
THD at Rated RMS Power: 1%
Signal to Noise Ratio: 104 dB
Input Voltage: 14.4v
Amplifier Class: D
Built-in DSP: No
Remote Control: Optional
Low-Pass Crossover Frequency: 50–500 Hz
Low-Pass Slope (dB/octave): 12 dB/octave
High-Pass Crossover Frequency: 50–500 Hz
High-Pass Slope (dB/octave): 12 dB/octave
Bass Boost: No
Bass Boost Frequency: N/A
Fan Cooled: No
Fuse Rating: 20
Speaker Level Inputs: Yes
Preamp Outputs: 2
Width (inches): 6-7/8
Height (inches): 2
Depth (inches): 7-1/8

UPC: 699440986793
Weight: 5
