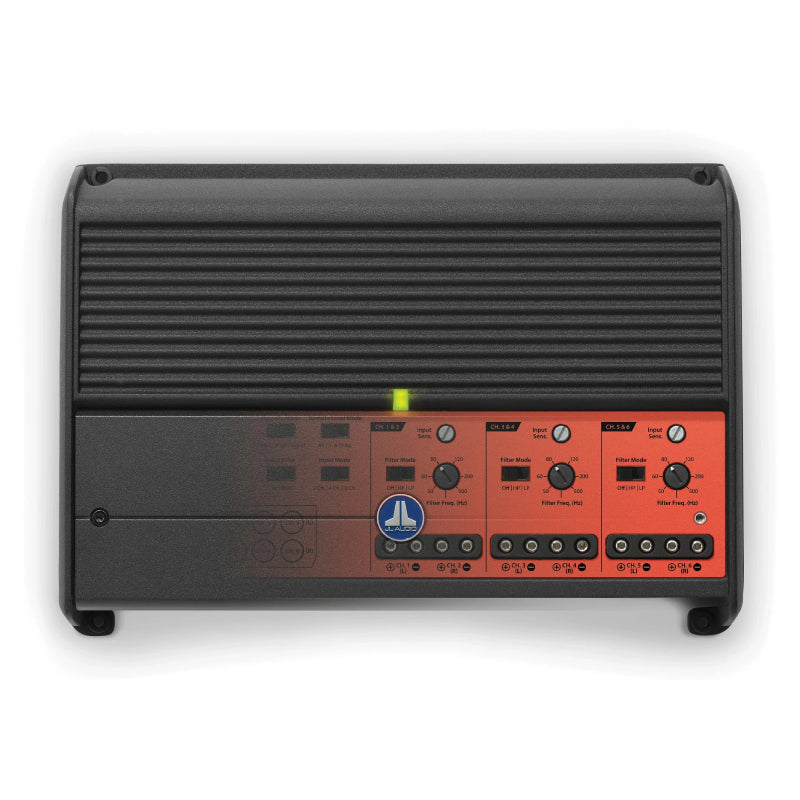

JL Audio Marine amplifier XDM600/6-24V

JL Audio XDM600/6-24V XDM Series 6-Channel 100W RMS x 6 at 2 Ohms, Class D Full-Range Car/Marine Amplifier for 24V Systems with with NEXD™ Switching Technology

We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• XDM Series 6-Channel Class D Full-Range Car/Marine Amplifier
• XDM amplifier
• 2.5 mm Allen wrench
• JL Audio badge
• Owner's Manual

Unleash Powerful, High-Fidelity Sound with Our Compact Marine & Car Amplifier

Elevate your car or marine audio system with our amplifier, delivering powerful, high-fidelity sound with up to 200 W RMS per channel, a wide frequency response from 12 Hz to 22 kHz, and ultra-low distortion. Enjoy flexible control with customizable filter settings, remote level control options, and seamless integration with a variety of setups, all housed in a sleek, compact design built for durability. Perfect for discerning audio enthusiasts, this amplifier ensures exceptional performance and reliability, whether you're on the road or on the water.

Advanced NexD™ Technology

Experience unmatched power and versatility with our 6-Channel Class D Full-Range Amplifier, delivering 100 W x 6 at 2 Ω for 24V systems, featuring advanced NexD™ technology for ultra-efficient, low-distortion performance. Whether configured for a 6-channel setup, bridged for a 4-channel option, or driving subwoofers and satellites, this marine-grade amplifier offers the durability and noise-free performance you need for both boats and cars.


Enhance Your Sound with Our Sleek, Customizable 24V Class D Amplifier

Upgrade your audio experience with a sleek, black powder-coated amplifier featuring 12 dB/octave filters and customizable sound options, all protected by a gasketed, removable top cover. Enjoy easy adjustments with optional remote level controllers, seamless integration with automatic turn-on capability, and reliable performance specifically engineered for 24V, negative-ground systems—ensuring both durability and optimal sound quality.

SPECIFICATIONS

Low Frequency Response : 50–500 Hz

High Frequency Response : 50–500 Hz

Number of Channels : 6

Frequency Response : 12-22000 Hz

Built In Crossovers : Yes

RMS Power Output : 6x100 Watts

Amplifier Class : D

Fuse Rating : 30 A

FEATURES

Features:

Powerful Performance: The 6-Channel Class D Full-Range Amplifier delivers 100 W x 6 at 2 Ω and 75 W x 6 at 4 Ω, offering powerful performance for 24V systems.

Advanced Technology: Featuring NexD™ high-speed switching technology, this amplifier ensures full bandwidth Class D operation with extremely low distortion and high efficiency.

Versatile Configuration: The amplifier offers versatile configuration options, including a 6-channel setup, a 4-channel bridgeable option, or the ability to drive two subwoofers and satellites.

Marine-Grade Durability: Built with marine-grade materials, this amplifier is designed for durability in harsh environments, with a dual-mode input filter for noise-free performance in both boats and cars.

Sleek and Protected Design: A sleek black powder-coat finish with a gasketed, removable top cover protects the controls, while 12 dB/octave filters and variable cutoff frequency selection enhance sound customization.

Remote Level Control Compatibility: The amplifier is compatible with optional HD-RLC or MHD-RLC remote level controllers for easy adjustment of amplifier channels from the driver's seat or cockpit.

Seamless Integration: Designed for seamless integration, this amplifier includes automatic turn-on capability via signal sensing or DC-offset sensing, making it ideal for factory system upgrades.

24V System Specific: Specifically engineered for 24V, negative-ground electrical systems, this amplifier is not suitable for use with positive ground or other voltage systems to avoid damage and warranty voiding.


Specifications:
Power Specifications

Rated Continuous (RMS) Power @ 28.8 V:

75 W RMS x 6 @ 4 Ω
100 W RMS x 6 @ 2 Ω
200 W RMS x 3 Bridged @ 4 Ω

Rated Continuous (RMS) Power @ 25 V:

60 W RMS x 6 @ 4 Ω
90 W RMS x 6 @ 2 Ω
180 W RMS x 3 Bridged @ 4 Ω


General Specifications

Frequency Response: 12 Hz - 22 kHz (+0, -1 dB)
Signal-to-Noise Ratio (S/N), Referred to Highest Rated Power: >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Signal-to-Noise Ratio (S/N), Referred to 1 W: >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω: >150 @ 50 Hz
Damping Factor @ 2 Ω: >75 @ 50 Hz
THD+N @ Rated Power: <1% @ 2 Ω per channel
Input Voltage Range @ RCA Inputs: 200 mV - 4 V RMS
Minimum Copper Power/Ground Wire Gauge: 4 AWG wire
Fuse Rating: 50 A (AFS, AGU, or MaxiFuse™)


Signal Processing

Filter Modes: Low-Pass or High-Pass
Filter Slopes: 12 dB/octave
Filter Frequency Range: 50 Hz - 500 Hz
Detented, Calibrated Filter Frequency Potentiometers: Yes
Filter Defeat Function: Yes
Remote Level Control: Optional HD-RLC or MHD-RLC (water-resistant)
Remote Level Modes: 2, 4, or All Channels
Channel Input Mode Switch: Yes (2/4/6 channels)
Pass-Through Preamp Output: None
Source Channel Selection for PreOuts: N/A


Physical Specifications

Height (H): 2.05 in / 52 mm
Width (W): 10.23 in / 260 mm
Depth (D): 7.09 in / 180 mm

UPC: 699440986885
Weight: 5
