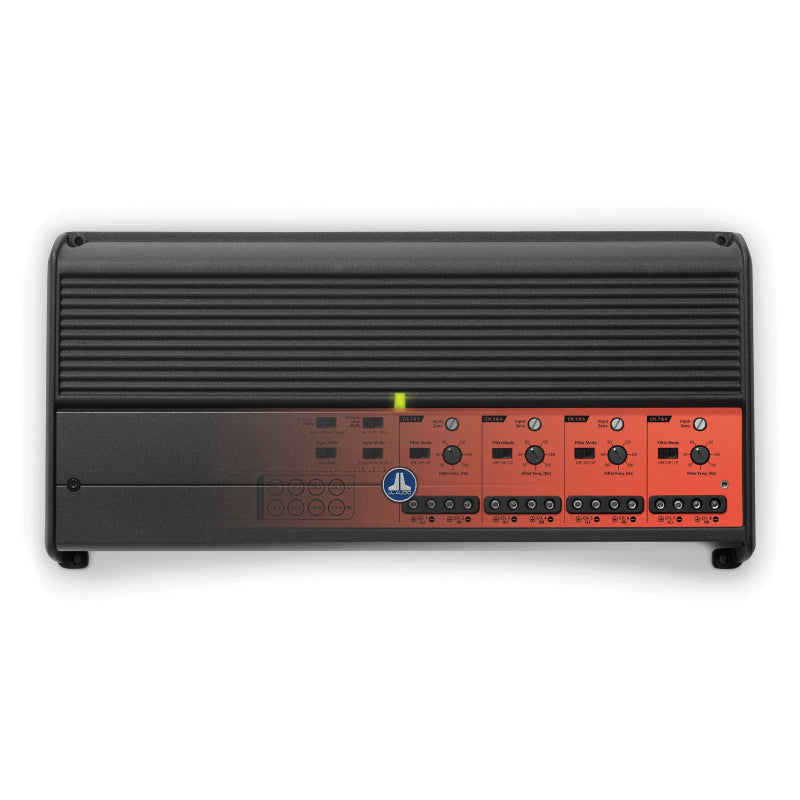

JL Audio Marine amplifier XDM Series XDM800/8-24V

JL Audio XDM800/8-24V XDM Series 8-Channel 100W RMS x 8 at 2 Ohms, Class D Full-Range Car/Marine Amplifier for 24V Systems with NEXD™ Switching Technology

We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• XDM Series 8-Channel Class D Full-Range Car/Marine Amplifier
• Owner's Manual

Elevate Your Audio with the Ultimate 8-Channel Class D Amplifier

Experience powerful and precise audio performance with our 8-Channel Class D Full-Range Amplifier, delivering up to 200 W RMS per channel with ultra-low distortion, a wide frequency response from 12 Hz to 22 kHz, and versatile filter options. Designed for seamless integration into your 24V system, this amplifier features advanced signal processing, exceptional noise reduction, and a sleek, compact design—ensuring both durability and superior sound quality for your car or marine audio setup.

Advanced NexD™ Technology

Unleash unparalleled audio power and flexibility with our 8-Channel Class D Amplifier, delivering 100 W x 8 at 2 Ω or 75 W x 8 at 4 Ω using cutting-edge NexD™ technology for superior efficiency and minimal distortion. Engineered with marine-grade durability, it's perfect for both car and boat setups, offering versatile configurations to match your exact audio needs, whether driving multiple speakers, subwoofers, or a combination of both.


Top-Tier Performance And Durability

Elevate your audio system with our 8-Channel Amplifier, featuring advanced signal processing with customizable 12 dB/octave filters, seamless integration with automatic turn-on capability, and remote level control compatibility for effortless adjustments from the driver's seat or cockpit. Designed with a sleek, protected finish and engineered specifically for 24V systems, this amplifier delivers top-tier performance and durability, making it the perfect upgrade for your car or marine audio setup.

SPECIFICATIONS

Number of Channels : 8

Frequency Response : 12-22000 Hz

Built In Crossovers : Yes

RMS Power Output : 8x100 Watts

Amplifier Class : D

Fuse Rating : 40 A

FEATURES

Features:

Powerful Performance: Delivers 100 W x 8 channels at 2 Ω or 75 W x 8 channels at 4 Ω, utilizing advanced NexD™ high-speed switching technology for low distortion and high efficiency.

Marine-Grade Durability: Built with marine-grade materials, ensuring long-lasting performance in harsh environments, suitable for both car and boat installations.

Versatile Configuration Options:

Eight-Channel Satellite Amp: Drive four pairs of speakers with 75 W x 8 @ 4Ω.

Big Four-Channel Satellite Amp: Bridge to produce 200W x 4 @ 4Ω.

Six-Channel System Amp: Drive front and rear satellites with 75 W x 4 @ 4Ω, plus two 4Ω subwoofers with 200 W each.

Staggered Six-Channel Satellite Amp: Drive front speakers with 200 W x 2 @ 4Ω, plus four 4Ω speakers with 75 W each.

Staggered Five-Channel Satellite Amp: Drive three front speakers with 200 W @ 4Ω + rear speakers with 75 W x 2.

Four-Channel System Amp: Drive left and right speakers with 200W x 2 @ 4Ω, plus two 4Ω subwoofers with 200W each.

Advanced Signal Processing: Features 12 dB/octave filters for each channel bank, configurable as low-pass or high-pass filters with variable cutoff frequency selection from 50-500 Hz.

Remote Level Control Compatibility: Compatible with optional HD-RLC or MHD-RLC (water-resistant) remote level controllers, allowing easy adjustment of amplifier channels directly from the driver's seat or cockpit.

Seamless Integration: Includes automatic turn-on capability via signal sensing or DC-offset sensing, ideal for factory system upgrades.

Protected Design: Features a sleek black powder-coat finish with a gasketed, removable top cover that protects controls while ensuring easy access.

24V System Specific: Exclusively designed for 24V, negative-ground electrical systems, ensuring safe operation and preventing damage or voided warranty.


Specifications:
Power Specifications

Rated Continuous (RMS) Power @ 28.8 V:

75 W RMS x 8 @ 4 Ω
100 W RMS x 8 @ 2 Ω
200 W RMS x 4 Bridged @ 4 Ω

Rated Continuous (RMS) Power @ 25 V:

60 W RMS x 8 @ 4 Ω
90 W RMS x 8 @ 2 Ω
180 W RMS x 4 Bridged @ 4 Ω


General Specifications

Frequency Response: 12 Hz - 22 kHz (+0, -1 dB)
Signal-to-Noise Ratio (S/N), Referred to Highest Rated Power: >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Signal-to-Noise Ratio (S/N), Referred to 1 W: >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω: >150 @ 50 Hz
Damping Factor @ 2 Ω: >75 @ 50 Hz
THD+N @ Rated Power: <1% @ 2 Ω per channel
Input Voltage Range @ RCA Inputs: 200 mV - 4 V RMS
Minimum Copper Power/Ground Wire Gauge: 4 AWG wire
Fuse Rating: 80 A (AFS, AGU, or MaxiFuse™)


Signal Processing

Filter Modes: Low-Pass or High-Pass
Filter Slopes: 12 dB/octave
Filter Frequency Range: 50 Hz - 500 Hz
Detented, Calibrated Filter Frequency Potentiometers: Yes
Filter Defeat Function: Yes
Remote Level Control: Optional HD-RLC or MHD-RLC (water-resistant)
Remote Level Modes: 2, 4, or All Channels
Channel Input Mode Switch: Yes (2/4/6/8 channels)
Pass-Through Preamp Output: None
Source Channel Selection for PreOuts: N/A


Physical Specifications

Height (H): 2.05 in / 52 mm
Width (W): 14.73 in / 374 mm
Depth (D): 7.09 in / 180 mm

UPC: 699440986892
Weight: 7
Authorized Internet Dealer




Warranty: 2 Year(s) Warranty.This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
