JP6 Jeep JP6

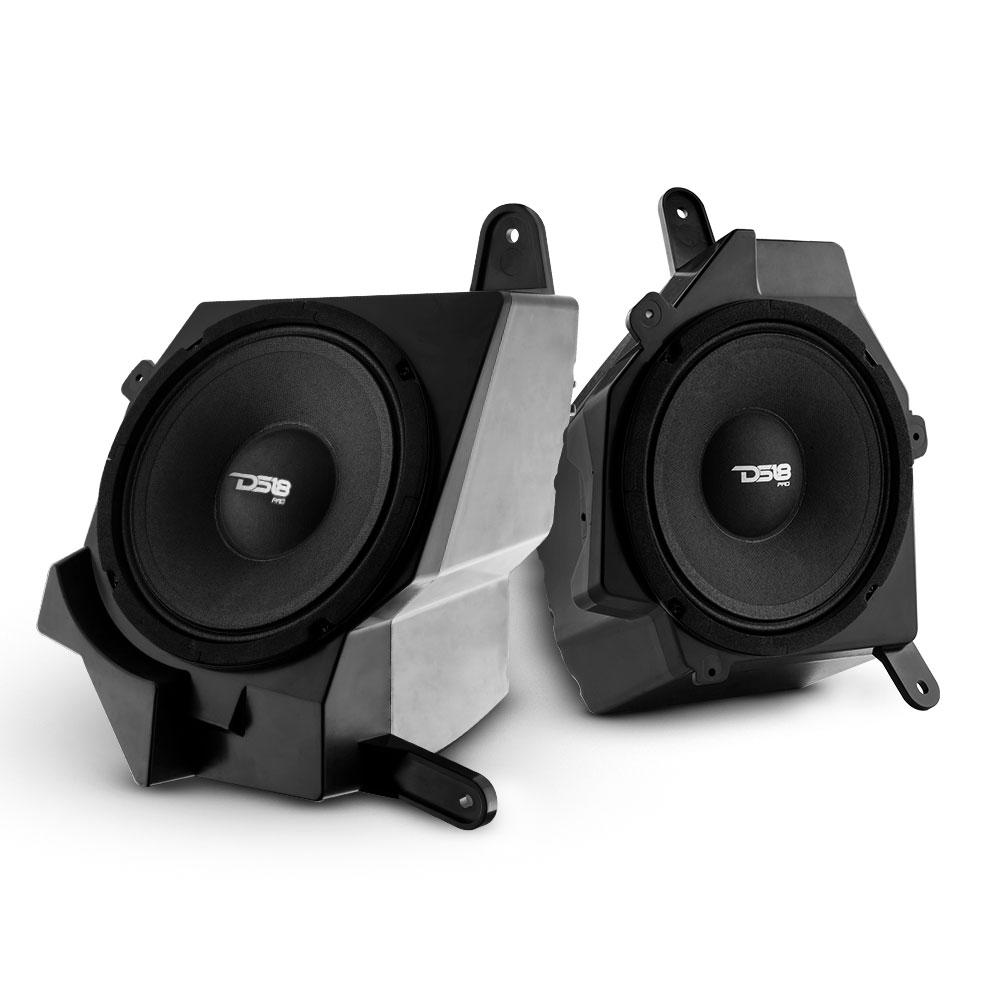

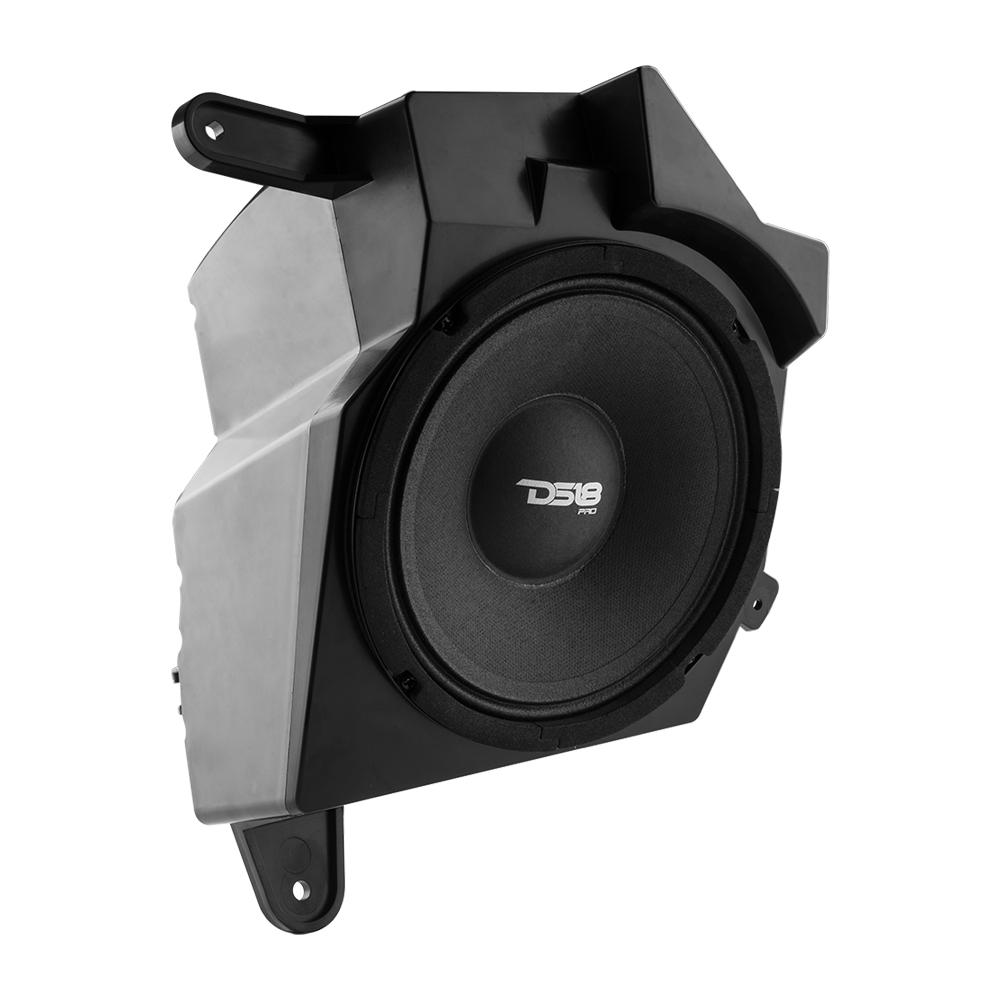

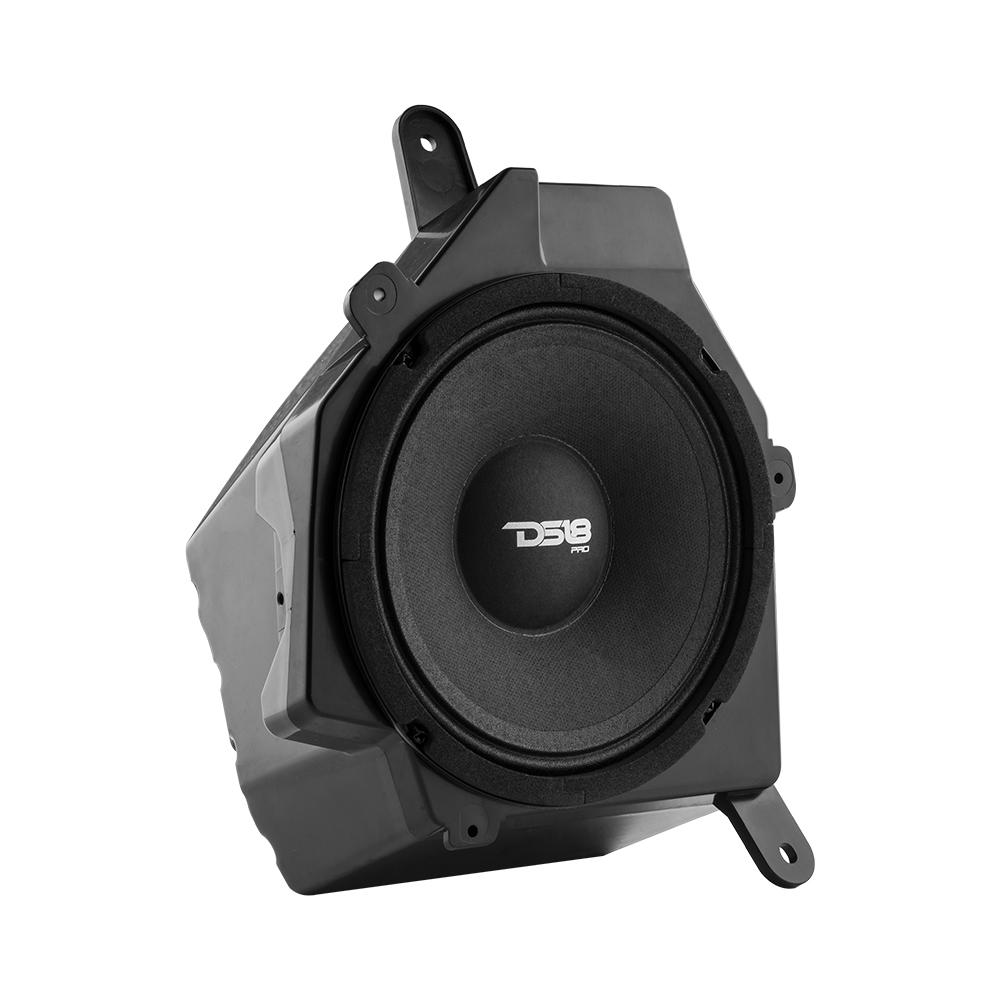

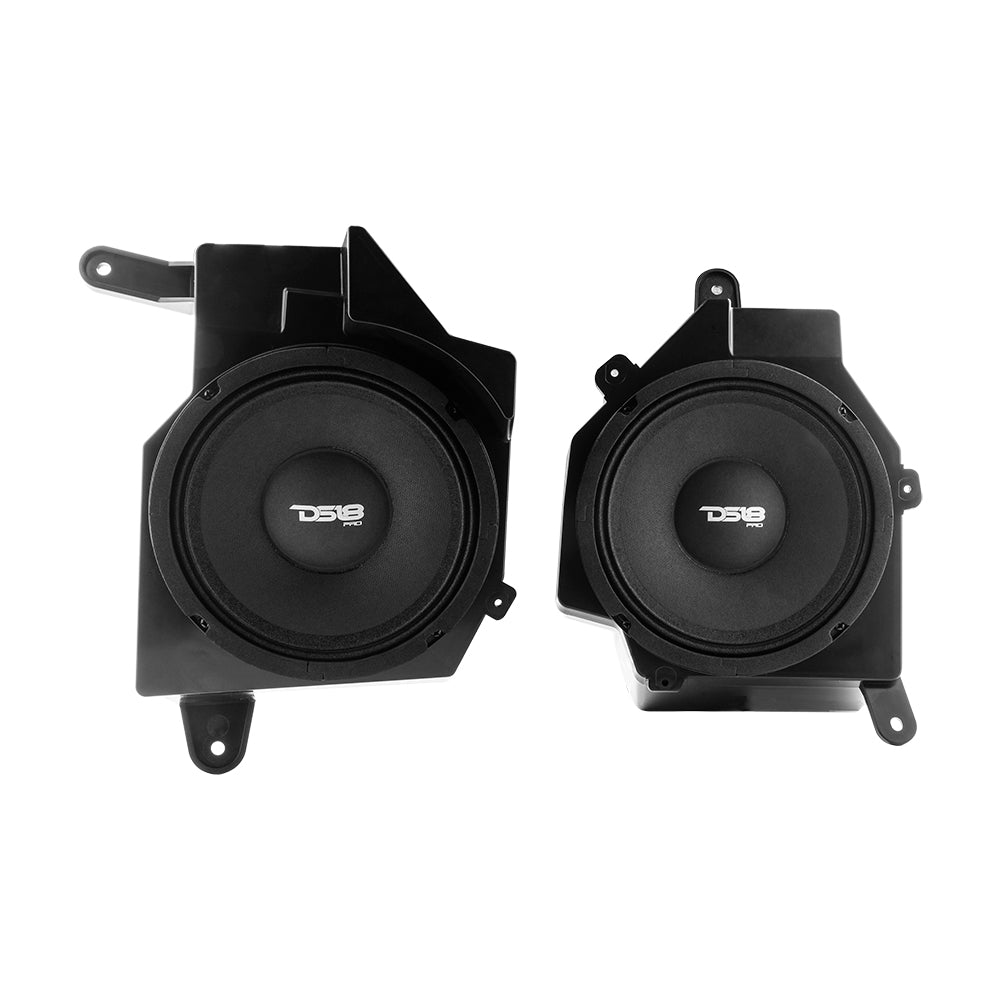

DS18 JP6 Plug and Play Dash Speakers Enclosure Pods Including 6.5" Neodymium Speakers Left and Right 300 Watts for JL/JLU,JT Gladiator Jeeps

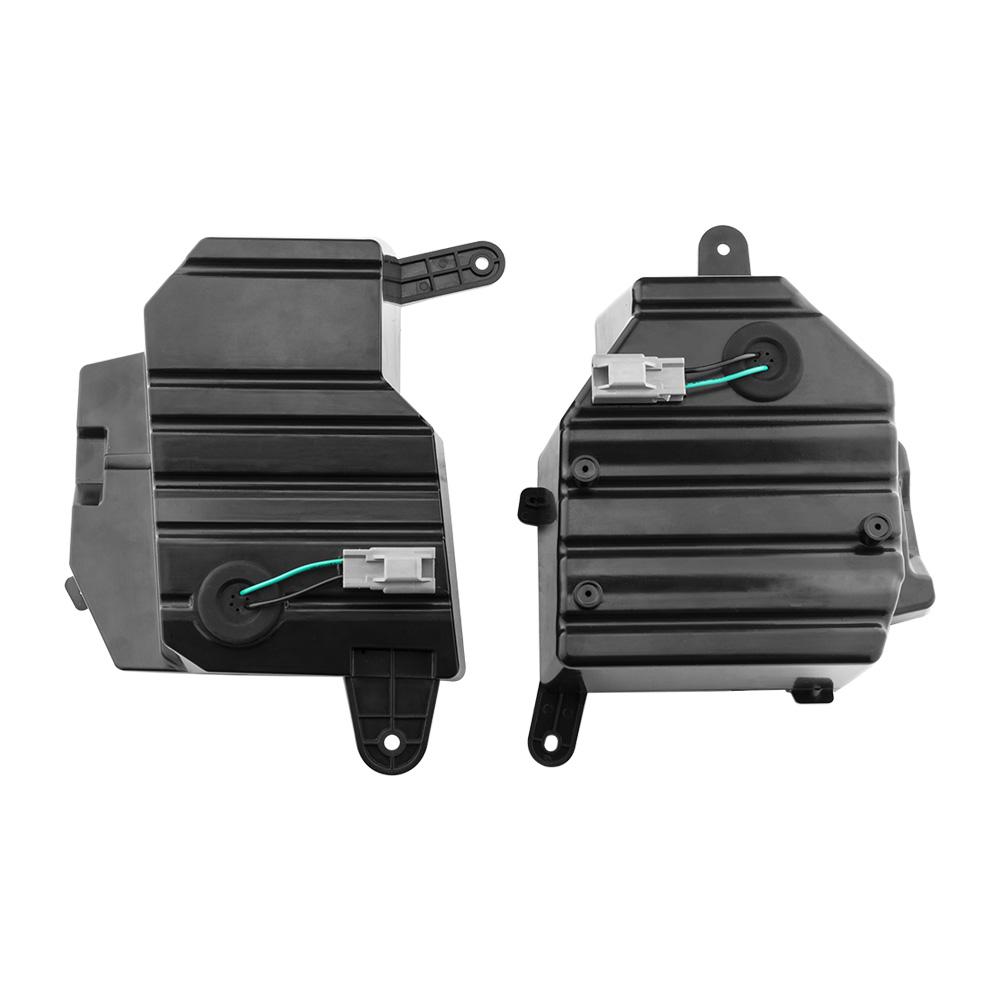

DS18 is proud to offer the only plug and play front speaker kit for the Jeep JL, JLU, and JT. This easy to install ensure comes with everything you need preassembled to get amazing sound out of your front stage with high powered DS18 Neodymium pro audio speakers! These 6.5 Neos are rated at 150w RMS and 300w peak power so you will get much more sound and clarity in just a few minutes of installation time. These plug right into your existing wiring harness and connections and can be powered easily by your factory amplifier. Alternatively, you can add an external amplifier for even more power and loudness!

Highlights

• True plug and play ensure only requiring some simple hand tools to install in less than 30 minutes for both.

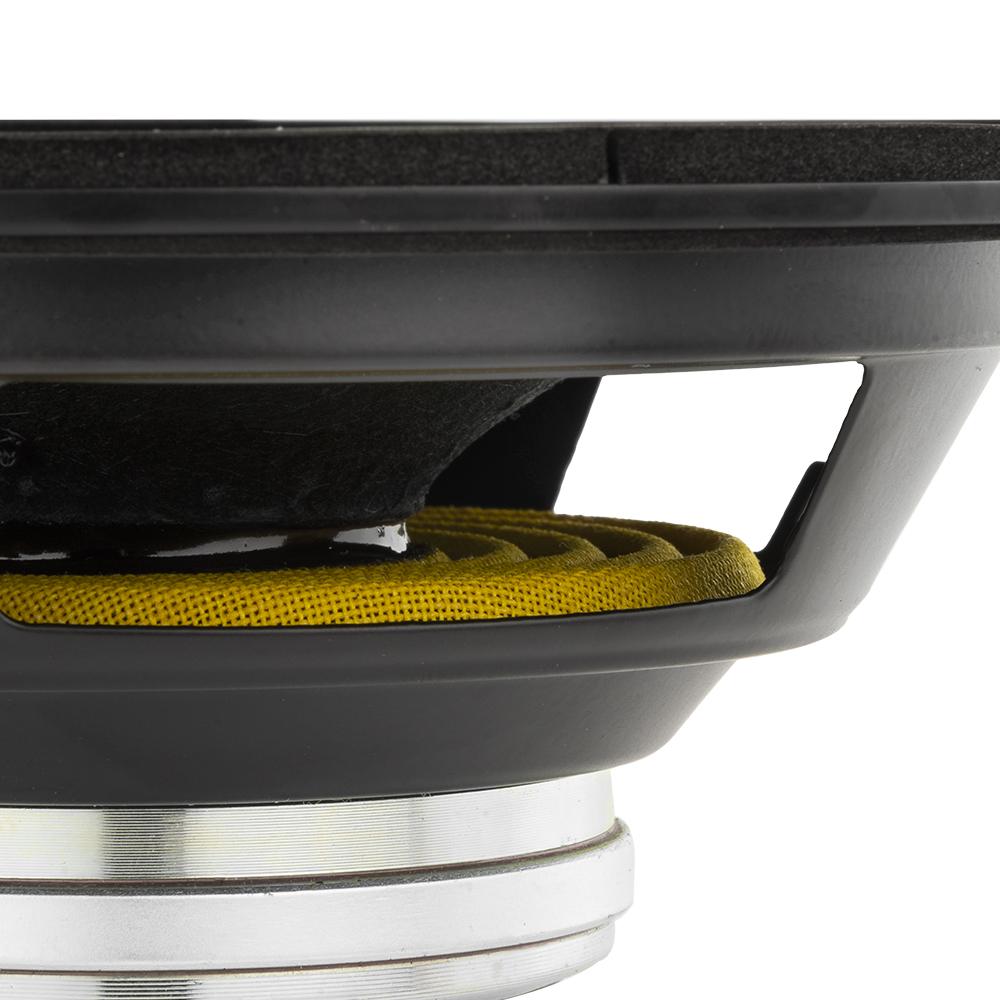

• DS18 Neodymium Pro audio 6.5 speakers included rated at 150w RMS and 300w Peak power for the loudest sound and highest wattage to decibel efficiency.
• Especially designed for Jeep JL, JLU, and JT plug and play installation.
• The units use the factory amplifier but alternatively can be powered for even more volume with an external amplifier.

Technical Details

                                                   JP6 Product Manual



Specifications
Nominal Diameter	6.5"
Nominal Impedance	4 Ohms
RMS Power Handling	150 Watts
MAX Power Handling	300 Watts
Sensitivity (1w/1m)	96 dB
Frequency Response	100Hz - 10KHz
Recommended HI Pass Crossover	120Hz
Motor
Voice Coil Diameter	1.5"
Voice Coil Former Material	Kapton
Winding Material	CCAW
Cone Material	Paper
Surround Material	Cloth
Basket Material	Steel
Magnet Material	Neodymium
Magnet Weight	3 Oz
Thiele & Small Parameters
Equivilant Volume	Vas 4.463 Ltr
Excursion (one way)	Xmax 1.5 mm
Free Air Resonance	Fs 138 Hz
Mechanical Factor	Qms 4.249
Electrical Factor	Qes 0.977
Total Factor	Qts 0.794
Mechanical Mass	Mms 7.166 gr
Mechanical Compliance	Cms 148.927 u/M/N
BL Factor	BL 4.767
Voice Coil Inductance	Le 0.08696mH
Cone Area	Sd 145 cm²
DC Resistance	Re 3.2 Ohms
Mechanical Mass w/o air	Mmd 6.159g
