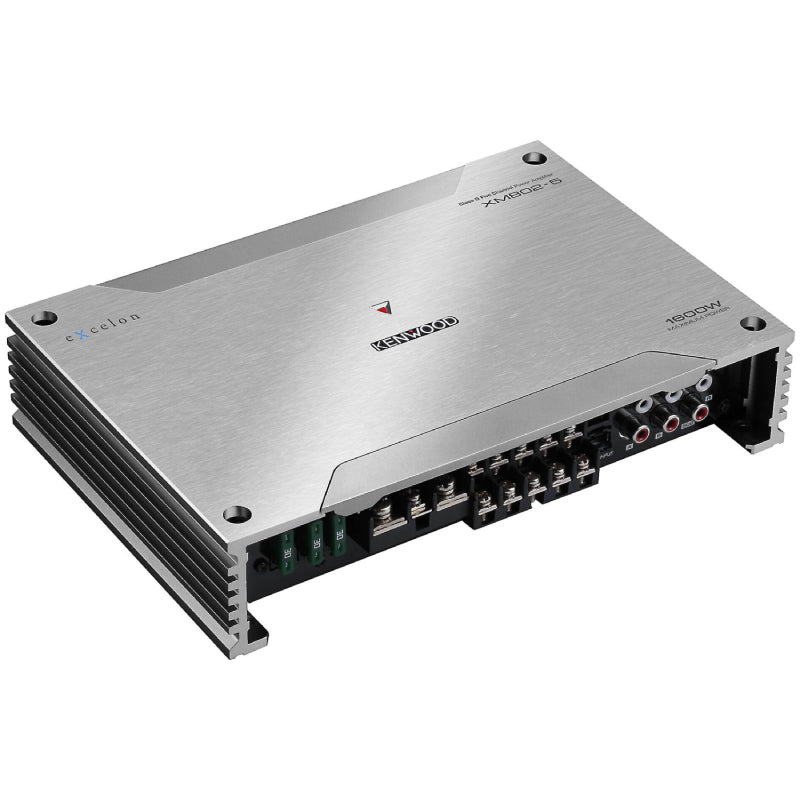

Kenwood Excelon Marine amplifier XM802-5

Kenwood Excelon X802-5 - Excelon Series 5-Channel 75W RMS x 4 at 2-Ohms + 5th Channel 500W RMS x 1 at 2-Ohms, Class D Powersports/Marine Amplifier

We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• 5-Channel amplifier
• (3) 30-amp ATC fuses (installed)
• Terminal cover (installed)
• Control panel cover (installed)
• (6) RCA input covers (installed)
• Speaker level input port cover (installed)
• Wired remote control port cover (installed)
• 7" Speaker level input harness
• (4) 5/8" Screws
• Owner's Manual

Rich and Immersive High-Resolution Audio

High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.

Output Coil with Magnetic Shield

Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.Detachable sliding terminal cover offers a sleek design and easier installation.All terminals and connections are on one side for easier installation and a cleaner look.Improved Signal to Noise Ratio

One-side Connection

All terminals and connections are on one side for easier installation and a cleaner look. Improved Signal to Noise Ratio

SPECIFICATIONS

Maximum Power : 1600 Watts

Low Frequency Response : 50-200 Hz

High Frequency Response : 50-200 Hz

Number of Channels : 5

Built In Crossovers : Yes

RMS Power Output : 75x4+500x1 Watts

Channel Separation : Yes

Amplifier Class : D

FEATURES

Specifications:

Class D 5-Channel Marine Power Amplifier
50W x 4 + 300W x 1 @ 4 ohms (RMS)
75W x 4 + 500W x 1 @ 2 ohms (RMS)
150W x 2 Bridged @ 4 ohms+ 500W x 1 @ 2 ohms (RMS)
Conformal Coated Circuit Board
Protective Terminal Cover
Stainless-Steel Mounting Screws
Signal Sensing Turn-On
Power MOS-FET Switiching Power Supply
Speaker Level Input w/Included Cable
Bass Boost 40Hz, 0-18dB – Sub
LP Crossover 50-200Hz 24dB – Sub
HP Rrossover 50-200Hz 12dB – A&B
Wired Remote Level Control Ready
(KCA-RC01A sold separately)
Dimensions: 9-3/4” x 2-1/16” x 6-5/8”

UPC: 0019048233851
Weight: 5
Authorized Internet Dealer




Warranty: 2 Year(s) Warranty.This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
