Kicker Car Subwoofer 41L7104
WOS Pick What these speakers do in 10 seconds — expand for full specs.
- BrandKicker
- SKU41L7104
- RMS750
- Ohms4
Mei says"Speakers are where the sound actually happens. Right size + power match = instant upgrade."
The stuff you'll actually notice
- RMS: 750.
Product description
The L7 stands alone as the most unique subwoofer on the market, with a cone shape that is exclusively designed to produce more output.
Pasmag Reviews the L7 Q-Class Subwoofer
I can recall a time as a schoolboy when we were studying geometry. I could not fathom how this was ever going to be useful to me in my life, but of course, it was and continues to be. Apparently the engineers at Kicker were paying attention in those classes too, because they have put a fundamental principle of geometry to good use. We learned, way back then, that a square of a given size will always have more area than that of a circle of the same dimension - exactly 27.33 percent more, regardless of the relative dimension. Read the full review here.

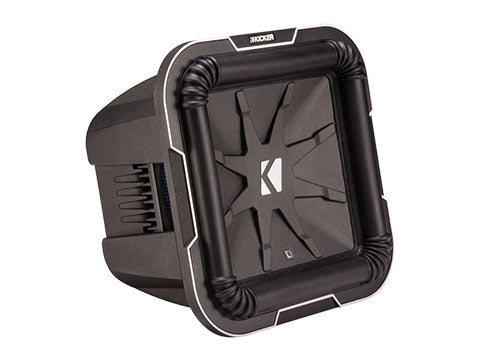

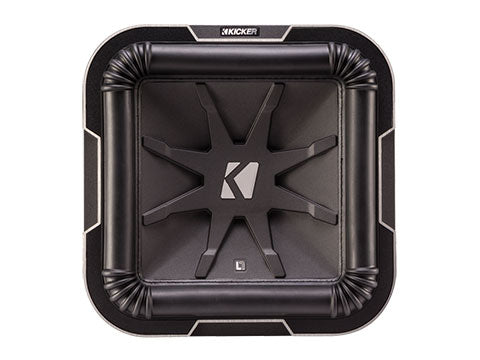

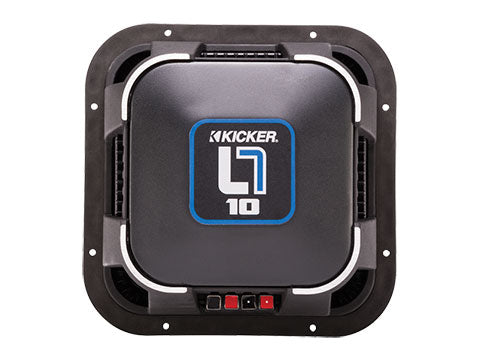

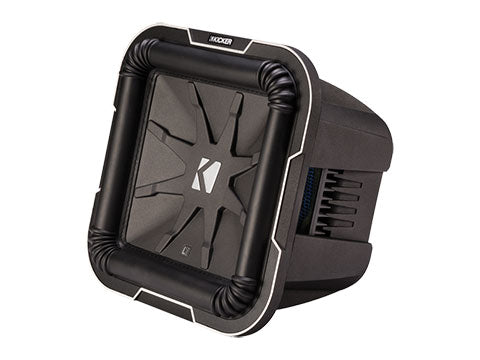

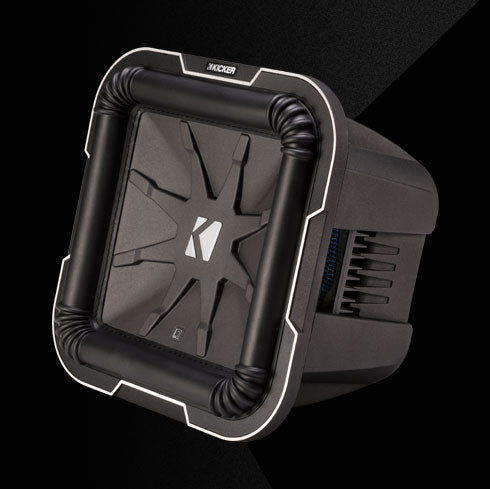

10" L7 4Ω Subwoofer
The KICKER L7™ Subwoofer again reaches new heights in technology and design, capturing the imaginations of 2015 CES® Innovation Award judges and solidifying itself as the crown jewel among industry subwoofers. For more than a decade, KICKER’s square woofer earned numerous awards including several CES accolades, and the 2015 version once again makes distinctive improvements on its way to another honor.
Specifications
| Rated Impedance [Ω] | 4 |
|---|---|
| Sensitivity [1W, 1m] | 85.9 |
| Frequency Response [Hz] | 24 - 100 |

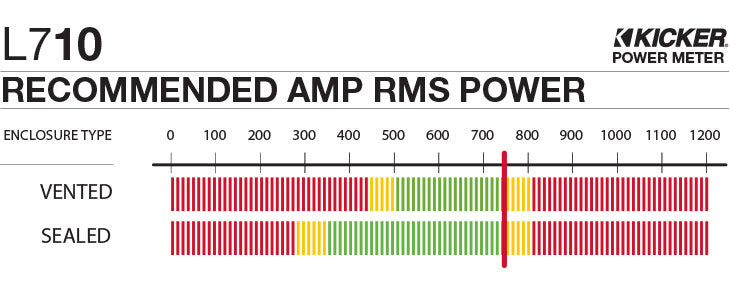

| Recommended Amplifier Power (watts RMS) | 750 |
| Outer Frame Dimension [in, cm] | 10-11/16, 27.2 |
| Mounting Depth [in, cm] | 6-7/8, 17.5 |
| Mounting Cutout [in, cm] | 9-5/16, 23.7 |
| Minimum Sealed Volume ft3 (L) | .8 (22.65) |
| Maximum Sealed Volume ft3 (L) | 1.25 (35.4) |
| Box Volume [ft³, L] | .8 (22.65) |
| Panel A [in, cm] | 13.5X13.5, 34.3X34.3 |
| Panel B [in, cm] | 13.5x9.5, 34.3x24.13 |
| Panel C [in, cm] | 12x9.5, 30.5x24.13 |
| Box Volume, ft³ (L) + port displacement | 1.25 (35.4) |
| Port Opening Size, in x in (cm x cm) | 2.5x11.25 (6.4x29) |
| Port Length, in (cm) | 19.75 (50) |
| Box Volume, ft³ (L) + port displacement | 2.25 (63.7) |
| Port Opening Size, in x in (cm x cm) | 3x11.25 (7.6x29) |
| Port Length, in (cm) | 18 (46) |
Speaker specs
| Speaker Size (Mid) | 10" |
|---|---|
| Impedance | 4 |
| RMS Power | 750 |
Build & install
Weather & environment
Vehicle fitment
| Model | 41L7104 |
|---|
Support & warranty
