Kicker Car Subwoofer 42CWQ122
The KICKER CompQ™ Subwoofer delivers on all of the power, capacity and performance of its square counterpart L7™, only utilizing a round basket and cone.
Pasmag Reviews the CompQ 12" Subwoofer
Earlier this year we had a look at the Kicker L7 square subwoofer, which is part of Kicker’s illustrious Q-Class product line. Adding to that Q-Class product is the CompQ series of woofers, which are a more traditional round shape, but include a lot of the leading edge engineering found in the Q-Class products. Read the full review here.

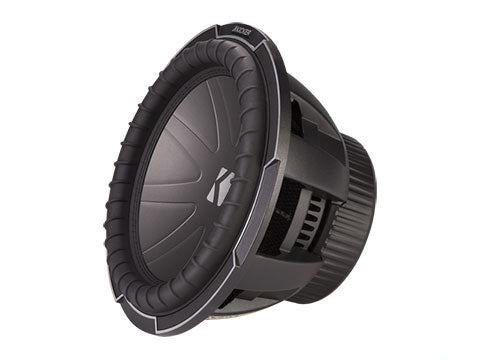

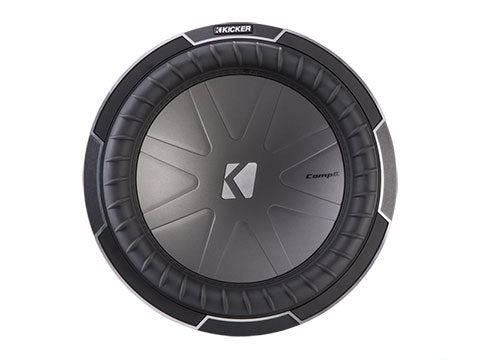

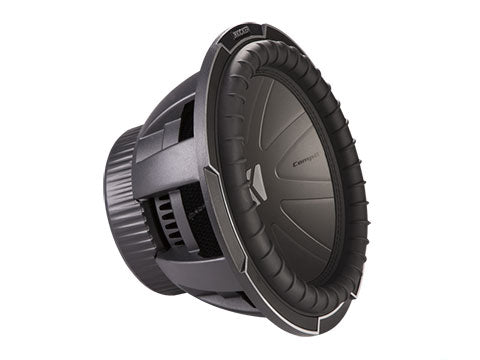

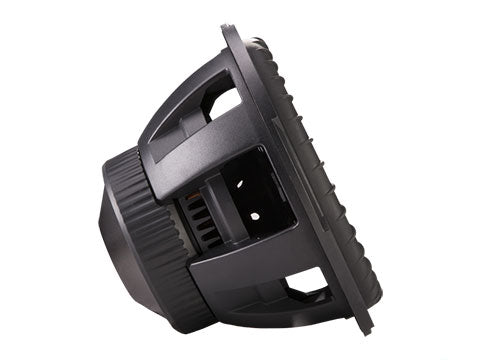

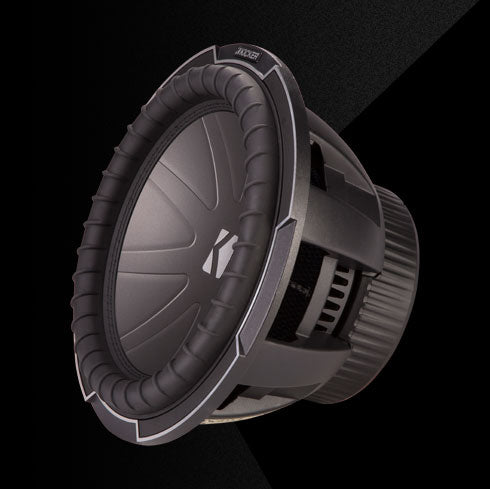

The 12" CompQ 2 Ohm
The CompQ 12-Inch Subwoofer is the best sound quality round driver we’ve ever made, with nearly identical construction and performance as our L7 square subs.
A cast aluminum frame provides an extremely stable, vibration-free base, so every note gets from the cone to your ears as pure as the day it was recorded.
The CompQ 12-Inch Subwoofer works best with a sealed or ported enclosure with 850 watts of recommended power. See below for more details.
Specifications
| Rated Impedance [Ω] | 2 |
|---|---|
| Sensitivity [1W, 1m] | 86.2 |
| Frequency Response [Hz] | 20 – 100 |

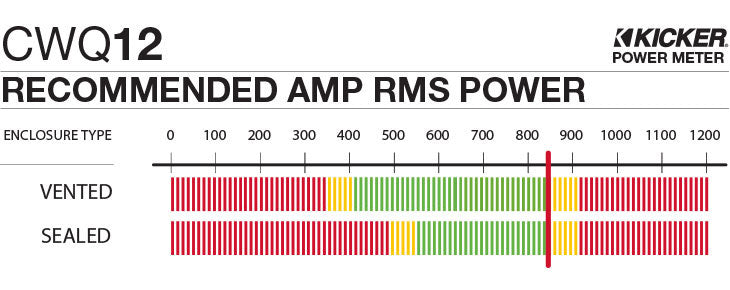

| Recommended Amplifier Power (watts RMS) | 850 |
| Outer Frame Dimension [in, cm] | 12-1/2, 31.8 |
| Mounting Depth [in, cm] | 7-1/8, 18.1 |
| Mounting Cutout [in, cm] | 11-1/16, 28.1 |
| Minimum Sealed Volume ft3 (L) | .88 (24.92) |
| Maximum Sealed Volume ft3 (L) | 2 (56.64) |
| Box Volume [ft³, L] | .88 (24.92) |
| Panel A [in, cm] | 13.5x13.5, 34.3x34.3 |
| Panel B [in, cm] | 13.5x10.5, 34.3x26.7 |
| Panel C [in, cm] | 12x10.5, 30.5x26.7 |
| Box Volume, ft³ (L) + port displacement | 1.75, 49.6 |
| Port Opening Size, in x in (cm x cm) | 2.5x13.25, 6.4x34 |
| Port Length, in (cm) | 22.5, 57 |
| Box Volume, ft³ (L) | 3.25, 92 |
| Port Opening, in x in (cm x cm) | 3x13.25, 7.6x34 |
| Port Length, in (cm) | 14.5, 37 |
