Kicker Car Subwoofer 44L7S122
The KICKER® Solo-Baric® L7S™ has a unique cone structure and heat dissipation system for outstanding power handling and unsurpassed clarity.
Square Matters
- Dual Two-Ohm Voice Coils
- Injection-Molded Polypropylene Cone
- Patented Corner Ribs Minimize Distortion
- SoloKon™ 360-Degree Back Bracing
- Ribbed Santoprene Surround With Blue Surround Stitching
- UniPlate™ Back Plate And Pole Piece, Plus Perimeter Venting For Excellent Thermal Management
- Thick Tinsel Leads
- Large Ceramic Magnet
- Cast Aluminum Basket
- Satin-Nickel Plated, Spring-Loaded Speaker Terminals
The Solo-Baric L7's highly-engineered motor structure and square sub design promises dependability when pushed to the limit, while dual voice coils with high-temp copper windings easily handle intense heat and power levels for clean, clear bass anytime.
Features:
Want setup help? Go to KICKER U for a free woofer & amplifier configuration app!
*The Solo-Baric L7S 12-Inch Subwoofer works best with a sealed or ported enclosure and 750 watts of recommended power. See below for more details.
Specifications
| CNC Software | L7S-L7R.DXF - for subwoofer hole cutouts |
|---|---|
| 3D Printing Software | L7S-L7R.SLDPRT - 3D-printing of grille spacers |
| Size (IN.,CM) | 12, 30.5 |
| Impedance (OHMS) | 2 DVC |

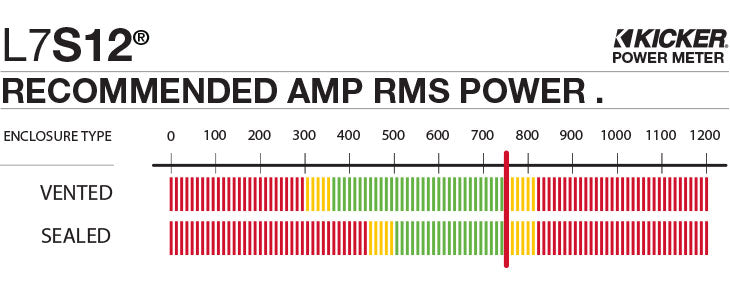

| Recommended Amplifier Power (watts RMS) | 750 |
| Peak Power (watts, per ANSI/CTA-2031-A) | 1500 |
| Sensitivity (dB 1w/1m) | 88.6 |
| Frequency Response (Hz) | 20-100 |
| Mounting Depth (IN.,CM) | 6-11/16, 16.9 |
| Mounting Cutout, Square (IN.,CM) | 11-1/16, 28.1 |
| Min Rec Sealed Box Volume (CU. FT., Liters) | 1.25, 35.4 |
| Max Rec Sealed Box Volume (CU. FT., Liters) | 2.0, 56.64 |
| Min Rec Vented Box Volume (CU. Ft., Liters)** | 1.75, 49.6 |
| Max Rec Vented Box Volume (CU. Ft., Liters)** | 3.25, 92.1 |
| What's in the box? | one 12-inch subwoofer, one owner's manual, two stickers |
