Kicker Car Subwoofer 44L7S154
The KICKER® Solo-Baric® L7S™ boasts massive power handling and more cone area than any circular sub. You move more air, so you get more bass.
Square Matters
- Dual Four-Ohm Voice Coils
- Injection-Molded Polypropylene Cone
- Patented Corner Ribs Minimize Distortion
- SoloKon™ 360-Degree Back Bracing
- Ribbed Santoprene Surround With Blue Surround Stitching
- UniPlate™ Back Plate And Pole Piece, Plus Perimeter Venting For Excellent Thermal Management
- Thick Tinsel Leads
- Large Ceramic Magnet
- Cast Aluminum Basket
- Satin-Nickel Plated, Spring-Loaded Speaker Terminals
The heavy-duty motor structure includes a large-diameter spider for less flex, longer life and superior accuracy. High-temp voice coil wire winding completes a powerful Comp motor that makes the most of every watt you give it.
Features:
Want setup help? Go to KICKER U for a free woofer & amplifier configuration app!

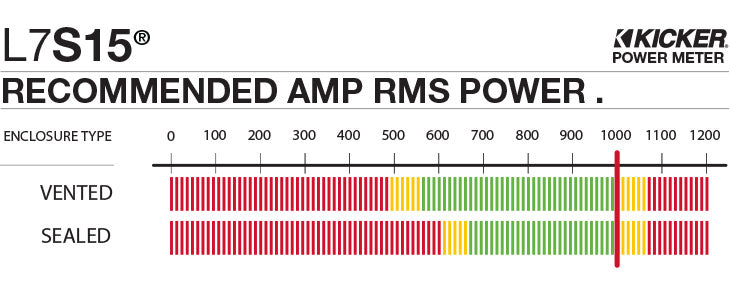

*The Solo-Baric L7S 15-Inch Subwoofer works best with a sealed or ported enclosure and 1,000 watts of recommended power. See below for more details.
Specifications
| CNC Software | L7S-L7R.DXF - for subwoofer hole cutouts |
|---|---|
| 3D Printing Software | L7S-L7R.SLDPRT - 3D-printing of grille spacers |
| Size (IN.,CM) | 15, 38.1 |
| Impedance (OHMS) | 4 DVC |
| Recommended Amplifier Power (watts RMS) | 1000 |
| Peak Power (watts, per ANSI/CTA-2031-A) | 2000 |
| Sensitivity (dB 1w/1m) | 89.4 |
| Frequency Response (Hz) | 18-100 |
| Mounting Depth (IN.,CM) | 8-11/16, 22.1 |
| Mounting Cutout, Square (IN.,CM) | 13-3/4, 34.9 |
| Min Rec Sealed Box Volume (CU. FT., Liters) | 2.0, 56.64 |
| Max Rec Sealed Box Volume (CU. FT., Liters) | 6.0, 169.9 |
| Min Rec Vented Box Volume (CU. Ft., Liters)** | 3.0, 85.0 |
| Max Rec Vented Box Volume (CU. Ft., Liters)** | 6.0, 169.9 |
| What's in the box? | one 15-inch subwoofer, one owner's manual, two stickers |
