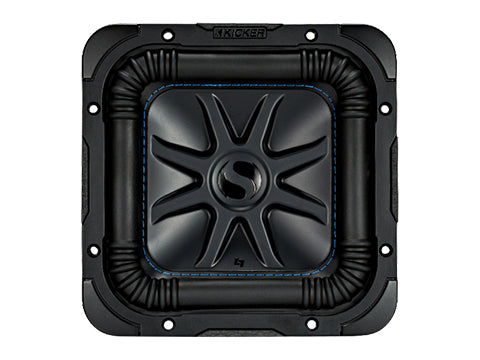

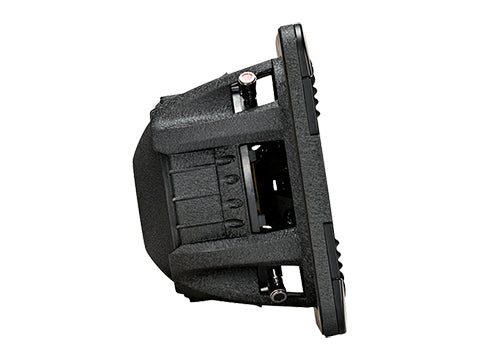

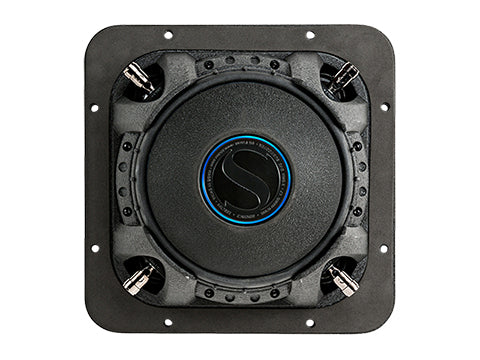

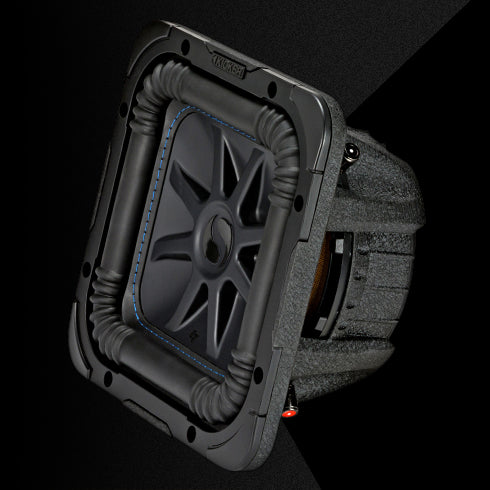

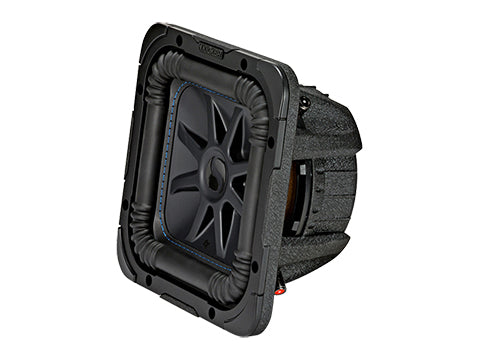

Kicker Car Subwoofer 44L7S84
The KICKER® Solo-Baric® L7S™ features cutting-edge technology for truly musical, distortion-free bass.
Square Matters
- Dual Four-Ohm Voice Coils
- Injection-Molded Polypropylene Cone
- Patented Corner Ribs Minimize Distortion
- SoloKon™ 360-Degree Back Bracing
- Ribbed Santoprene Surround With Blue Surround Stitching
- UniPlate™ Back Plate And Pole Piece, Plus Perimeter Venting For Excellent Thermal Management
- Thick Tinsel Leads
- Large Ceramic Magnet
- Cast Aluminum Basket
- Satin-Nickel Plated, Spring-Loaded Speaker Terminals
The Solo-Baric's cutting-edge, square-sub design means more cone area, more air displacement and more volume than a round woofer.
Features:
Want setup help? Go to KICKER U for a free woofer & amplifier configuration app!
*The Solo-Baric L7S 8-Inch Subwoofer works best with a sealed or ported enclosure and 450 watts of recommended power. See below for more details.
Specifications
| CNC Software | L7S-L7R.DXF - for subwoofer hole cutouts |
|---|---|
| 3D Printing Software | L7S-L7R.SLDPRT - 3D-printing of grille spacers |
| Size (IN.,CM) | 8, 20.32 |
| Impedance (OHMS) | 4 DVC |

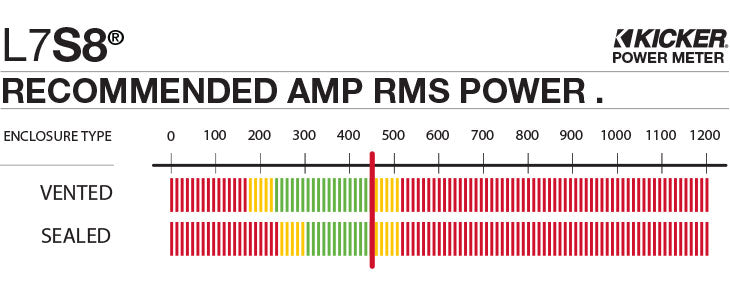

| Recommended Amplifier Power (watts RMS) | 450 |
| Peak Power (watts, per ANSI/CTA-2031-A) | 900 |
| Sensitivity (dB 1w/1m) | 83.6 |
| Frequency Response (Hz) | 28-100 |
| Mounting Depth (IN.,CM) | 4-3/4, 12.1 |
| Mounting Cutout, Square (IN.,CM) | 7-1/4, 18.4 |
| Min Rec Sealed Box Volume (CU. FT., Liters) | .5, 14.16 |
| Max Rec Sealed Box Volume (CU. FT., Liters) | .75, 21.24 |
| Min Rec Vented Box Volume (CU. Ft., Liters)** | .66, 18.6 |
| Max Rec Vented Box Volume (CU. Ft., Liters)** | 1.0, 28.3 |
| What's in the box? | one 8-inch subwoofer, one owner's manual, two stickers |
