Kicker Car Tweeters And 44QSC694

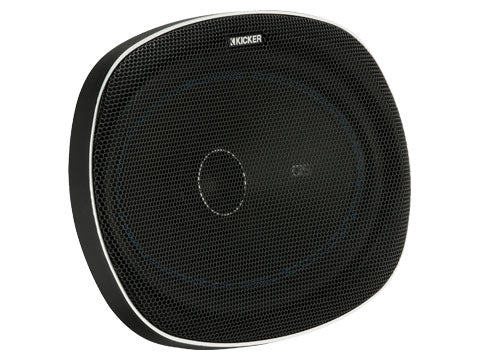

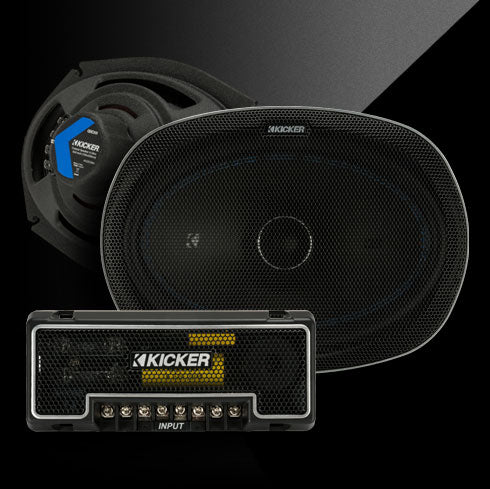

QSC Coaxial speakers are built to KICKER’s® highest acoustic standards. These 6x9-inch point source speakers feature neodymium magnets, and are bi-amp capable.
QS Series 6" x 9" Coaxials

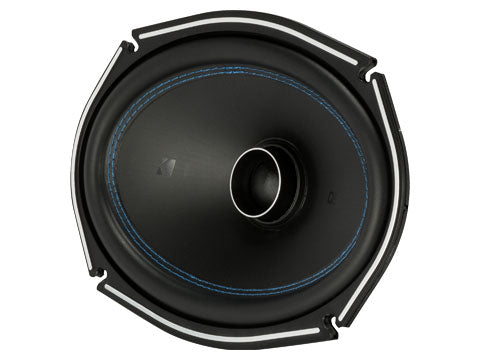

The QSC drivers includes a revolutionary 25mm Teteron® dome tweeter design and wave guide for smooth frequency response, while the carbon-fiber impregnated cone provides tight, accurate midrange. An NBR rubber surround provides superior damping and is complemented by KICKER’s signature blue double surround stitching.

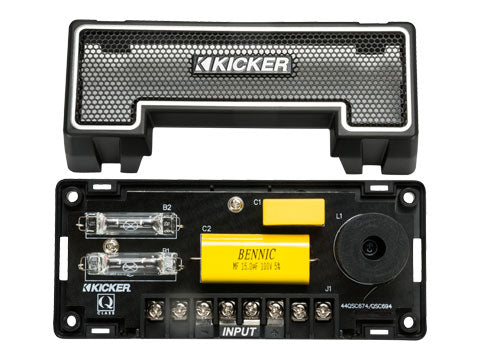

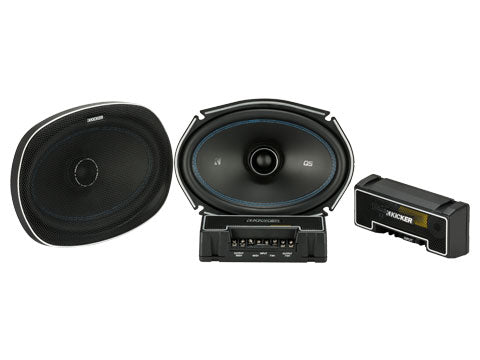

The 18dB crossover has been optimized for size, and features built-in tweeter protection. Utilizing Metallized Polypropylene capacitors, high-powered resistors and audiophile-grade air-core inductors, the crossover delivers outstanding overall sound quality and easy mounting in a door or under a seat.
These QSC speakers work best with 100 watts of recommended power. See below for more details. These QSC speakers work best with 100 watts of recommended power. See below for more details.

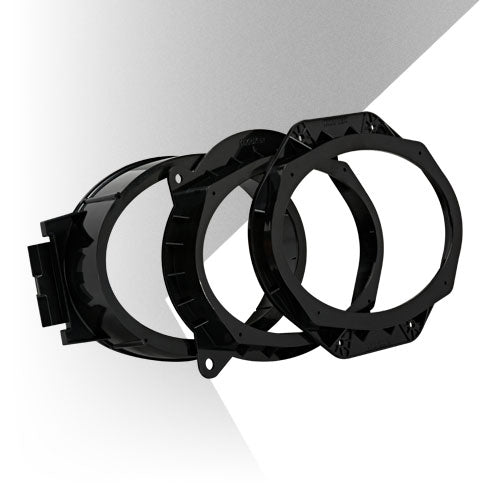

These speakers also include adaptor rings, allowing the speakers to be installed using factory speaker bolt holes:
Specifications
| Toyota | Tacoma |
|---|---|
| Toyota | Tundra |
| Ford | F150 |
| Ford | F250/F350 |
| Chevrolet/GMC | Colorado/Canyon |
| Chevrolet/GMC | Silverado/Sierra |
| Dodge | Ram 1500 |
| Dodge | Ram 2500/3500 |
| Woofer (in., mm) | 6x9, 160x230 |
| Tweeter (in., mm) | 1, 25 |
| Tweeter dome material | Teteron® |
| Rated Impedance [Ω] | 4 |
| Recommended Amplifier Power (watts RMS) | 100 |
| Peak Power (watts, per ANSI/CTA-2031-A) | 200 |
| Sensitivity [1W, 1m] | 88dB |
| Frequency Response [Hz] | 30-20k |
| Woofer Mounting Hole Diameter [in, mm] | 4-13/16x8-5/8, 121.9x219 |
| Woofer Mounting Depth [in, mm] | 3, 76.2 |
| High Pass [dB], at Frequency [Hz] | 18, 5.5k |
| Low Pass [dB], at Frequency [Hz] | 18, 5.5k |
| Comments | Crossover is bi-amp capable. |
