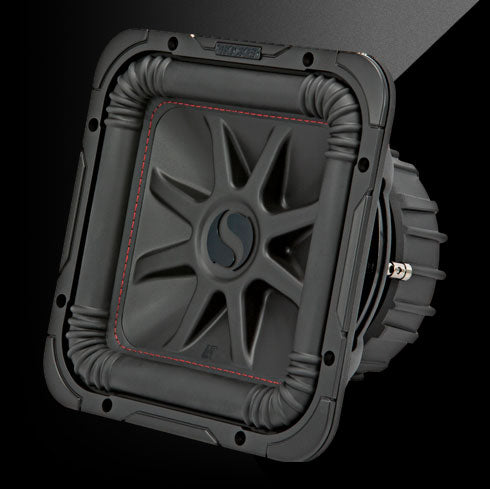

Kicker Car Subwoofer 45L7R104
The 10-inch L7R Square Sub moves more air and delivers bigger bass, so you get more bump out of every watt!
THE ORIGINAL
- Dual four-Ohm Voice Coil
- Wrap Around Gasketing
- Patented Ribbed Corners
- Injection-Molded SoloKon™ Woofer
- 360-Degree Back Bracing
- UniPlate™ Back Plate And Pole Piece
- Bumped Back Plate
- Thick Tinsel Leads
- Large Ceramic Magnet
- Steel Basket With Spoke Design
- Nickel Plated Speaker Terminals
Originator, n. (əˈrijəˌnādər): see KICKER
The engineers at KICKER invented the original square sub right here in the heart of America. Designed to give you more bass - yet take up no more air space - than a standard round sub. Welcome to the miraculous world of the L7R!
Specifications
| CNC Software | L7S-L7R.DXF - for subwoofer hole cutouts |
|---|---|
| 3D Printing Software | L7S-L7R.SLDPRT - 3D-printing of grille spacers |
| SIZE [in, cm] | 10, 25 |
| IMPEDANCE [Ohms] | 4 DVC |

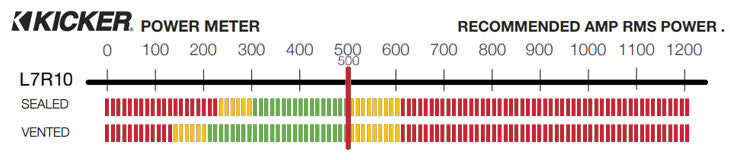

| Recommended Amplifier Power (watts RMS) | 500 |
| Peak Power (watts, per ANSI/CTA-2031-A) | 1000 |
| SENSITIVITY [dB 1w/1m] | 85.9 |
| MOUNTING DEPTH [in, cm] | 6-1/8, 15.7 |
| MOUNTING DIAMETER [in, cm] | 9-5/16, 23.7 |
| MIN SEALED BOX VOL [cu. ft, L] | .66, 18.7 |
| MAX SEALED BOX VOL [cu. ft, L] | 1, 28.3 |
| MIN VENTED BOX VOL [cu. ft, L] | 1.25, 35.4 |
| MAX VENTED BOX VOL [cu. ft, L] | 2.25, 63.7 |
| What's in the Box | 1 - 10" Subwoofer, 1 - install manual, 2 - Kicker stickers |
