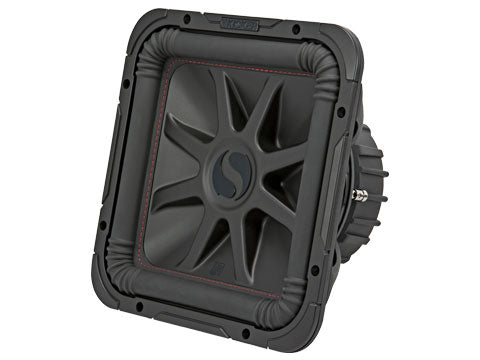

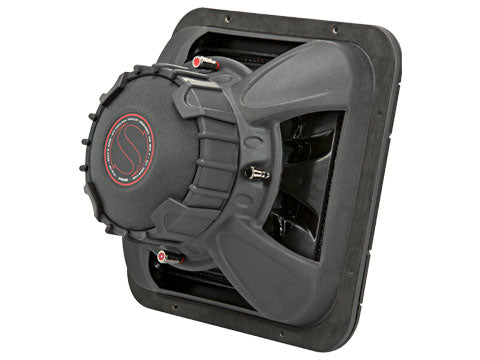

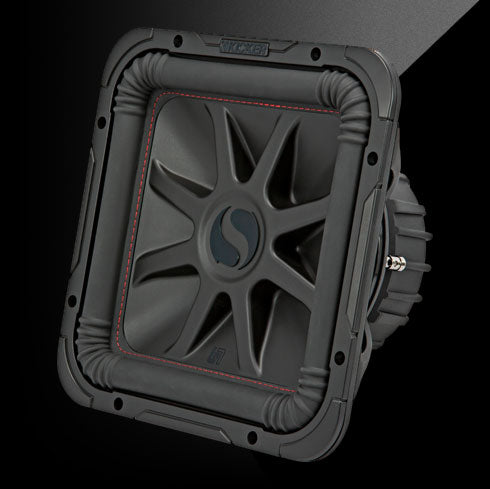

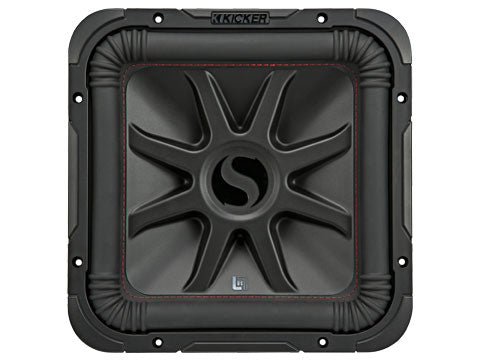

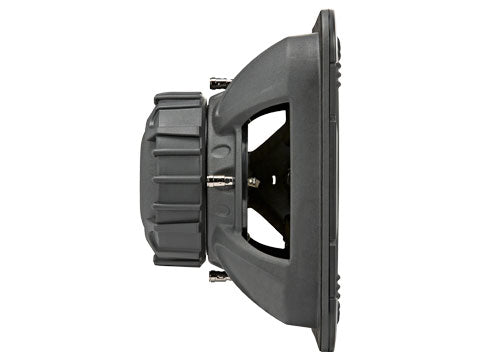

Kicker Car Subwoofer 45L7R122
The 12-inch L7R Square Subwoofer moves more air and delivers bigger bass, so you get more bump out of every watt!
BIG BASS. SAME SPACE.
- Dual two-Ohm Voice Coil
- Wrap Around Gasketing
- Patented Ribbed Corners
- Injection-Molded SoloKon™ Woofer
- 360-Degree Back Bracing
- UniPlate™ Back Plate And Pole Piece
- Bumped Back Plate
- Thick Tinsel Leads
- Large Ceramic Magnet
- Steel Basket With Spoke Design
- Nickel Plated Speaker Terminals
The engineers at KICKER HQ designed the L7R to give you more bass than a circular sub, without a larger enclosure. Welcome to the world of square sub perfection!

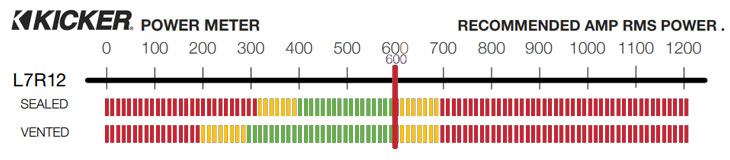

The L7R 12-Inch Subwoofer works best with 600 watts of recommended power in a sealed or ported enclosure. See below for more details.
Specifications
| CNC Software | L7S-L7R.DXF - for subwoofer hole cutouts |
|---|---|
| 3D Printing Software | L7S-L7R.SLDPRT - 3D-printing of grille spacers |
| SIZE [in, cm] | 12, 30 |
| IMPEDANCE [Ohms] | 2 DVC |
| Recommended Amplifier Power (watts RMS) | 600 |
| Peak Power (watts, per ANSI/CTA-2031-A) | 1200 |
| SENSITIVITY [dB 1w/1m] | 86.7 |
| MOUNTING DEPTH [in, cm] | 6-7/8, 17.4 |
| MOUNTING DIAMETER [in, cm] | 11-1/16, 28.1 |
| MIN SEALED BOX VOL [cu. ft, L] | .88, 24.92 |
| MAX SEALED BOX VOL [cu. ft, L] | 2, 56.64 |
| MIN VENTED BOX VOL [cu. ft, L] | 1.75, 49.6 |
| MAX VENTED BOX VOL [cu. ft, L] | 3.25, 92 |
| What's in the Box | 1 - 12" Subwoofer, 1 - install manual, 2 - Kicker stickers |
