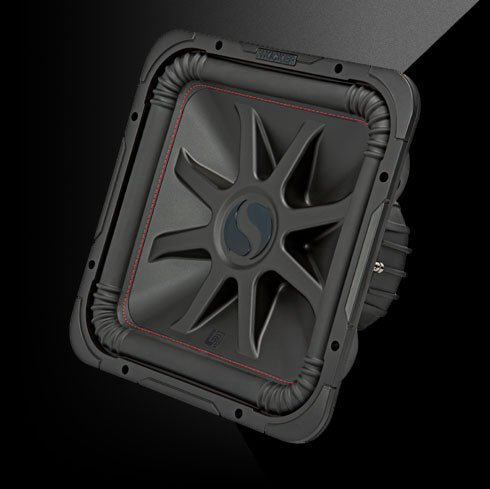

Kicker Car Subwoofer 45L7R152
The L7R Square Sub moves more air, so you get more bass. The design was invented right here in Stillwater, Oklahoma – made to deliver unprecedented efficiency and huge volume!
The Original
- Dual two-Ohm Voice Coil
- Wrap Around Gasketing
- Patented Ribbed Corners
- Injection-Molded SoloKon™ Woofer
- SoloKon™
- 360-Degree Back Bracing
- UniPlate™ Back Plate And Pole Piece
- Bumped Back Plate
- Thick Tinsel Leads
- Large Ceramic Magnet
- Steel Basket With Spoke Design
- Nickel Plated Speaker Terminals
Originator, n. (əˈrijəˌnādər): see KICKER
The engineers at KICKER invented the original square sub right here in the heart of America. Designed to give you more bass - yet take up no more air space - than a standard round sub. Welcome to the miraculous world of the L7R!
Specifications
| CNC Software | L7S-L7R.DXF - for subwoofer hole cutouts |
|---|---|
| 3D Printing Software | L7S-L7R.SLDPRT - 3D-printing of grille spacers |
| SIZE [in, cm] | 15, 38 |
| IMPEDANCE [Ohms] | 2 DVC |

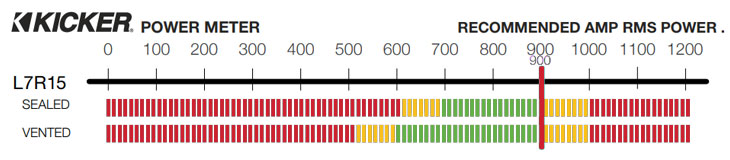

| Recommended Amplifier Power (watts RMS) | 900 |
| Peak Power (watts, per ANSI/CTA-2031-A) | 1800 |
| SENSITIVITY [dB 1w/1m] | 88.05 |
| MOUNTING DEPTH [in, cm] | 8 -3/8, 21.5 |
| MOUNTING DIAMETER [in, cm] | 13-3/4, 34.9 |
| MIN SEALED BOX VOL [cu. ft, L] | 1.5, 42.48 |
| MAX SEALED BOX VOL [cu. ft, L] | 3, 85 |
| MIN VENTED BOX VOL [cu. ft, L] | 3, 85 |
| MAX VENTED BOX VOL [cu. ft, L] | 6, 170 |
| What's in the Box | 1 - 15" Subwoofer, 1 - install manual, 2 - Kicker stickers |
