Kicker Car Subwoofer 48CWR104
Now even more efficient and sporting a slick, blacked-out look, the 2021 CompR® sub is the very model of power and reliability.

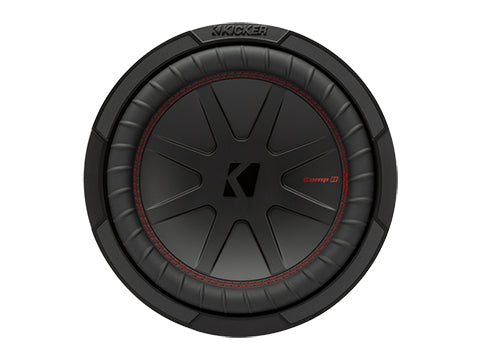

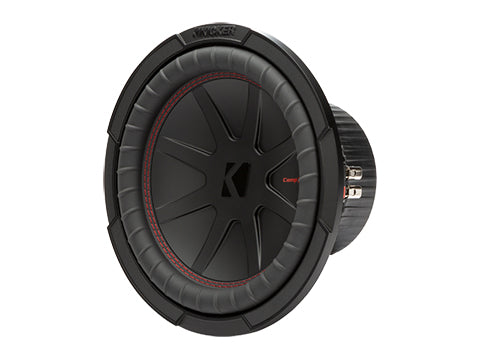

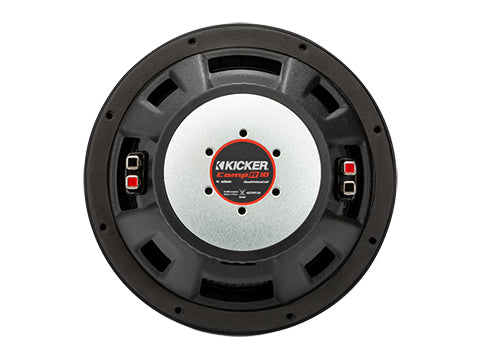

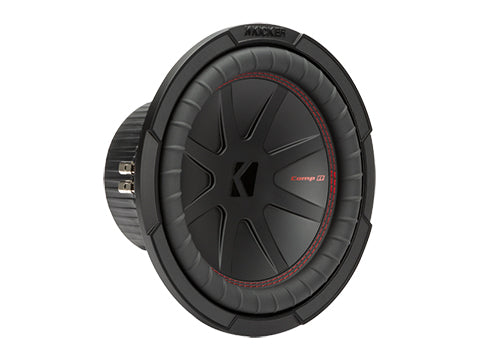

10" CompR 4 Ohm
The CompR 10-Inch Subwoofer is a 4Ω dual voice coil design, making it easy to get the most out of your amp.

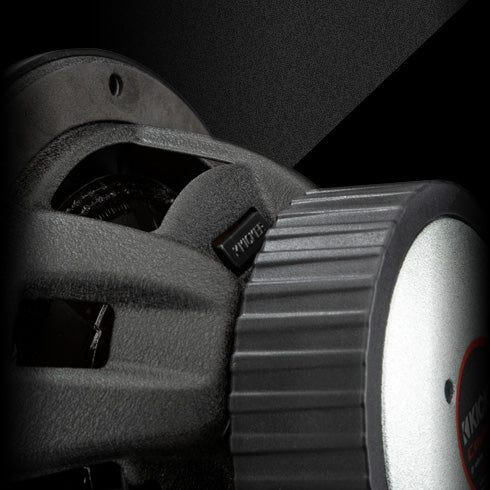

An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent – all without a hint of distortion. To make our subs even more reliable, KICKER engineers developed Forced Air Cooling to help our subs run 25% cooler than before.
The CompR 10-Inch Subwoofer works best with a sealed or ported enclosure and 400 watts of recommended power. See below for more details.
Specifications
| CNC Software | Comp6.75-15.DXF - for subwoofer hole cutouts |
|---|---|
| 3D Printing Software | Comp6.75-15.SLDPRT - 3D-printing of grille spacers |
| SIZE [in, cm] | 10, 25 |
| IMPEDANCE [Ohms] | 4 DVC |
| Recommended Amplifier Power (watts RMS) | 400 |
| Peak Power (watts, per ANSI/CTA-2031-A) | 800 |
| SENSITIVITY [dB 1w/1m] | 84.6 |
| MOUNTING DEPTH [in, cm] | 5-1/4, 13.3 |
| MOUNTING DIAMETER [in, cm] | 9-1/8, 23.1 |
| MIN SEALED BOX VOL [cu. ft, L] | 0.8, 22.7 |
| MAX SEALED BOX VOL [cu. ft, L] | 1.25, 35.4 |
| MIN VENTED BOX VOL [cu. ft, L] | 1.25, 35.4 |
| MAX VENTED BOX VOL [cu. ft, L] | 1.75, 49.6 |
