Kicker Marine Amplifier 48KXMA5004
WOS Pick What this amp does in 10 seconds — expand for full specs.
- BrandKicker
- SKU48KXMA5004
- Channels4
Mei says"Match this amp to your speakers and sub. Wrong power or wiring = weak system — do it once, do it right."
The stuff you'll actually notice
- 4-channel platform.
Product description
KXMA Amps are built for the outdoors. Gain, crossover and bass-boost controls are protected behind a gasket-sealed panel, as is the control cover hiding the settings, creating a water-resistant barrier to key controls.
REAL MARINE™
The KICKER REAL MARINE™ standard means your amplifier is purpose-built for your boat. Every KXMA (and KMA)-Series amp comes complete with anti-corrosive speaker, power and RCA terminals, stainless-steel screws, conformal-coated circuit boards and ABYC/NMMA-compliant power connections. KICKER products also undergo rigorous testing to ensure they meet or exceed marine industry standards for UV, humidity and saltwater exposure. This unparalleled commitment to engineering quality and maritime safety is why our products truly are "REAL MARINE™."

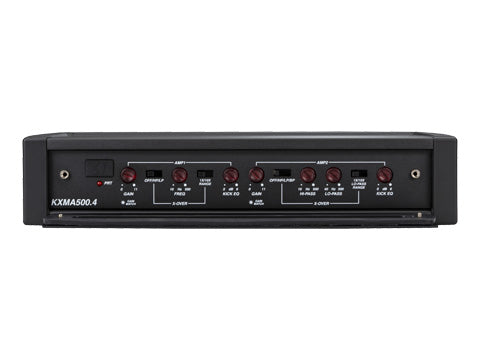

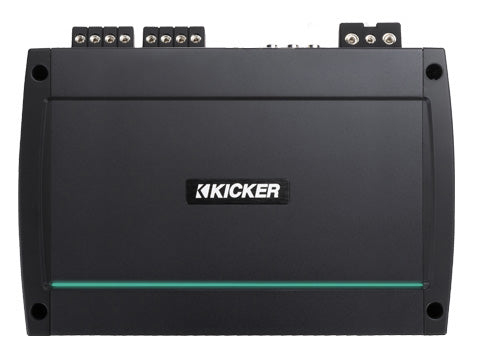

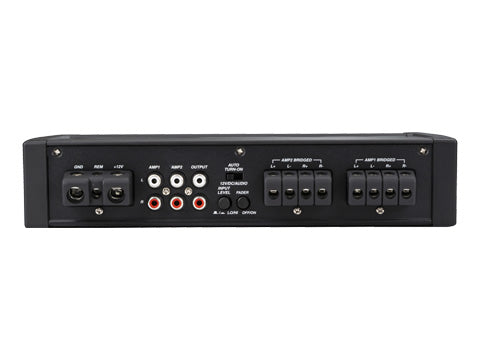

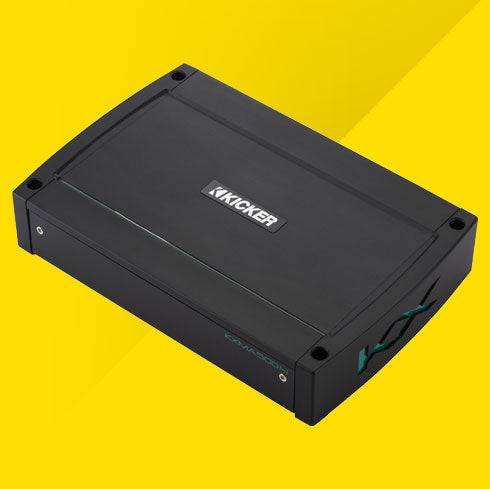

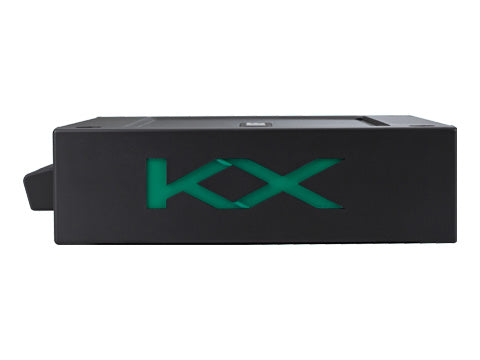

KXMA500.4 Marine Amplifier
- Class D Amplifier
- Gain Control With "Gain Match" LED Indicator
- FIT2™ (Fail-safe Integration Technology) Circuitry
- Variable 24dB Crossover
- DSP-Controlled Preamp
- KickEQ™ 6dB Variable Bass Boost

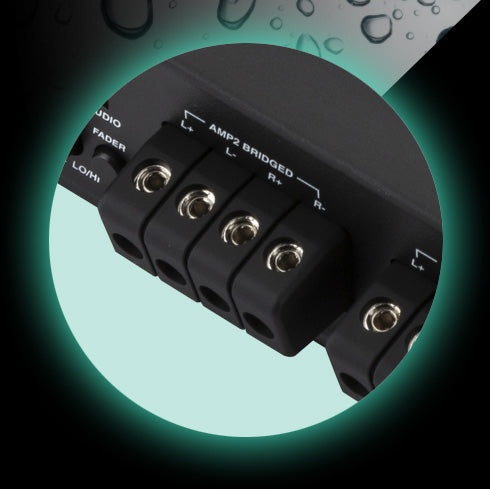

- ABYC/NMMA-Compliant Power Terminals
- Conformal-Coated Circuit Boards
- Easy Access to Settings behind Gasket-Sealed Cover Panel
- Black Anodized Aluminum Chassis
- Top-Mounted, Teal LED Light Pipe
- Stainless-Steel Mounting Hardware Included
KickEQ™ delivers as much as an 6dB of extra bump with a simple turn of the knob. A powerful 24dB crossover is also included, letting you quickly tune your system to perfection. A full-range RCA output allows you to easily add another amplifier without running new signal cable to your KICKER KMC Media Center.
Want setup help? Go to KICKER U for a free woofer-and-amp configuration app!
This KXMA amplifier delivers as much as 125 watts into four full-range channels, or 250 watts into two sets of bridged channels. See below for more details.
Important Safety Information
When installing KICKER amplifiers (car or marine) in a boat or other vehicle/environment where flammable fuel vapors can accumulate rather than dissipate, you must use appropriate MARINE fuses, MARINE fuse holders, and MARINE wiring to minimize the risk of fire or explosion.
Specifications
| POWER [watts/ch], 2 OHM STEREO | 125 x 4 |
|---|---|
| POWER [watts/ch], 4 OHM STEREO | 75 x 4 |
| POWER [watts/ch], 4 OHM BRIDGED MONO | 250 x 2 |
| DYNAMIC POWER [watts] | 700 |
| DIMENSIONS [in] all models 2-1/8H x 8-5/16W x ___L | 11-3/16 |
| DIMENSIONS [cm] all models 5.5H x 21.0W x ___L | 28.4 |
| FREQUENCY RESPONSE [Hz] | 10-20k, +0/-1dB |
| INPUT SENSITIVITY | High Level 250mV-10V, Low Level 125mV-5V |
| SIGNAL-TO-NOISE RATIO | >95dB, a-weighted, re: rated power |
| ACTIVE CROSSOVER | (amp 1) 24dB/octave, variable 10-5kHz w/ 10x switch, selectable high pass, low pass or off (amp 2) 24dB/octave, variable high pass 10-500Hz, variable low pass 40-5kHz w/10x switch, selectable high pass, low pass, off or band pass |
| KickEQ™ BOOST | Variable 0-6dB, centered @ 40Hz (Only on amp 2) |
| COMES WITH WIRED REMOTE | No |
Power breakdown
Inputs, filters & control
Build, wiring & install
Protection & performance
Full specifications
| Amp Channels | 4 |
|---|
| Color / Finish | Black |
|---|
Vehicle fitment
| Model | 48KXMA5004 |
|---|
Support & warranty
Need help choosing or installing?
We build indestructible, IP-rated systems for marine, motorcycle, UTV, and automotive. If you want a matched setup, we’ll guide you to the right gear the first time.
