Kicker Marine Amplifier 48KXMA9005

Kicker Marine Amplifier 48KXMA9005

Regular price $719.99 USD
Regular price Sale price $719.99 USD
Sale Sold out
Quantity
View full details
Mei from Wide Open Sound

Wide Open Sound · Curated gear

Kicker Marine Amplifier 48KXMA9005

WOS Pick What this amp does in 10 seconds — expand for full specs.

  • BrandKicker
  • SKU48KXMA9005
  • Channels5
Mei says

"Match this amp to your speakers and sub. Wrong power or wiring = weak system — do it once, do it right."

The stuff you'll actually notice
  • 5-channel platform.
Product description

The KICKER® KXMA five-channel marine amp delivers power and performance with a full-system solution in a single, powerful amplifier.

REAL MARINE™

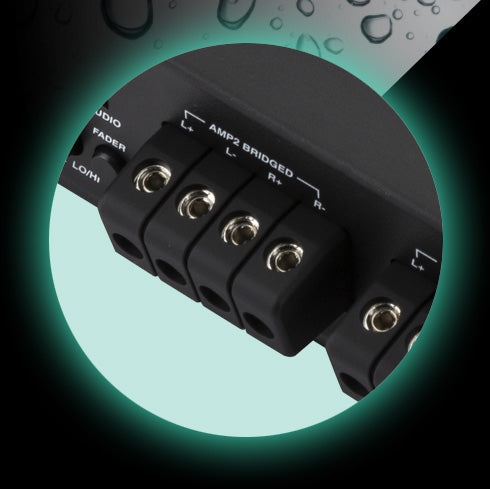

The KICKER REAL MARINE™ standard means your amplifier is purpose-built for your boat. Every KXMA (and KMA)-Series amp comes complete with anti-corrosive speaker, power and RCA terminals, stainless-steel screws, conformal-coated circuit boards and ABYC/NMMA-compliant power connections. KICKER products also undergo rigorous testing to ensure they meet or exceed marine industry standards for UV, humidity and saltwater exposure. This unparalleled commitment to engineering quality and maritime safety is why our products truly are "REAL MARINE™."

KXMA900.5 Marine Amplifier

  • Class D Amplifier
  • Gain Control With "Gain Match" LED Indicator
  • FIT2™ (Fail-safe Integration Technology) Circuitry
  • Variable 24dB Crossover
  • DSP-Controlled Preamp
  • KickEQ™ 6dB Variable Bass Boost
  • ABYC/NMMA-Compliant Power Terminals
  • Conformal-Coated Circuit Boards
  • Easy Access to Settings behind Gasket-Sealed Cover Panel
  • Black Anodized Aluminum Chassis
  • Top-Mounted, Teal LED Light Pipe
  • Stainless-Steel Mounting Hardware Included

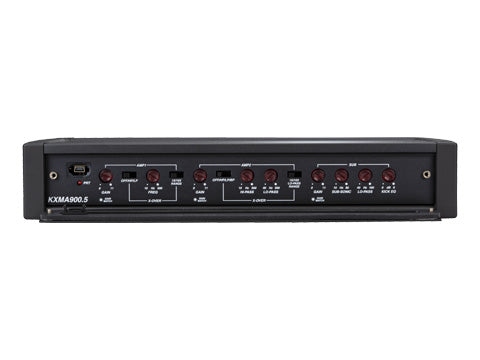

Gain, crossover and bass-boost controls are protected behind a gasket-sealed panel, as is the control cover hiding the settings, creating a water-resistant barrier to key controls. KickEQ™ delivers as much as an 6dB of extra bump with a simple turn of the knob. A powerful 24dB crossover is also included, letting you quickly tune your system to perfection.

A wired bass controller is also included for perfecting your sound on the fly. Easily adjust the levels of your subwoofer channel without leaving your seat!

Want setup help? Go to KICKER U for a free woofer-and-amp configuration app!

This KXMA amplifier delivers as much as 125 watts into four full-range channels, or 250 watts into 4-Ohm bridged channels. A separate subwoofer channel delivers as much as 400 watts. See below for more details.

Important Safety Information

When installing KICKER amplifiers (car or marine) in a boat or other vehicle/environment where flammable fuel vapors can accumulate rather than dissipate, you must use appropriate MARINE fuses, MARINE fuse holders, and MARINE wiring to minimize the risk of fire or explosion.

Specifications

POWER [watts/ch], 2 OHM STEREO 125 x 4
POWER [watts/ch], 4 OHM STEREO 75 x 4
POWER [watts/ch], 4 OHM BRIDGED MONO 250 x 2
SUB CHANNEL POWER [watts/ch] 4Ω power: 200x1 @ 1% THD+N 2Ω power: 400x1 @ 1% THD+N 1Ω power: 400x1 @ 1% THD+N
DYNAMIC POWER [watts] 1300
DIMENSIONS [in] all models 2-1/8H x 8-5/16W x ___L 12-3/4
DIMENSIONS [cm] all models 5.5H x 21.0W x ___L 32.4
FREQUENCY RESPONSE [Hz] (amp 1&2) 10-20k, +0/-1dB; (mono) 10-160
INPUT SENSITIVITY High Level 250mV-10V, Low Level 125mV-5V
SIGNAL-TO-NOISE RATIO >95dB, a-weighted, re: rated power
ACTIVE CROSSOVER Full-Range - (amp 1) 24dB/octave, variable 10-5kHz w/ 10x switch, selectable high pass, low pass or off (amp 2) 24dB/octave, variable high pass 10-500Hz, variable low pass 40-5kHz w/ 10x switch, selectable high pass, low pass, off or band pass; Sub Ch. – 24dB/octave, variable 40-160Hz low pass only'
SUBSONIC FILTER [KXMA.5] (mono only) high-pass variable 10-80Hz
KickEQ™ BOOST (mono only) Variable 0-6dB, centered 40Hz
COMES WITH WIRED REMOTE Yes
Power breakdown
Inputs, filters & control
Build, wiring & install
Protection & performance
Full specifications
Amplifier
Amp Channels 5
Power ratings
Inputs & filters
Wiring
Weather / environment
Color / Finish Black
Support
Vehicle fitment
Model 48KXMA9005
