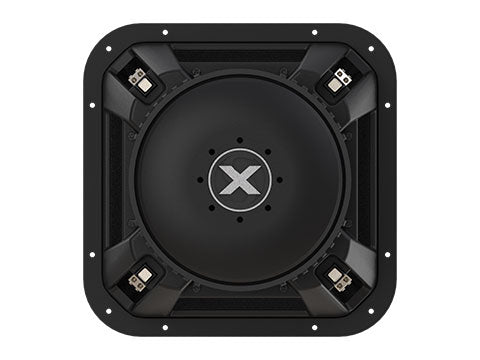

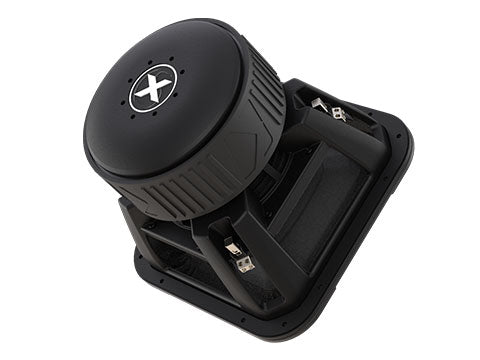

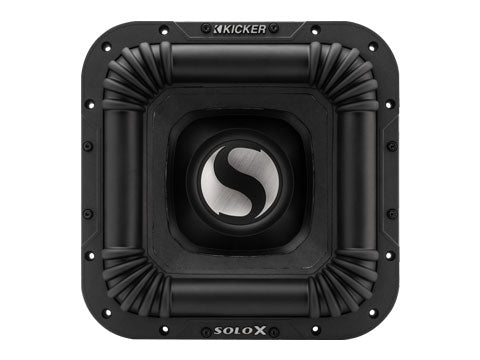

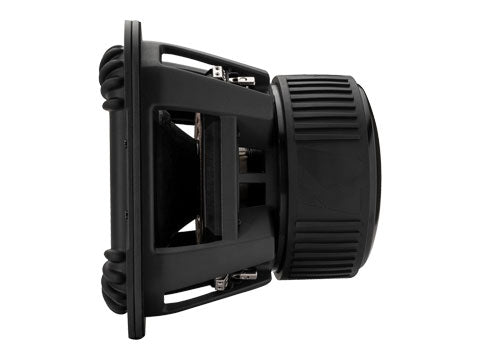

Kicker Car Subwoofer 49L7X122
The SoloX L7X revived KICKER advanced bass technology and extreme power handling – made to turn heads!

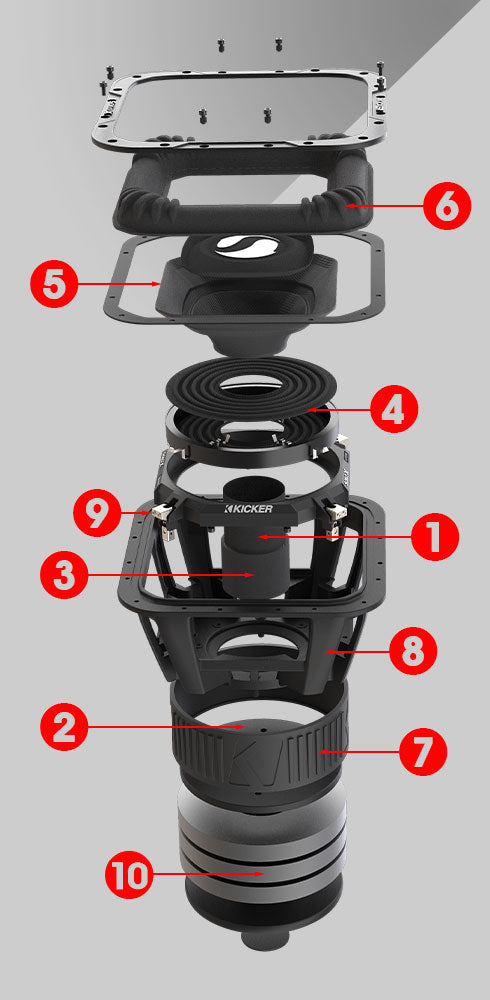

Features:
- Field-Replaceable Recone Kit – cone/voice coil/spider assembly, and no gluing required
- Forced Air Cooling™
- Three-inch, aluminum voice coil former
- Dual-spider suspension
- Double-pressed pulp cone
- Heavy-duty UV-resistant Santoprene surround
- Custom rubber magnet boot
- Cast-aluminum basket
- Single 8 AWG terminal and dual 8 AWG terminal block
- Triple-Stacked Ferrite Magnet
Specifications
| CNC Files | L7X.DXF - for subwoofer hole cutouts |
|---|---|
| 3D Print Files | L7X.SLDPRT - 3D-printing of grille spacers |
| Size (in, cm) | 12, 30 |
| Rated Impedance (Ohms) | 2 DVC |
| Rec Amp Power rms | 1000-2000 |
| Frequency Response | 20-100 |
| Magnet Diameter (in, cm) | 8-11/16, 22 |
| Total Magnet Weight (oz, kg) | 406, 11.5 |
| Voice Coil Diameter (in, mm) | 3, 75 |
| Voice Coil Winding Width (in, mm) | 2.5, 62.5 |
| Top Plate Thickness (in, mm) | 0.5, 13 |
| Xmax (in, mm) | 1.25, 31.25 |
| Mounting Cutout (in, cm) | 11-1/16, 28.1 |
| Mounting Depth (in, cm) | 10-1/8, 25.7 |
| Recommended Vented Box Volume (Cu. Ft., L) | 3, 84.9 |
| Port Opening (in x in, cm x cm) | 3.5 x 13, 9 x 33 |
| Port Length (in, cm) | 36.5, 93 |
| Vented Enclosure Tuning Frequency (Hz) | 31 |
