Kicker Car Subwoofer 49L7X181
The SoloX L7X revived KICKER advanced bass technology and extreme power handling – made to turn heads!
Features:
- Field-Replaceable Recone Kit – cone/voice coil/spider assembly, and no gluing required
- Forced Air Cooling™
- Three-inch, aluminum voice coil former
- Dual-spider suspension
- Double-pressed pulp cone
- Heavy-duty UV-resistant Santoprene surround
- Custom rubber magnet boot
- Cast-aluminum basket
- Single 8 AWG terminal and dual 8 AWG terminal block
- Triple-Stacked Ferrite Magnet

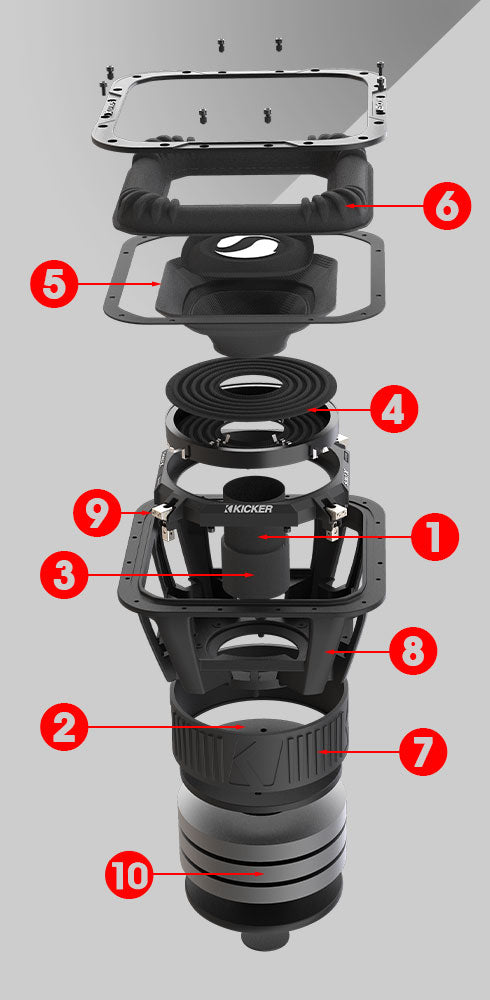

*SoloX 12" shown in diagram.
Specifications
| CNC Files | L7X.DXF - for subwoofer hole cutouts |
|---|---|
| 3D Print Files | L7X.SLDPRT - 3D-printing of grille spacers |
| Size (in, cm) | 18, 46 (approx.) |
| Rated Impedance (Ohms) | 1 |
| Rec Amp Power (Watts RMS) | 1000-2000 |
| Frequency Response (Hz) | 18-100 |
| Magnet Diameter (in, cm) | 8-11/16, 22 |
| Total Magnet Weight (oz, kg) | 406, 11.5 |
| Voice Coil Diameter (in, mm) | 3, 75 |
| Voice Coil Winding Width (in, mm) | 2.5, 62.5 |
| Top Plate Thickness (in, mm) | 0.5, 13 |
| Xmax (in, mm) | 1.25, 31.25 |
| Recommended Vented Box Volume (ft³, L) | 7.5, 214.5 |
| Port Opening (in x in, cm x cm) | 6.5 x 19.5, 16.5 x 49.5 |
| Port Length (in, cm) | 27.75, 70.5 |
| Vented Enclosure Tuning Frequency (Hz) | 28 |
