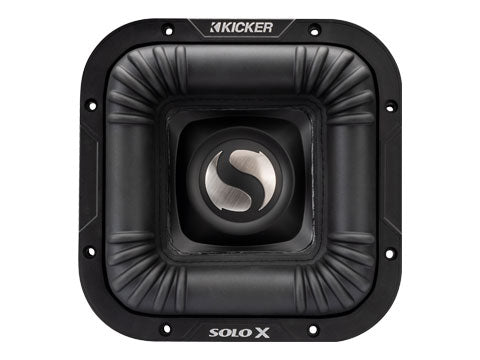

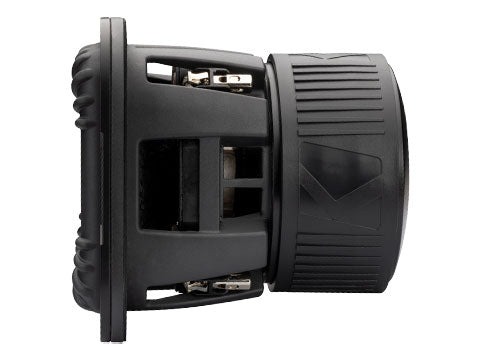

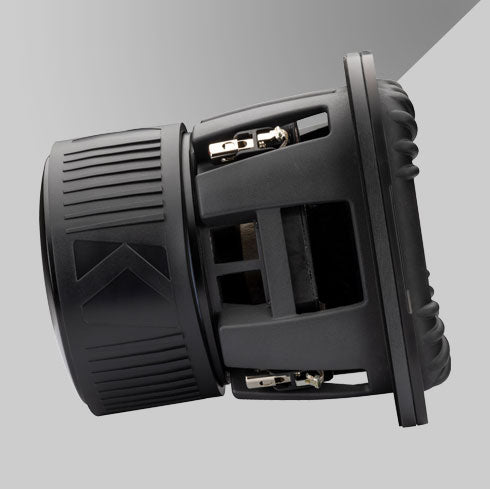

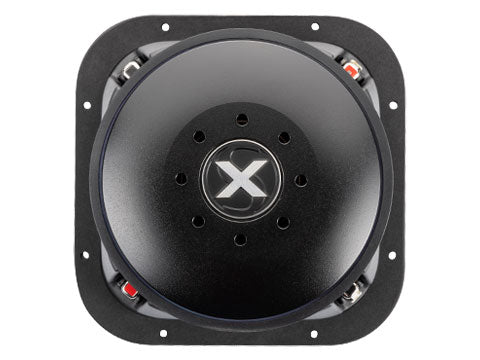

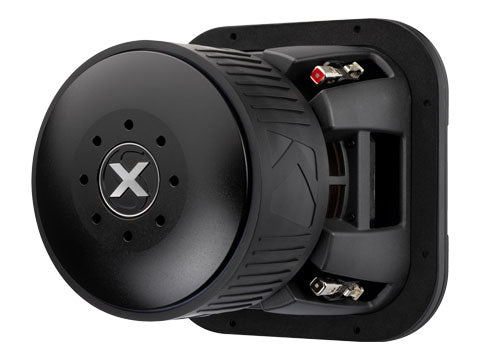

Kicker Car Subwoofer 49L7X82
The SoloX L7X revived KICKER advanced bass technology and extreme power handling – made to turn heads!
All SoloX
The L7X8 utilizes a few different features and components to reproduce the monstrous bass and efficiency of the larger SoloX subwoofers. You’ll find it contains a stout 2.5-inch voice coil, heavy-duty spring-loaded terminals, and a recone kit that requires gluing and cure time as part of the process.
1000 - 2000W RMS
Features:
- Recone Kit – cone/voice-coil/spider assembly that requires glue and cure time
- Forced Air Cooling™
- 2.5-inch, aluminum voice coil former
- Dual-spider suspension
- Double-pressed pulp cone
- Heavy-duty UV-resistant Santoprene surround
- Custom rubber magnet boot
- Cast-aluminum basket
- Single 8 AWG terminals
- Triple-Stacked Ferrite Magnet

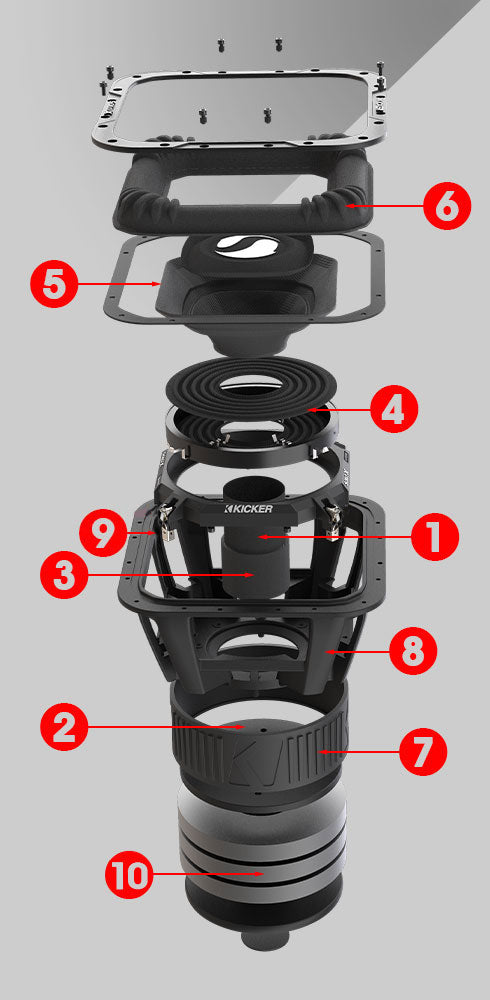

*SoloX 12" shown in diagram.
Specifications
| CNC Files | L7X.DXF - for subwoofer hole cutouts |
|---|---|
| 3D Print Files | L7X.SLDPRT - 3D-printing of grille spacers |
| Size (in, cm) | 8, 20 |
| Rated Impedance (Ohms) | 2 DVC |
| Rec Amp Power RMS | 400-800 |
| Frequency Response | 30-100 |
| Magnet Diameter (in, cm) | 6-15/16, 17.6 |
| Total Magnet Weight (oz, kg) | 225, 6.4 |
| Voice Coil Diameter (in, mm) | 2.5, 62.5 |
| Voice Coil Winding Width (in, mm) | 1-7/8, 48 |
| Top Plate Thickness (in, mm) | 5/16, 8 |
| Xmax (in, mm) | 15/16, 24 |
| Mounting Cutout (in, cm) | 7-5/16, 18.6 |
| Mounting Depth (in, cm) | 7-15/16, 20.1 |
| Recommended Vented Box Volume (Cu. Ft., L) | 0.88, 25 |
| Port Opening (in x in, cm x cm) | 2 x 9, 5 x 23 |
| Port Length (in, cm) | 32.25, 82 |
| Vented Enclosure Tuning Frequency (Hz) | 39 |
