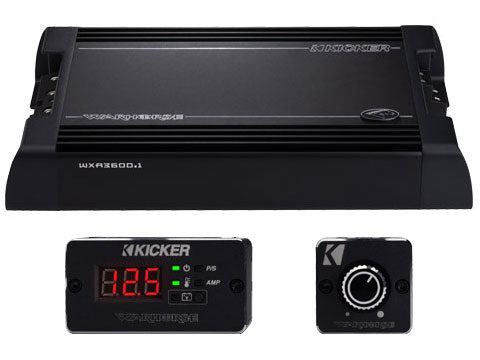

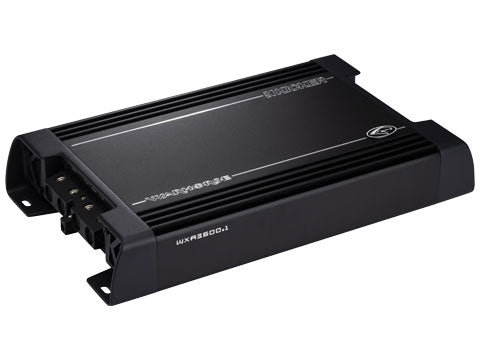

Kicker Car Amplifier 49WXA36001
The Warhorse WXA3600.1 was engineered completely in-house by KICKER Research and Development for ultra-high SPL applications.
Not your Average Amp
- Features extreme reliability under intense bass power and overall use
- Full-bridge Class-D design
- Quad micro-controller-regulated cooling fans
- Capable of daisy-chaining remote power across multiple amps
- Competition mode switch to avoid potentiometer creep, fix crossover setting, and gain-match multiple amps
- Includes premium remote bass-level control with a magnetic mount – 19.75 feet (6m) RJ45 cable
- Includes a heavy-duty, magnetic-mount diagnostic tool for monitoring voltage measurements and amp protection status – 19.75 feet (6m) RJ45 cable
- Fully compatible with most factory or aftermarket source units (with FIT+™ differential inputs)
- WARHORSE Install Scenarios: WarhorseInstallScenariosv2.pdf
- REMOTE/DIAGNOSTIC TOOL SURFACE MOUNT TEMPLATE
- REMOTE/DIAGNOSTIC TOOL FLUSH MOUNT TEMPLATE
If you have two mono amps or powered subwoofers, check out the DBRC Remote for controlling both from the same knob.
Specifications
| MODEL | WXA3600.1 |
|---|---|
| WARHORSE 3600.1 white paper with full tech graph data | 49WXA36001 Whitepaper PDF |
| WARHORSE 3600.1 Dimensions | 49WXA36001 Product Dimensions PDF |
| *RMS Power (watts/ch) 1 Ohm Mono (@ 14.4v, < 1%THD) | 3600x1 |
| *RMS Power (watts/ch) 2 Ohm Mono (@ 14.4v, < 1%THD) | 2500x1 |
| *RMS Power (watts/ch) 4 Ohm Mono (@ 14.4v, < 1%THD) | 1400x1 |
| **Dynamic Power (watts) | 5000 |
| Frequency Response (Hz) | 10-200 |
| Signal-to-Noise Ratio (dB; A-weighted, re: rated power) | >90 |
| Signal-to-Noise Ratio (dB; ref: 1W output) | >70 |
| Input Sensitivity | low level 125mV-5V high level 1V-40V |
| Selectable Electronic Crossover | Variable Low-pass 50-200Hz, 24dB/octave |
| Subsonic Filter | Defeatable @ 15Hz, 24dB/octave |
| Competition Mode | warhorse-competition-mode.pdf |
| Dimensions (in, cm) | H – 2-9/16, 6.5 W – 9-1/8, 23.2 L – 15-3/8, 39.1 |
