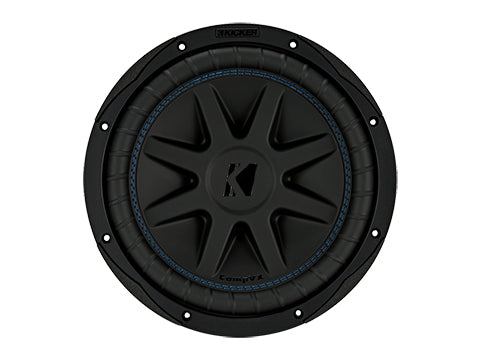

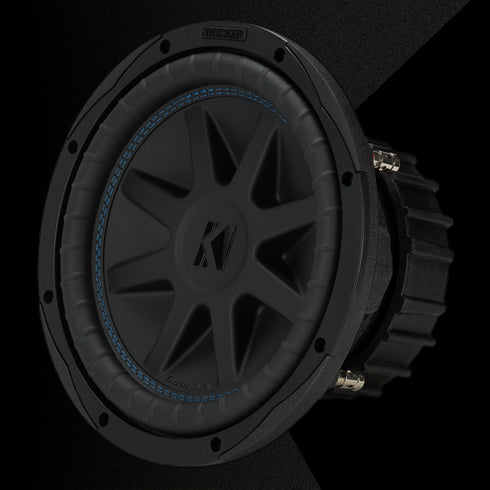

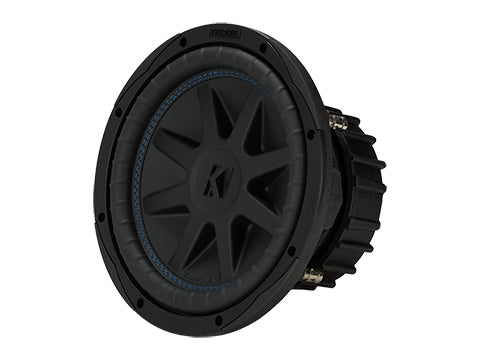

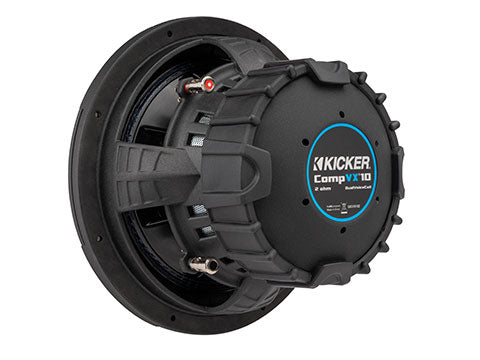

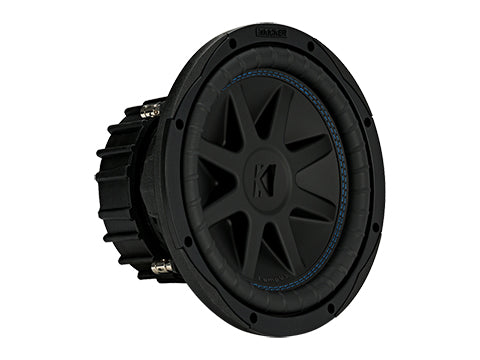

Kicker Car Subwoofer 50CVX104
The CompVX's™ basket is cast aluminum with motor-cooling perimeter venting and spring-loaded terminals that can accept up to 10-gauge wire, so when you run hundreds of watts to this sub, it gives you loud, distortion-free bass.
10" CompVX 4 Ohm
- Dual Four-Ohm Voice Coils
- Thick Polypropylene Cone
- Signature Double Blue Surround Stitching
- Ribbed Santoprene® Surround
- SoloKon™ Cone Reinforcement
- Oversized Suspension System
- High-Strength Insulated Tinsel Leads
- High Temp Voice Coil
- Perimeter Venting for Thermal Management
- Massive Ceramic Magnet
- UniPlate™ Extended Pole Piece & Backplate For Superior Heat Dissipation
- Cast Aluminum Basket
The CompVX stands alone among round subwoofers, using technologies found in the Solo-Baric L7 like the one-piece SoloKon™ cone with vented back bracing for ultra-rigidity and a cool motor.
Features:
Want setup help? Go to KICKER U for a free woofer & amplifier configuration app!

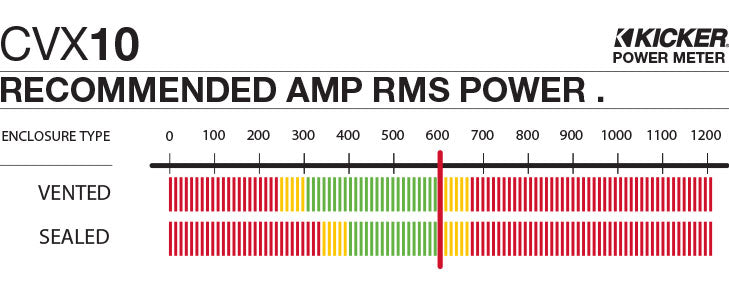

*The CompVX 10-Inch Subwoofer works best with a sealed or ported enclosure and 600 watts of recommended power. See below for more details.
Specifications
| CNC Software | Comp6.75-15.DXF - for subwoofer hole cutouts |
|---|---|
| 3D Printing Software | Comp6.75-15.SLDPRT - 3D-printing of grille spacers |
| Size (IN.,CM) | 10, 25 |
| Impedance (OHMS) | 4 DVC |
| Recommended Amplifier Power (watts RMS) | 600 |
| Peak Power (watts, per ANSI/CTA-2031-A) | 1200 |
| Sensitivity (dB 1w/1m) | 85.7 |
| Frequency Response (Hz) | 24-500 |
| Mounting Depth (in, cm) | 5-15/16, 15.1 |
| Mounting Cutout (in, cm) | 9-3/16, 23.3 |
| Min Sealed Box Vol (cu. ft, L) | .8, 22.7 |
| Max Sealed Box Vol (cu. ft, L) | 3.0, 85.0 |
| Min Vented Box Vol (cu. ft, L) | 1.25, 35.4 |
| Max Vented Box Vol (cu. ft, L) | 1.75, 49.6 |
| What's in the box? | one 10-inch subwoofer, one owner's manual, two stickers |
