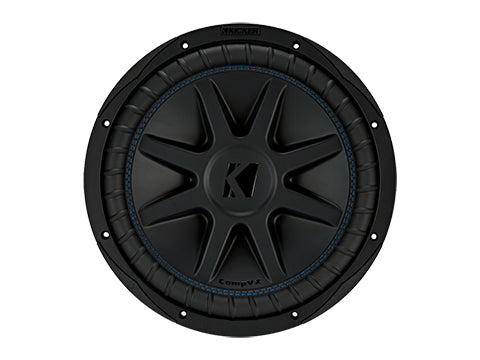

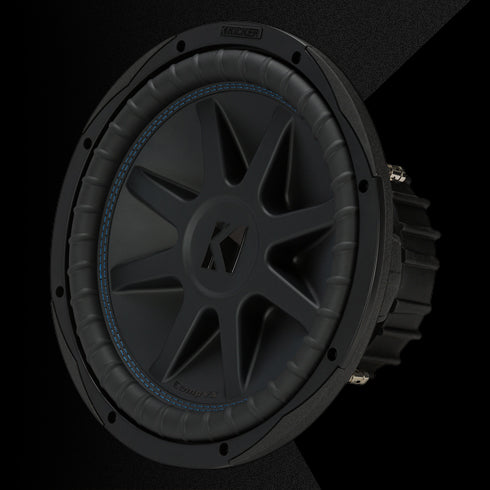

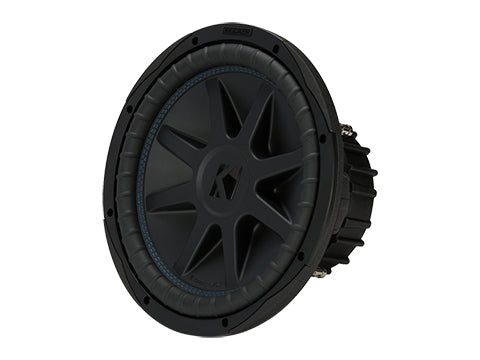

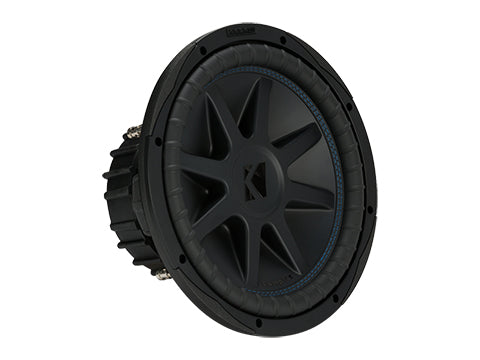

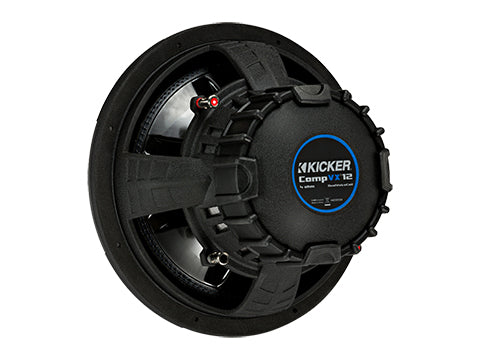

Kicker Car Subwoofer 50CVX122
The CompVX™ stands alone among round subwoofers, using all of the exclusive Solo-Baric® L7 design and performance features except the square shape.
12" CompVX 2 Ohm
- Dual Two-Ohm Voice Coils
- Thick Polypropylene Cone
- Signature Double Blue Surround Stitching
- Ribbed Santoprene® Surround
- SoloKon™ Cone Reinforcement
- Oversized Suspension System
- High-Strength Insulated Tinsel Leads
- High Temp Voice Coil
- Perimeter Venting for Thermal Management
- Massive Ceramic Magnet
- UniPlate™ Extended Pole Piece & Backplate For Superior Heat Dissipation
- Cast Aluminum Basket
The cast aluminum basket comes with a motor-cooling perimeter venting and spring-loaded terminals that can accept up to 10-gauge wire, so when you run tons of power to this sub, it gives you loud, distortion-free bass all day long.
Features:
Want setup help? Go to KICKER U for a free woofer & amplifier configuration app!

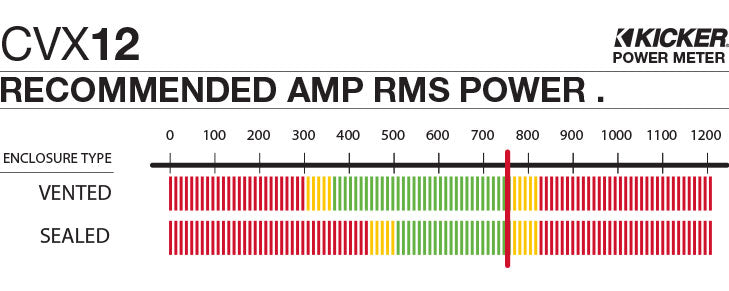

*The CompVX 12-Inch Subwoofer works best with a sealed or ported enclosure and 750 watts of recommended power. See below for more details.
Specifications
| CNC Software | Comp6.75-15.DXF - for subwoofer hole cutouts |
|---|---|
| 3D Printing Software | Comp6.75-15.SLDPRT - 3D-printing of grille spacers |
| Size (IN.,CM) | 12, 30 |
| Impedance (OHMS) | 2 DVC |
| Recommended Amplifier Power (watts RMS) | 750 |
| Peak Power (watts, per ANSI/CTA-2031-A) | 1500 |
| Sensitivity (dB 1w/1m) | 87.1 |
| Frequency Response (Hz) | 20-500 |
| Mounting Depth (in, cm) | 6-11/16, 16.9 |
| Mounting Cutout (in, cm) | 11-1/16, 28 |
| Min Sealed Box Vol (cu. ft, L) | 1.0, 28.3 |
| Max Sealed Box Vol (cu. ft, L) | 4.6, 130 |
| Min Vented Box Vol (cu. ft, L) | 1.75, 49.6 |
| Max Vented Box Vol (cu. ft, L) | 2.25, 63.7 |
| What's in the box? | one 12-inch subwoofer, one owner's manual, two stickers |
