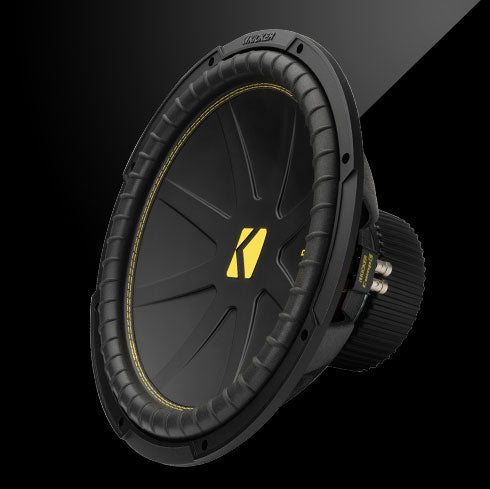

Kicker Car Subwoofer 50CWCD154
The perfect combination of performance and value, the KICKER® CompC™ Subwoofer delivers the bump you’ve been craving!
15" CompC 4 Ohm DVC
- Dual Four-Ohm Voice Coil and Reengineered for Increased Excursion and Deeper Bass
- Injection-Molded Polypropylene Cone
- Forced-Air Cooling™ for Outstanding Durability
- Ribbed Polyurethane Surround
- Signature Yellow Surround Stitching
- High-Strength Spiralead™ Tinsel Leads
- Stamped Steel Basket
- High Temp Voice Coil
- Spring-Loaded Speaker Terminals
The dual-voice-coil CompC Subwoofers make wiring easy with spring-loaded terminals, for easy optimizing of a CX-Series Amplifier. Big power and big bass are easy to get.
Features:
Want setup help? Go to KICKER U for a free woofer & amplifier configuration app!

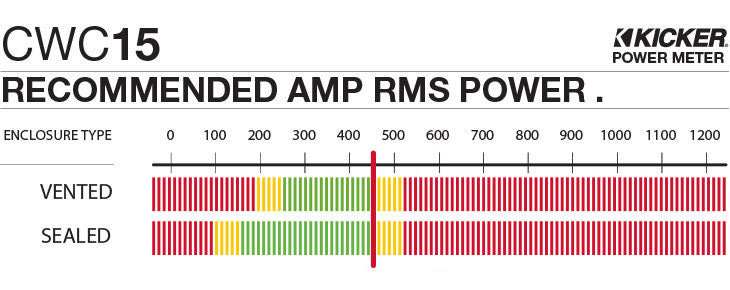

*The CompC 15-inch Subwoofer works best with a sealed or ported enclosure and 450 watts of recommended power. See below for more details.
Specifications
| CNC Software | Comp6.75-15.DXF - for subwoofer hole cutouts |
|---|---|
| 3D Printing Software | Comp6.75-15.SLDPRT - 3D-printing of grille spacers |
| Size [in, cm] | 15, 38 |
| Recommended Amplifier Power [watts RMS] | 225-450 |
| Peak Power Handling [watts, per ANSI/CTA-2031-A] | 900 |
| Sensitivity [dB 1w/1m] | 88.8 |
| Rated Impedance [OHMS] | 4 DVC |
| Fs [Hz] | 29.8 |
| Frequency Response [Hz] | 25-500 |
| Outer Frame Dimension [in, cm] | 15-1/2, 39.3 |
| Mounting Depth [in, cm] | 7-3/8, 18.7 |
| Mounting Cutout [in, cm] | 13-3/4, 35 |
| Max Rec Sealed Box Vol [cu. ft, liters | 5, 141.6 |
| Min Rec Sealed Box Vol [cu. ft, liters | 2.25, 63.7 |
| Max Rec Vented Box Vol [cu. ft, liters) | 4, 113.3 |
| Min Rec Vented Box Vol [cu. ft, liters] | 3, 85 |
