Kicker Car Subwoofer 50CWCS124
The perfect combination of performance and value, the KICKER® CompC™ Subwoofer delivers the bump you’ve been craving!

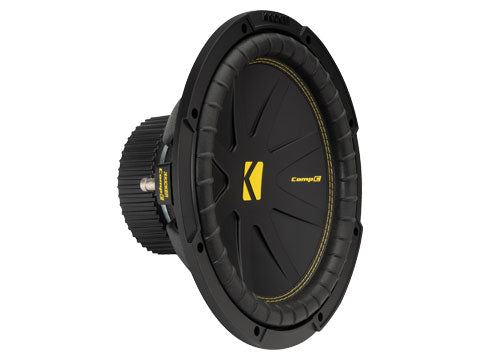

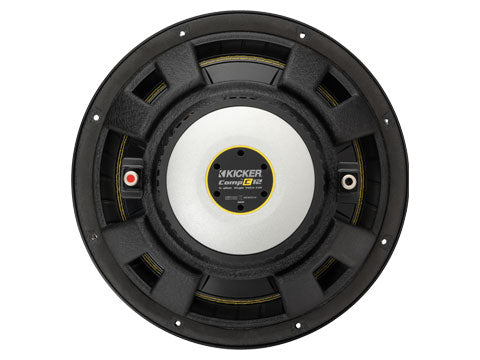

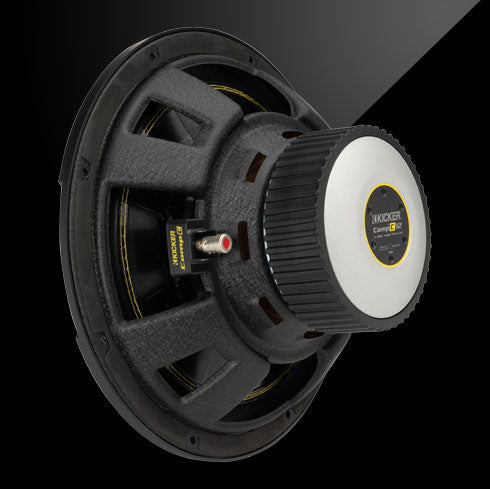

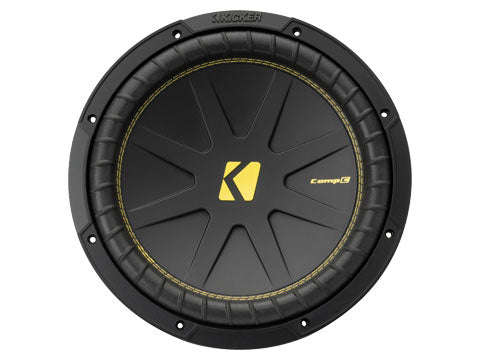

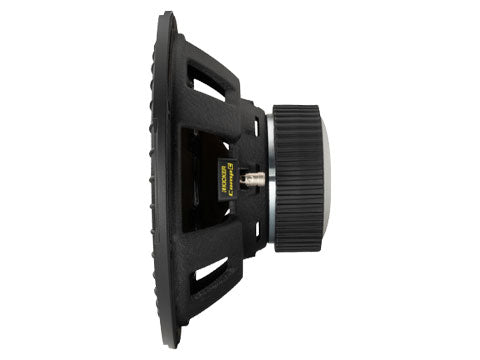

12" CompC 4 Ohm SVC
- Single Four-Ohm Voice Coil and Reengineered for Increased Excursion and Deeper Bass
- Injection-Molded Polypropylene Cone
- Forced-Air Cooling™ for Outstanding Durability
- Ribbed Polyurethane Surround
- Signature Yellow Surround Stitching
- High-Strength Spiralead™ Tinsel Leads
- Stamped Steel Basket
- High Temp Voice Coil
- Spring-Loaded Speaker Terminals
The single-voice-coil CompC Subwoofers make wiring easy with spring-loaded terminals, for easy optimizing of a CX-Series Amplifier. Big power and big bass are easy to get.
Features:
Want setup help? Go to KICKER U for a free woofer & amplifier configuration app!
*The CompC 12-inch Subwoofer works best with a sealed or ported enclosure and 300 watts of recommended power. See below for more details.
Specifications
| CNC Software | Comp6.75-15.DXF - for subwoofer hole cutouts |
|---|---|
| 3D Printing Software | Comp6.75-15.SLDPRT - 3D-printing of grille spacers |
| Size [in, cm] | 12, 30 |

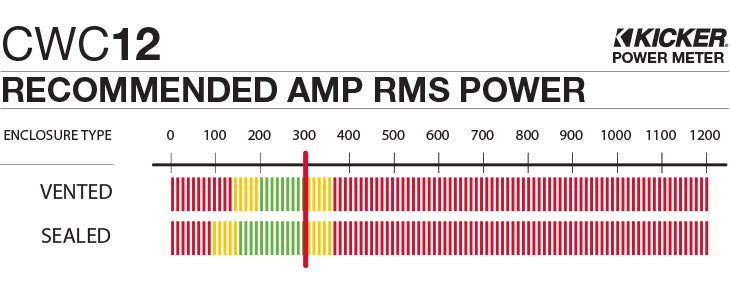

| Recommended Amplifier Power [watts RMS] | 150-300 |
| Peak Power Handling [watts, per ANSI/CTA-2031-A] | 600 |
| Sensitivity [dB 1w/1m] | 87.3 |
| Rated Impedance [OHMS] | 4 SVC |
| Fs [Hz] | 30.4 |
| Frequency Response [Hz] | 27-500 |
| Outer Frame Dimension [in, cm] | 12-5/8, 32 |
| Mounting Depth [in, cm] | 5-3/4, 14.6 |
| Mounting Cutout [in, cm] | 11, 27.9 |
| Max Rec Sealed Box Vol [cu. ft, liters | 3.5, 99.1 |
| Min Rec Sealed Box Vol [cu. ft, liters | 1.25, 35.4 |
| Max Rec Vented Box Vol [cu. ft, liters) | 2.25, 63.7 |
| Min Rec Vented Box Vol [cu. ft, liters] | 1.75, 49.6 |
