Kicker Car Subwoofer 51CWQ104
The KICKER CompQ™ Subwoofer delivers on all of the power, capacity and performance of its square counterpart L7™, only utilizing a round basket and cone.
The 10" CompQ 4-Ohm
The CompQ 10" Subwoofer is a perfect selection for strong, tight bass that deliver unparalleled accuracy, with extremely musical bass. An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent – all without a hint of distortion. The CompQ 10-Inch Subwoofer works best with a sealed or ported enclosure with 800 watts of recommended power. See below for more details.
Specifications
| CNC Software | Comp6.75-15.DXF - for subwoofer hole cutouts |
|---|---|
| 3D Printing Software | Comp6.75-15.SLDPRT - 3D-printing of grille spacers |
| Woofer (in, mm) | 10, 25 |
| Impedance (Ohms) | 4 DVC |

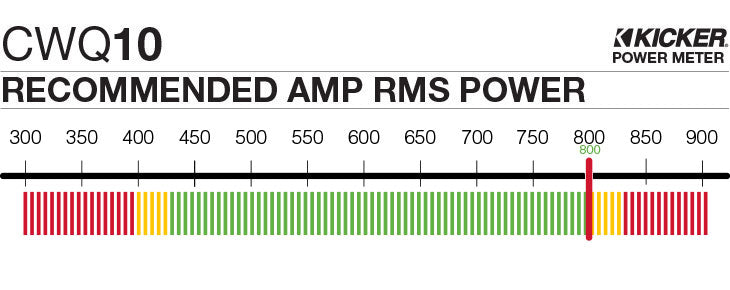

| Recommended Amp Power (watts RMS) | 400-800 |
| Frequency Response (Hz) | 24-100 |
| Sensitivity (1W, 1m) | 84.5 |
| Xmax (mm) | 19.7 |
| Mounting Depth (in, mm) | 6-3/8, 16.2 |
| Mounting Diameter (in, mm) | 9-3/16, 23.4 |
| Sealed Enclosure Volume Min (cu. ft., L) | 0.66, 18.7 |
| Box Volume [ft³, L] | .66 (18.7) |
| Panel A [in, cm] | 12x12, 30.5x30.5 |
| Panel B [in, cm] | 12x10.5, 30.5x26.7 |
| Panel C [in, cm] | 10.5x10.5, 26.7x26.7 |
| Sealed Enclosure Volume Max (cu. ft., L) | 1.25, 35.4 |
| Vented Enclosure Volume Min (cu. ft., L) | 1.25, 35.4 |
| Vented Enclosure Volume Max (cu. ft., L) | 2.25, 63.7 |
