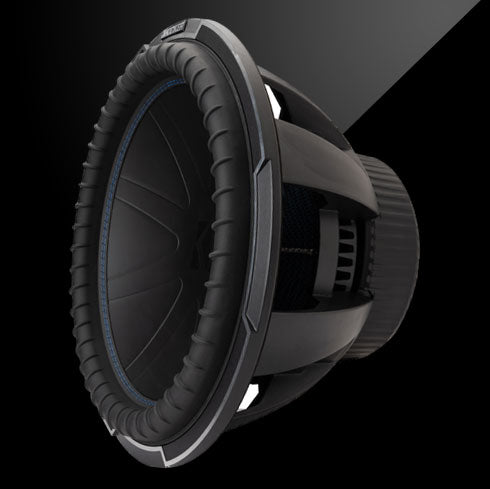

Kicker Car Subwoofer 51CWQ152
The KICKER CompQ™ Subwoofer delivers on all of the power, capacity and performance of its square counterpart L7™, only utilizing a round basket and cone.
The 15" CompQ 2-Ohm
The CompQ 15" Subwoofer is the pinnacle of our round speaker line, with nearly identical construction and performance as our L7 square subs.
Built for high power handling and extremely accurate bass reproduction, this KICKER sub features Ribbed Santoprene® surrounds and a BlueLace™ large-diameter progressive roll spider for extreme flexibility at any volume level.
The CompQ 15" works best with a sealed or ported enclosure with 1200 watts of recommended power. See below for more details.
Specifications
| CNC Software | Comp6.75-15.DXF - for subwoofer hole cutouts |
|---|---|
| 3D Printing Software | Comp6.75-15.SLDPRT - 3D-printing of grille spacers |
| Woofer (in, mm) | 15, 38 |
| Impedance (Ohms) | 2 DVC |

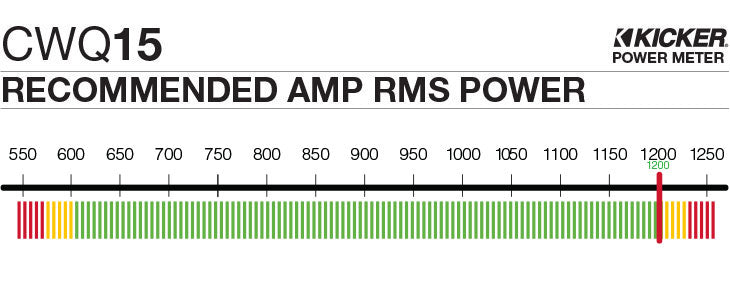

| Recommended Amp Power (watts RMS) | 600-1200 |
| Frequency Response (Hz) | 18-100 |
| Sensitivity (1W, 1m) | 88 |
| Xmax (mm) | 23.7 |
| Mounting Depth (in, mm) | 8-15/1, 22.6 |
| Mounting Diameter (in, mm) | 13-7/8, 35.2 |
| Sealed Enclosure Volume Min (cu. ft., L) | 1.5, 42.5 |
| Box Volume [ft³, L] | 1.5, 42.5 |
| Panel A [in, cm] | 16.5x16.5, 41.9x41.9 |
| Panel B [in, cm] | 16.5x11.5, 41.9x29.2 |
| Panel C [in, cm] | 15x11.5, 38.1x29.2 |
| Sealed Enclosure Volume Max (cu. ft., L) | 6.0, 170 |
| Vented Enclosure Volume Min (cu. ft., L) | 3.0, 85 |
| Vented Enclosure Volume Max (cu. ft., L) | 6.0, 170 |
