Kicker Car Subwoofer 52CVR102
The KICKER® CompVR® Subwoofer gives you incredible bang for the buck. Emphasis on bang!

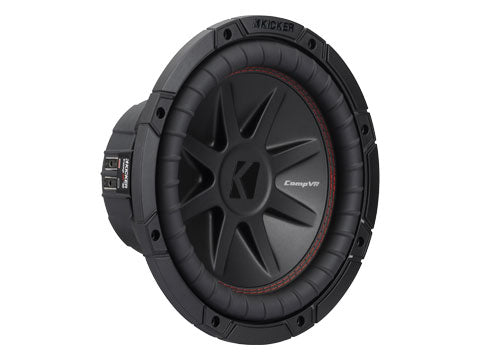

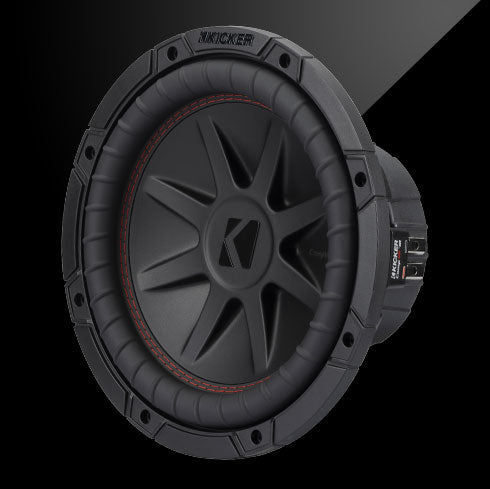

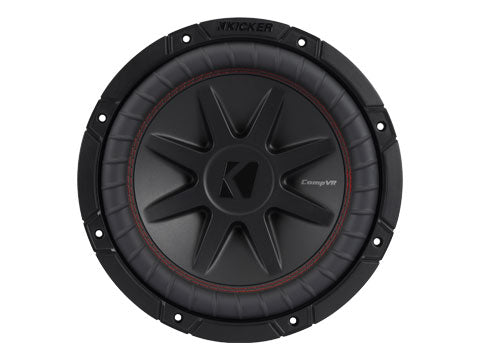

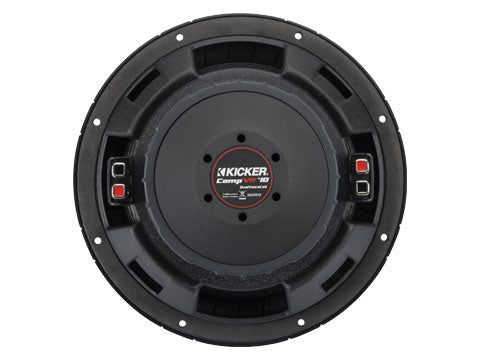

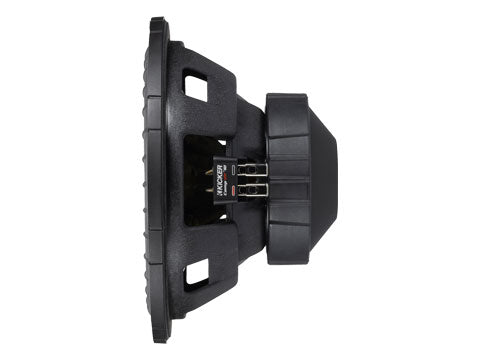

10" CompVR 2 Ohm
The CompVR 10-Inch Subwoofer is a 2Ω dual voice coil design, built for easy wiring.
The reengineered CompVR gets earth-shattering bass to you by engineering a stable base and a cool, powerful motor. Powerful magnets and dual high-temp voice coils move a stiff polypropylene cone, while perimeter venting keeps the air moving around the motor. You get strong bass that keeps on bumping day in – day out.
The CompVR Subwoofer works best with a sealed or ported enclosure for its substantial power handling.
Specifications
| CNC Software | Comp6.75-15.DXF - for subwoofer hole cutouts |
|---|---|
| 3D Printing Software | Comp6.75-15.SLDPRT - 3D-printing of grille spacers |
| SIZE [in, cm] | 10, 25 |
| IMPEDANCE [Ohms] | 2 DVC |

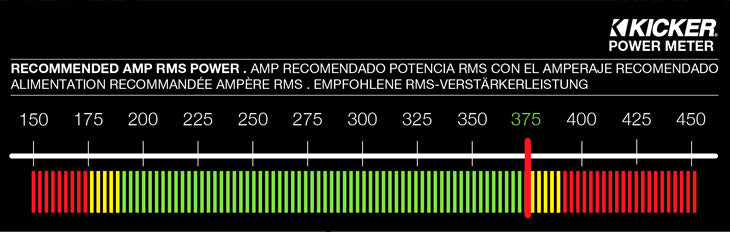

| Recommended Amplifier Power (watts RMS) | 180-375 |
| Peak Power (watts, per ANSI/CTA-2031-A) | 750 |
| SENSITIVITY [dB 1w/1m] | 83.6 |
| MOUNTING DEPTH [in, cm] | 5-1/2, 14 |
| MOUNTING DIAMETER [in, cm] | 9-3/16, 23.3 |
| MIN SEALED BOX VOL [cu. ft, L] | 0.8, 22.7 |
| MAX SEALED BOX VOL [cu. ft, L] | 3, 85 |
| MIN VENTED BOX VOL [cu. ft, L] | 1.25, 35.4 |
| MAX VENTED BOX VOL [cu. ft, L] | 1.75, 49.6 |
