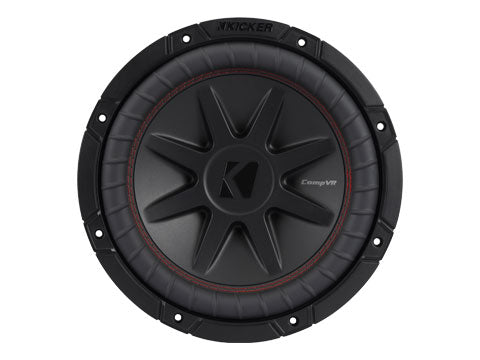

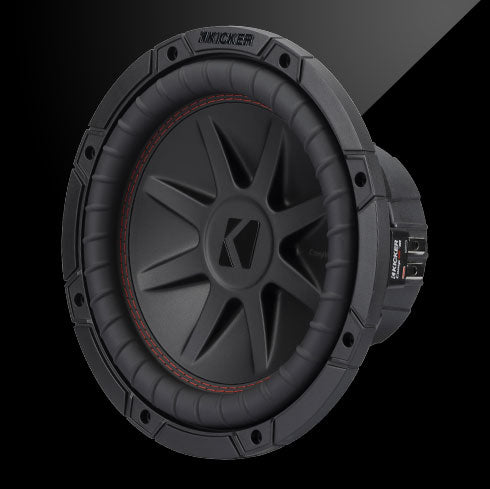

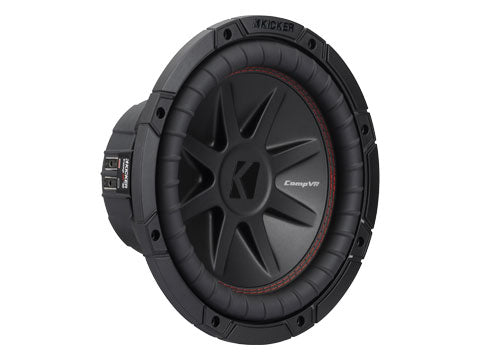

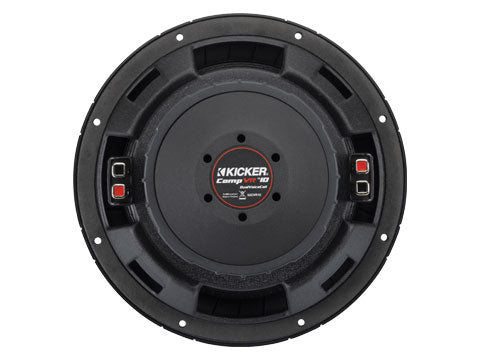

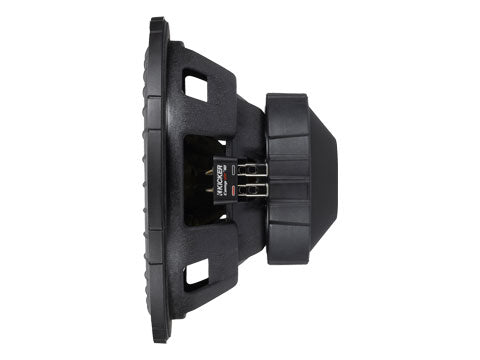

Kicker Car Subwoofer 52CVR104
The KICKER® CompVR® Subwoofer gives you incredible bang for the buck. Emphasis on bang!
10" CompVR 4 Ohm
The reengineered CompVR 10-Inch Subwoofer is a 4Ω dual voice coil design, built to get the most out of your amp.
The dual voice coil design adds a new level of wiring flexibility, to get the most out of CX Series amplifier, no matter how many subs you add to your ride.
The CompVR Subwoofer works best with a sealed or ported enclosure for its substantial power handling.
Specifications
| CNC Software | Comp6.75-15.DXF - for subwoofer hole cutouts |
|---|---|
| 3D Printing Software | Comp6.75-15.SLDPRT - 3D-printing of grille spacers |
| SIZE [in, cm] | 10, 25 |
| IMPEDANCE [Ohms] | 4 DVC |

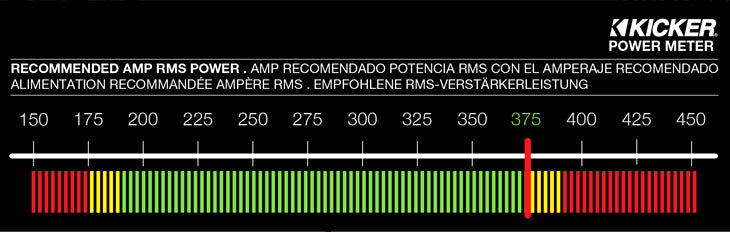

| Recommended Amplifier Power (watts RMS) | 180-375 |
| Peak Power (watts, per ANSI/CTA-2031-A) | 750 |
| SENSITIVITY [dB 1w/1m] | 83.6 |
| MOUNTING DEPTH [in, cm] | 5-1/2, 14 |
| MOUNTING DIAMETER [in, cm] | 9-3/16, 23.3 |
| MIN SEALED BOX VOL [cu. ft, L] | 0.8, 22.7 |
| MAX SEALED BOX VOL [cu. ft, L] | 3, 85 |
| MIN VENTED BOX VOL [cu. ft, L] | 1.25, 35.4 |
| MAX VENTED BOX VOL [cu. ft, L] | 1.75, 49.6 |
