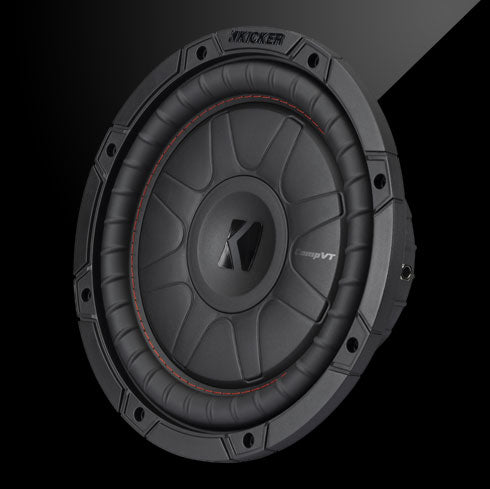

Kicker Car Subwoofer 52CVT102
The KICKER® CompVT® Subwoofer offers high power handling in a slimline design.
10" CompVT 2 Ohm
The CompVT 10-Inch Subwoofer is available as a 2Ω slimline driver.
New and improved, precise KICKER engineering allows the CompVT to pound with limited space. A proprietary four-layer voice coil collaborating with SoloKon™ cone technology, provides the ability to work with serious amounts of power without the bulk of a standard subwoofer.
The CompVT Subwoofer works best with a sealed or ported enclosure for its substantial power handling.
Specifications
| CNC Software | Comp6.75-15.DXF - for subwoofer hole cutouts |
|---|---|
| 3D Printing Software | Comp6.75-15.SLDPRT - 3D-printing of grille spacers |
| SIZE [in, cm] | 10, 25 |
| IMPEDANCE [Ohms] | 2 SVC |

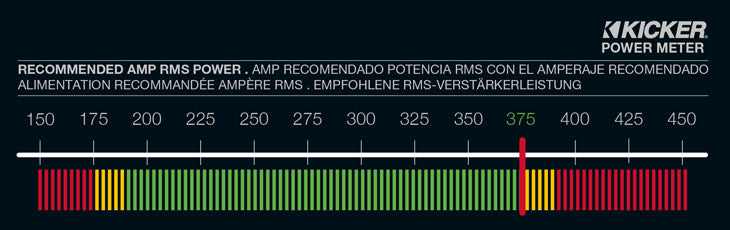

| Recommended Amplifier Power (watts RMS) | 180-375 |
| Peak Power (watts, per ANSI/CTA-2031-A) | 750 |
| SENSITIVITY [dB 1w/1m] | 87.2 |
| MOUNTING DEPTH [in, cm] | 4-1/4, 10.8 |
| MOUNTING DIAMETER [in, cm] | 9-3/16, 23.3 |
| MIN SEALED BOX VOL [cu. ft, L] | 0.8, 22.5 |
| MAX SEALED BOX VOL [cu. ft, L] | 3, 85 |
| MIN VENTED BOX VOL [cu. ft, L] | 1.25, 35.4 |
| MAX VENTED BOX VOL [cu. ft, L] | 1.75, 49.6 |
