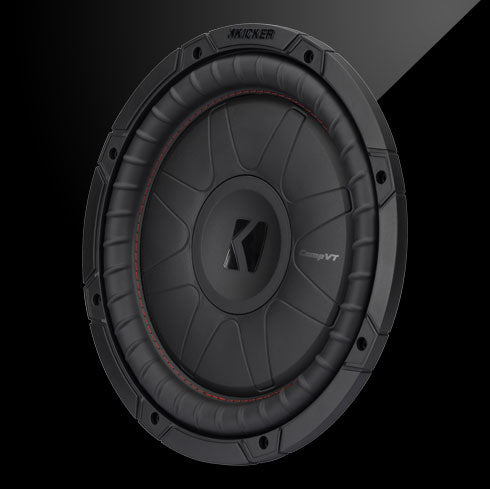

Kicker Car Subwoofer 52CVT122
The KICKER® CompVT™ Subwoofer offers high power handling in a slimline design.
12" CompVT 2 Ohm
The CompVT 12-Inch Subwoofer is available as a 2Ω slimline driver.
New and improved, precise KICKER engineering allows the CompVT to pound with limited space. A proprietary four-layer voice coil collaborating with SoloKon™ cone technology, provides the ability to work with serious amounts of power without the bulk of a standard subwoofer.
The CompVT Subwoofer works best with a sealed or ported enclosure for its substantial power handling.
Specifications
| CNC Software | Comp6.75-15.DXF - for subwoofer hole cutouts |
|---|---|
| 3D Printing Software | Comp6.75-15.SLDPRT - 3D-printing of grille spacers |
| SIZE [in, cm] | 12, 30 |
| IMPEDANCE [Ohms] | 2 SVC |

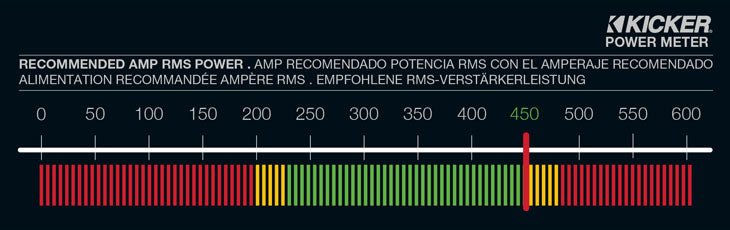

| Recommended Amplifier Power (watts RMS) | 225-450 |
| Peak Power (watts, per ANSI/CTA-2031-A) | 900 |
| SENSITIVITY [dB 1w/1m] | 87.1 |

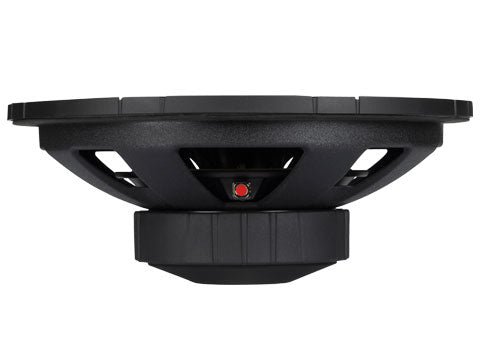

| MOUNTING DEPTH [in, cm] | 4-3/8, 11.1 |
| MOUNTING DIAMETER [in, cm] | 11, 28.1 |
| MIN SEALED BOX VOL [cu. ft, L] | 1, 27.9 |
| MAX SEALED BOX VOL [cu. ft, L] | 4.6, 130 |
| MIN VENTED BOX VOL [cu. ft, L] | 1.75, 49.6 |
| MAX VENTED BOX VOL [cu. ft, L] | 2.25, 63.7 |
