Kicker Car Subwoofer 52L7XS121
Are you ready for KICKER's pinnacle subwoofer line? It just keeps getting bigger and badder!
Incomparable
SoloXS always promises high-excursion design, made for ultra-deep bass at very high volume. It’s developed like no other KICKER subwoofer.
Features:
- Field-Replaceable Recone Kit – cone/voice coil/spider assembly, and forget the glue
- KICKER exclusive Forced Air Cooling™
- Three-inch (12" and 15") and four-inch (18") aluminum voice-coil former
- Extra-large dual-spider suspension
- Double-pressed pulp cone
- Next-gen surround made from proprietary NBR material
- Custom rubber boot for oversized ferrite magnet
- Max-cooling, cast-aluminum basket
- Single 8 AWG push terminal and dual 4 AWG terminal block
- Dual tinsel leads with considerably more strands than L7X

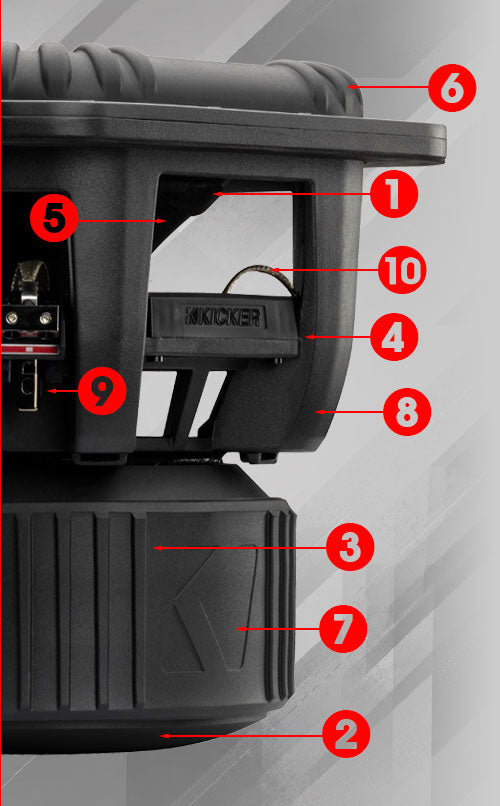

*SoloXS12" shown in diagram.
Specifications
| CNC Files | L7XS.DXF - for subwoofer hole cutouts |
|---|---|
| 3D Print Files | L7XS.SLDPRT - 3D-printing of grille spacers |
| Size (in, cm) | 12, 30 |
| Rated Impedance (Ohms) | 1 DVC |
| Rec Amp Power RMS | 1500-3000 |
| Frequency Response | 20-100 |
| Magnet Diameter (in, cm) | 9.85, 25 |
| Total Magnet Weight (oz, kg) | 705, 20 |
| Voice Coil Diameter (in, mm) | 3, 75 |
| Voice Coil Winding Width (in, mm) | 3.4, 86.2 |
| Top Plate Thickness (in, mm) | 0.8, 20 |
| Xmax (in, mm) | 1.71, 43.1 |
| Mounting Cutout (in, cm) | 11-1/16, 28.1 |
| Mounting Depth (in, cm) | 10-1/8, 25.7 |
| Recommended Vented Box Volume (Cu. Ft., L) | 3, 84.9 |
| Port Opening (in x in, cm x cm) | 3.5 x 13, 9 x 33 |
| Port Length (in, cm) | 36.5, 93 |
| Vented Enclosure Tuning Frequency (Hz) | 31 |
