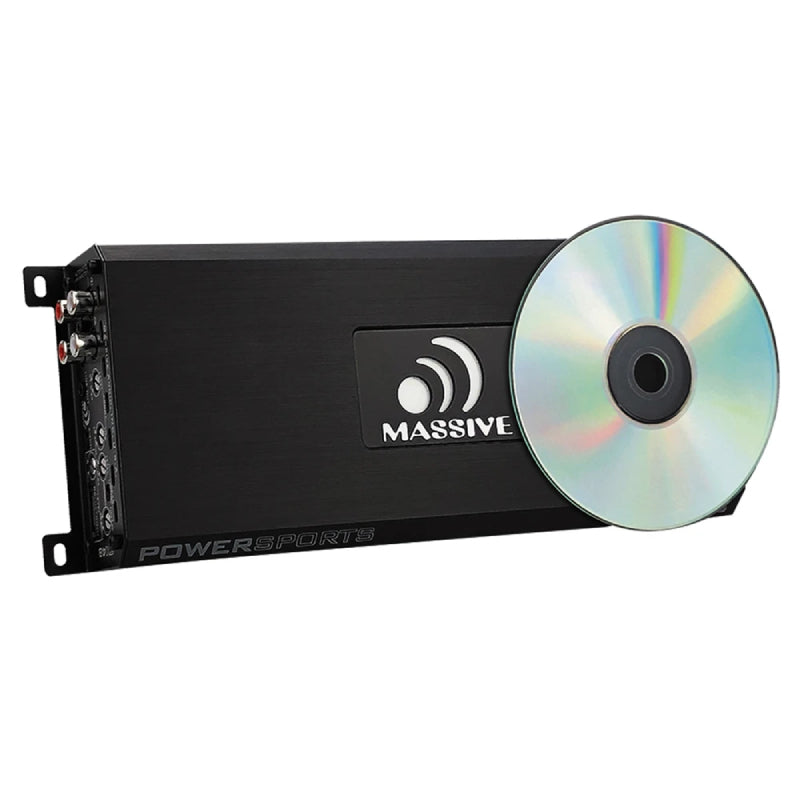

Massive Audio Marine amplifier TX48

Massive Audio TX48 - Trident Series 1600W Peak Power Handling, 4-channel Marine Amplifier

We are a Massive Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• 4-channel Marine Amplifier
• User Manual

Clear Audio Performance

The Massive Audio TX48 marine amplifier is a high-quality and reliable amplifier designed specifically for marine environments. It is engineered to deliver powerful and clear audio performance, making it an excellent choice for marine audio systems.The TX48 marine amplifier is constructed with marine-grade materials and features a conformal-coated circuit board, ensuring resistance to moisture, salt, and UV exposure. This protective design makes it highly durable and capable of withstanding the harsh marine environment.

Thermal Protection and Short Circuit Protection,

With a continuous power output of 400 watts at 2 ohms per channel, the TX48 marine amplifier provides ample power to drive your marine speakers or subwoofers with precision and impact. It features a compact design, allowing for easy installation in tight spaces commonly found on boats and other watercraft. Additionally, the marine amplifier incorporates advanced protection features such as thermal protection and short circuit protection, safeguarding it against potential damage and ensuring reliable operation on your boat or watercraft.

Preferences and Speaker Requirements

This marine amplifier offers four channels, giving you the flexibility to power multiple speakers or bridge the channels for a subwoofer. It includes adjustable sensitivity level controls, allowing you to fine-tune the audio output according to your preferences and speaker requirements.

SPECIFICATIONS

Maximum Power : 800 Watts

Low Frequency Response : 10 Hz

High Frequency Response : 25000 Hz

Number of Channels : 4

Frequency Response : 10-25000 Hz

Built In Crossovers : Yes

Channel Separation : Yes

FEATURES

Features:

Extreme Power in a Mini Compact Footprint
Full Range Digital Class
Conformal Coated PC Board to Resist Moisture, Dust and Extreme Heat
4 Layers PCB design with SMD parts
2/4 Channel Switcher for Input Configuration
Full Range Line Output for Monoblock Linking
LPF/HPF/FULL Crossover Switching
Built-in Noise Reduction Circuitry
Full MOSFET with High Grade Switching Devices
Bluetooth Audio Streaming with Optional (UBT1) SATA Dongle
Built-in Auto Sensing Turn On Function (Hi-Inputs)
12V Remote Output for External Devices (Hi-Inputs)
Advanced 5 Way Protection Circuitry
World Wide Standards Compliant (RoHS, E-Mark, CTA-2006, CE)


Specifications:

Peak Output Power @ 14.4V: 800W x 2 Max
1 Ohm RMS: n/a
2 Ohm RMS: 400W x 4
4 Ohm RMS: 200W x 4
4 Ohm Bridged: 800W x 2
Input Level: 0.2~9.0v
Freq. Response: 10Hz~25KHz
THD at 4 Ohm Load 30% Rated Power: <0.03%
S/N Ratio: >90dB
Bass Boost: 0~12dB
Minimum Load: 2 Ohm Stereo
Gain Remote: n/a
Dimensions: 1.6" x 4.25" x 10.75"

UPC: 0623169631580
Weight: 10
