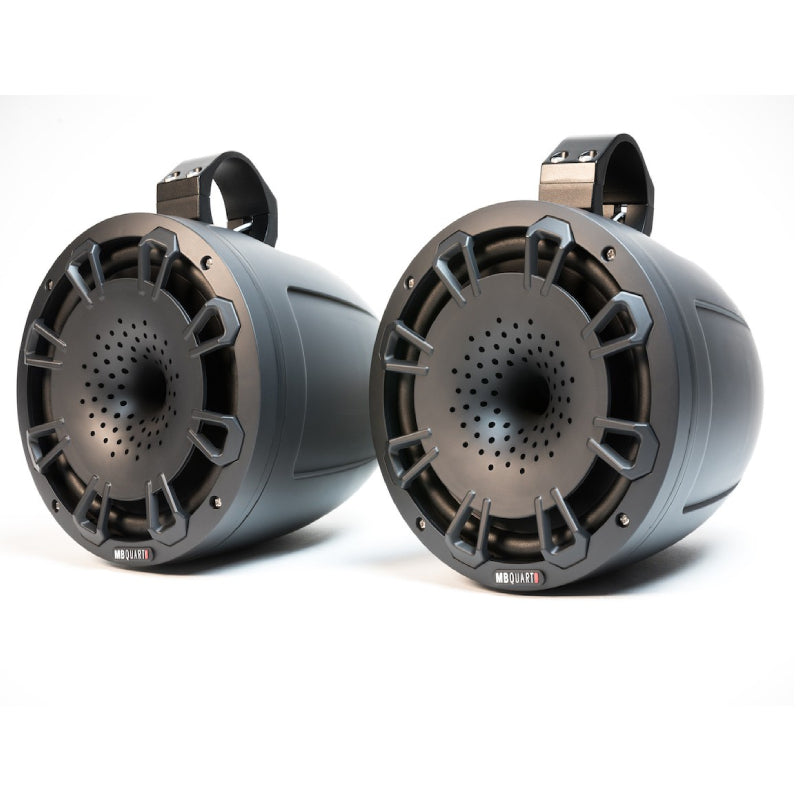

MB Quart NHT1-120BPR - 8" 180W Peak Power Handling, 4-Ohms, 2-Way Marine Speaker

We are a MB Quart authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• 8" 2-Way Marine Speaker
• Owner's Manual

Certified High End 8 Inch Compression Horns

MB Quart marine and powersports certified high end 8 inch Compression Horns for wake tower and roll cage applications. Speakers are mounted in a composite, steel reinforced enclosure featuring Ultra-High Sensitivity (UHS) technology with a Transparent Acoustic Lens Waveguide (TALWave) horn to smooth mid range frequencies and balance the sound across the audio band. Packaged as pairs (Black)







SPECIFICATIONS

Diameter : 8 Inch

Sensitivity : 92 dB

Impedance : 4 Ohm

Frequency Response : 20-24000 Hz

Peak Power Handling : 180 Watts

Color : Black

RMS Power Handling : 90 Watts

FEATURES

Features:

Marine Grade Protection / IPX Rating: LIFE SHIELD protected for water and dust. UV protected against sun fade.
Tweeters: 1 inch pure Titanium dome tweeter for very smooth musical response, high output with minimal required amplifier power.
Cone Material: 8 inch water resistant composite polypropylene cone with temperature stable Butyl rubber surround mounted on a lightweight composite frame.
Surround / Cone Coupling: Natural Butyl Rubber Surround remains musical in all weather. Does not stiffen in cold.
Voice Coil / Former Assembly: High temperature copper voice coil. Voice coil is high temperature copper, wound on a Kapton former which allows the voice coil to handle more power while remaining light in weight.
Spider: Water resistant, woven fiber composite spider to stabilize the cone and voice coil in all musical situations.
Cooling System: Front and rear venting allows air passage through the spider and back plate to exchange air over the voice coil.
Crossover: Conformal Coated, Butterworth 12dB per octave crossover with PTC (Positive Thermal Coefficient) tweeter protection. Smooth transition from high to lower frequencies remain musicial and not harsh or distorted.
Enclosure: Heavy duty injection molded ABS cast enclosure provides strength and improved bass response with increased volume while remaining very lightweight.
Frame: Composite ABS and glass fiber add strenth to the frame without adding distortions or harmonics that can affect the tonal quality of the speaker.
Motor: High energy Y30 strontium ferrite magnet for higher output with minimal amplifier power.
Grills: UV treated composite protects against sun fade and waterproof.
Hardware: Mounting hardware are Die Cast for strength and powder coated to resisted outdoor elements of sun, spray and dust. The mounting system between the pipe mount and the tower enclosure has an internal steel mounting plate for additional strength. Eleven mounting hardware options from 1.5" to 2.75” included. Centering ring allows the speakers to tip left/right when mounted to an arced mount.
Additional Features: Compression Horn: Overall volume is improved as much as +5dB over conventional speakers with coincident mounted compression horns. Wavelength Transparent Acoustic Lens improves midrange frequencies through the cone.


Specifiications:

Rms Power Handling: 90 Watts
Peak Power Handling: 180 Watts
Speaker Impedance: 4 Ohms
Frequency Response: 20hz-24khz
Sensitivity: 92db
Crossover Slope: 12db
Hardware: Eleven Mounting Hardware Options From 1.5" To 2.75” Included
Tower Length: 11.2 Inches (286mm)
Hang Height: 9.035 Inches (229.5mm)
Height: 8.4 Inches (215 Mm)
Width: 8.4 Inches (215 Mm)
Ipx Rating: Ipx67, Uva, Cea426b

UPC: 806576227533
Weight: 15
