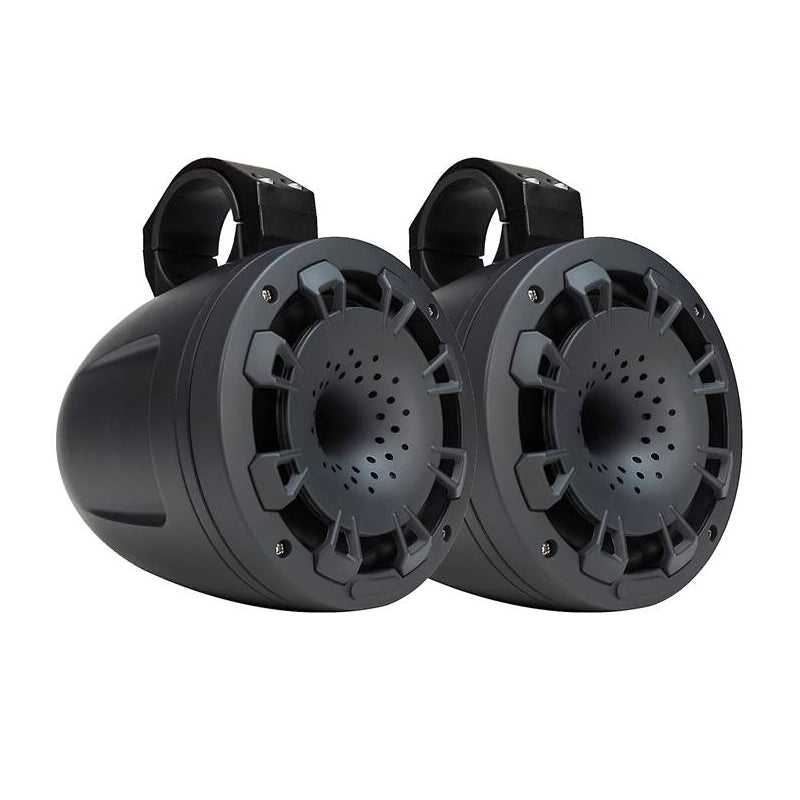

MB Quart Marine Speakers NHT1C-116B

MB Quart NHT1C-116B - Nautic Series 6.5" 150W Peak Power Handling, 4-Ohms Wake Tower Compression Horn Speaker

We are a MB Quart authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

•(2) Wake tower speakers
• Mounting bracket w/ 4 screws (pre-installed)
•(2) Metal bracket adapters
•(18) Two-piece rubber adapters
•(2) One-piece rubber adapter
•(4) Butt-connectors
• Quick Start Installation Guide
• Mounting clamp label sheet
• Owner's Manual

Bring Outstanding Audio

MB Quart's NHT1C-116B marine tower speakers bring outstanding audio to your ski boat or ATV. You'll find a compression horn tweeter for efficient sound and a marine-rated design that ensures that the party will go on and on. Designed for boating or powersports applications, these thunderous full-range 6-1/2" tower speakers combine outstanding audio performance with outdoor-ready reliability. They'll also fit a wide variety of bar sizes.

Perform in Extreme Conditions

These MB Quart tower speakers will perform in extreme conditions, with water-resistant components and super-strong composite baskets, magnet covers and grilles. The exterior surfaces are UV-resistant and ready to withstand broiling sunlight. Inside, the crossover network is conformal-coated to protect against fresh and salt water spray, not to mention dust and sand. In fact, your MB Quart speakers are IPX67-rated, which means they meet the highest standards of weather resistance. Your speaker comes with a die-cast, powder-coated mount that will resist sun, spray and dust. You'll also get a centering ring and 11 mounting hardware options that fit bars from 1-1/2" to 2-3/4".





SPECIFICATIONS

Diameter : 6.5 Inch

Sensitivity : 92 dB

Impedance : 4 Ohm

Frequency Response : 30-24000 Hz

Peak Power Handling : 150 Watts

Color : Black

RMS Power Handling : 75 Watts

FEATURES

Features:

MARINE GRADE PROTECTION: LIFE SHIELD

Protected for water and dirt. UV protected against sun fade.

TWEETER DOME MATERIAL: 1 Inch Pure Titanium Compression Diaphram

Very smooth musical response, with very high output with minimal required amplifier power

COMPRESSION HORN: Coincident Mounted Compression Horn

Overall volume is improved as much as +5dB over conventional speakers, Wavelength Transparent Acoustic Lens improves midrange frequencies through the cone

SURROUND: Natural Butyl Rubber

Remains musical in all weather. Does not stiffen in cold.

CONE:6.5 inch Composite Poly Cone

Water resistant composite polypropylene cone with temperature stable Butyl rubber surround mounted on a lightweight composite frame

VOICE COIL FORMER: High Temperature Voice Coil and Former

Voice coil is high temperature copper, wound on a Kapton former which allows the voice coil to handle more power while remaining light in weight.

SPIDER: Water resistant spider

Woven fiber composite spider to stabilize the cone and voice coil in all musical situations.

COOLING SYSTEM: Front and Rear Venting

Air passes through the spider and back plate to exchange air over the voice coil.

CROSSOVER TYPE: 12dB Butterworth

Smooth transition from high to lower frequencies remain musicial and not harsh or distorted

FRAME:Composite ABS and glass fiber frame

Composites add strenth to the frame without adding distortions or harmonics that can affect the tonal quality of the speaker

MOTOR: High Energy Y30 Motor assembly

High energy strontium ferrite magnet for higher output with minimal amplifier power

GRILLS: Composite

UV treated against sun fade and waterproof

MARINE CERTIFIED: YES

Longer life against harsh conditions. Protected against sun fade with UVA paint coating. Conformal coated crossover components protect against fresh and salt water spray as well as dust and sand.

IPX67: YES

Tested to the highest Marine and Motorsports standards for resisting the elements

TWEETER MATERIAL: Titanium Dome Tweeter

Very smooth musical response, high output with minimal required amplifier power

MARINE CERTIFIED CROSSOVER: Marine Certified Crossover

Conformal Coated, Butterworth 12dB per octave crossover with PTC (Positive Thermal Coefficient) tweeter protection

ENCLOSURE: Injection Molded Enclosure

Heavy duty ABS cast enclosure provides strength and improved bass response with increased volume while remaining very light weight

MOUNTING SYSTEM: Steel Reinforced

The mounting system between the pipe mount and the tower enclosure has an internal steel mounting plate for additional strength

CENTERING RING: YES

Centering ring allows the speakers to tip left/right when mounted to an arced mount

MOUNTING HARDWARE: Powder coated Die Cast Mounts

Mounting hardware are Die Cast for strength and powder coated to resisted outdoor elements of sun, spray and dust

MOUNTING HARDWARE OPTIONS: Flexible Mounting

Eleven mounting hardware options from 1.5" to 2.75” included



Specifications:

CERTIFICATIONS

IPX67, Conformal Coated, UVA Certified, CEA426B

RMS POWER HANDLING (CEA426B)

75 watts

PEAK POWER HANDLING (CEA426B)

150 watts

IMPEDANCE

4 ohm

FREQUENCY RESPONSE +/- 10DB

30Hz-24kHz

FREQUENCY RESPONSE +/- 3DB

45Hz - 22kHz

SENSITIVITY (1 WATT/1 METER)

92dB

TOWER LENGTH

8" (203.2mm)

HANG HEIGHT

7" (177.8mm)

HEIGHT

6.75" (171.4mm)

WIDTH

6.75" (171.4mm)

CERTIFICATIONS

IPX67, UVA Certified, CEA426B

PRODUCT DIMENSIONS

12 X 10.25 X 15.69 in (30 x 26 x 39.6 cm)

PRODUCT WEIGHT

7.5 lbs (3.4 kg)

UPC: 806576227137
Weight: 10
Authorized Internet Dealer




Warranty: 2 Year(s) Warranty.This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
