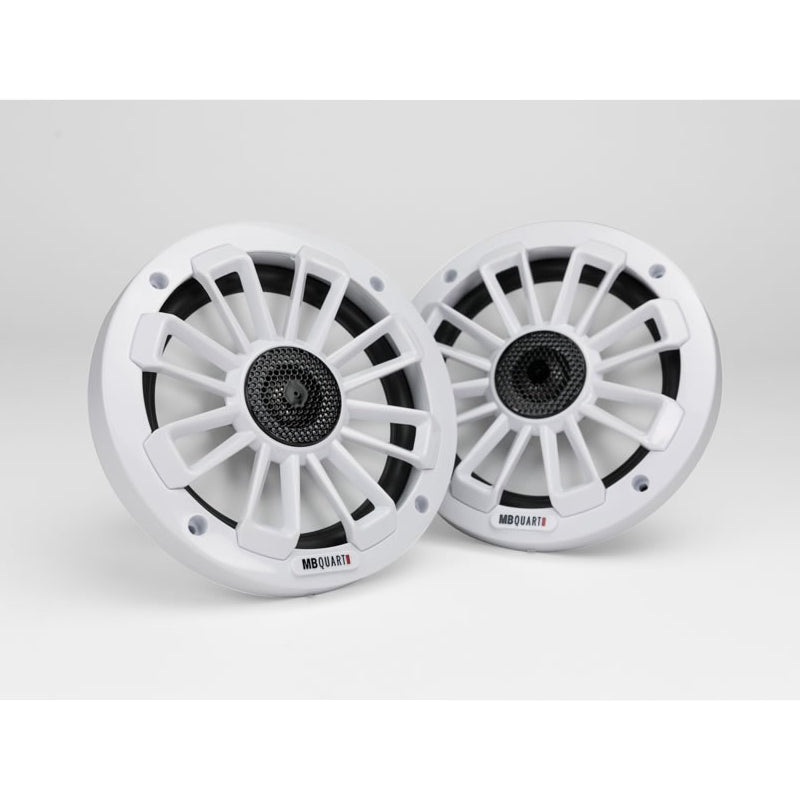

MB Quart Marine Speakers NK1-116W

MB Quart NK1-116W - Nautic Series 6.5" 120W Peak Power Handling 4 Ohms, 2-Way Coaxial Marine Speakers (white)

We are a MB Quart authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• Marine Speakers (white)
• Owner's Manual

Marine Certified

Ipx67: Longer Life Against Harsh Conditions. Protected Against Sun Fade With Uva Paint Coating. Conformal Coated Crossover Components Protect Against Fresh And Salt Water Spray As Well As Dust And Sand. 1" Pure Titanium Dome Tweeter: Very Smooth Musical Response, High Output With Minimal Required Amplifier Power, 6.5" Composite Poly Midrange: Uva Protected, Water Resistant Composite Polypropylene Cone With Temperature Stable Butyl Rubber Surround Mounted On A Lightweight Composite Frame, High Temperature Voice Coil And Former: Voice Coil Is High Temperature Copper, Wound On A Kapton Former Which Allows The Voice Coil To Handle More Power While Remaining Light In Weight, Water Resistant Spider: Aramid Fiber Composite Spider To Stabilize The Cone And Voice Coil In All Musical Situations.

Cooling System

Armid Fibers Do Not Degrade Over Time And Are Not Susceptible To Temperature Swings, Front And Rear Venting Allows Air Passage Through The Spider And Back Plate To Exchange Air Over The Voice Coil, Marine Certified Crossover: Conformal Coated, Butterworth 12db Per Octave Crossover With Ptc (Positive Thermal Coefficient) Tweeter Protection, Composite: Each Composite Frame Is Nonmagnetic That Provides Higher Efficiency And Is Non-resonance That Delivers Clear, Accurate Sound Quality Without Any Parasitic Distortion (Due To Frame Resonance). Composite Frames Are Also Not Susceptible To Harsh Marine Elements (Corrosion), That Greatly Improves Product Longevity In The Brutal Marine Environment, High Energy Motor Assembly: High Energy Iron Ferrite Magnet For Higher Output And Smaller Overall Size





SPECIFICATIONS

Diameter : 6.5 Inch

Sensitivity : 91 dB

Impedance : 4 Ohm

Frequency Response : 30-22000 Hz

Peak Power Handling : 120 Watts

Color : White

RMS Power Handling : 60 Watts

FEATURES

Features:

Marine Certified

Ipx67: Longer Life Against Harsh Conditions. Protected Against Sun Fade With Uva Paint Coating. Conformal Coated Crossover Components Protect Against Fresh And Salt Water Spray As Well As Dust And Sand.

Tweeter Dome Material

1" Pure Titanium Dome Tweeter: Very Smooth Musical Response, High Output With Minimal Required Amplifier Power.

Cone Material

6.5" Composite Poly Midrange: Uva Protected, Water Resistant Composite Polypropylene Cone With Temperature Stable Butyl Rubber Surround Mounted On A Lightweight Composite Frame.

Voice Coil Former

High Temperature Voice Coil And Former: Voice Coil Is High Temperature Copper, Wound On A Kapton Former Which Allows The Voice Coil To Handle More Power While Remaining Light In Weight.

Spider

Water Resistant Spider: Aramid Fiber Composite Spider To Stabilize The Cone And Voice Coil In All Musical Situations. Armid Fibers Do Not Degrade Over Time And Are Not Susceptible To Temperature Swings.

Cooling System

Front And Rear Venting Allows Air Passage Through The Spider And Back Plate To Exchange Air Over The Voice Coil.

Crossover

Marine Certified Crossover: Conformal Coated, Butterworth 12db Per Octave Crossover With Ptc (Positive Thermal Coefficient) Tweeter Protection.

Frame

Composite: Each Composite Frame Is Nonmagnetic That Provides Higher Efficiency And Is Non-resonance That Delivers Clear, Accurate Sound Quality Without Any Parasitic Distortion (Due To Frame Resonance). Composite Frames Are Also Not Susceptible To Harsh Marine Elements (Corrosion), That Greatly Improves Product Longevity In The Brutal Marine Environment.

Motor

High Energy Motor Assembly: High Energy Iron Ferrite Magnet For Higher Output And Smaller Overall Size.


Specifications:

Rms Power Handling: 60
Peak Power Handling: 120
Speaker Impedance: 4
Frequency Response: 30-22khz
Sensitivity: 91db
Mounting Diameter / Cut Out: 5.59" (141.9mm)
Outside Diameter: 6.8" (174.5mm)
Mounting Depth / Chassis Depth: 3.05" (77.6mm)
Mounting Height With Grill & Gasket: 1.1" (27.8mm)
Ipx Rating: Ipx67, Uva Certified, Cea426b: Tested To The Highest Marine And Motorsports Standards For Resisting The Elements
Dimensions (In): 6.58 X 6.58 X 4.16
Weight (Lbs): 2.1

UPC: 806576226895
Weight: 10
Authorized Internet Dealer




Warranty: 2 Year(s) Warranty.This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
