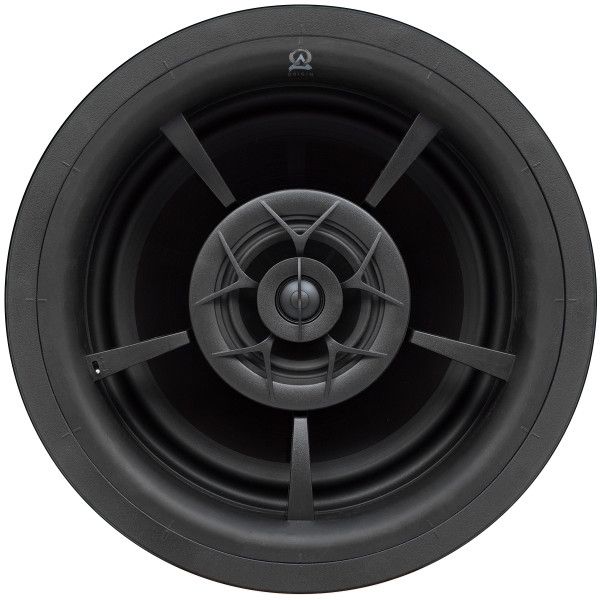

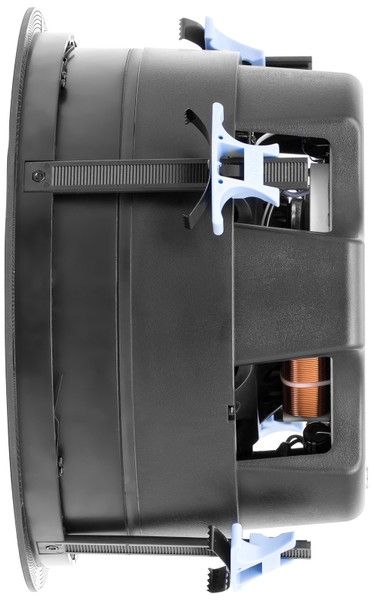

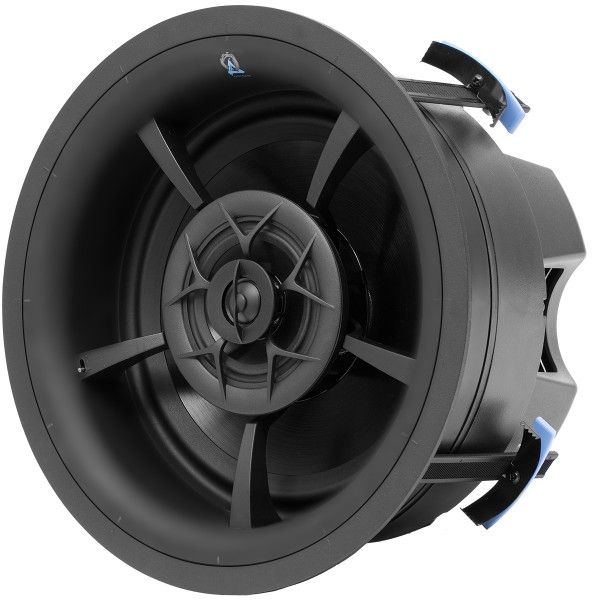

Origin Acoustics Explorer 10" In-Ceiling Speaker D105EX
WOS Pick What these speakers do in 10 seconds — expand for full specs.
- BrandOrigin Acoustics
- SKUD105EX
- TypeIn-Ceiling Speakers
- Ohms6 ohms
Mei says"Speakers are where the sound actually happens. Right size + power match = instant upgrade."
The stuff you'll actually notice
- Type: In-Ceiling Speakers.
Product description
These loudspeakers are complete updates to our award-winning Director & Composer Collections. Designed for saltwater and sea spray from the beginning, these speakers will hold up in wet rooms, water-front patios, and of course luxury sea-craft.
Specifications
| Model Number | D105EX |
|---|---|
| Part Number | SCD100500EX |
| Tweeter Diameter | 1" (25mm) |
| Tweeter Dome | Aluminum |
| Woofer Diameter | 10" (254mm) |
| Woofer Cone | IMG |
| Frequency Response | 28Hz-20kHz |
| Recommended Amplifier Power | 50 watts - 150 watts |
| Sensitivity | 92dB +/- 3dB |
| Depth | 6.22" (158mm) |
| Diameter | 11.26" (286mm) |
| Cutout Diameter | 10.375" (264mm) |
| Speaker Series | ThinFit/Explorer |
| Nominal Impedance | 6 ohm minimum |
| Color | Black |
| Color/Finish Name | Black |
| Speaker Type | In-Ceiling Speakers |
| Impedance | 6 ohms |
| Sensitivity | 92 |
| Width (in.) | 11.26 |
| Depth (in.) | 6.22 |
| Height (in.) | 11.26 |
| Cut Out Width | 10.38 |
| Cut Out Height | 10.38 |
| Collection | Explorer |
Documents
Speaker specs
| Speaker Type | In-Ceiling Speakers |
|---|---|
| Speaker Size (Mid) | 10" |
| Impedance | 6 ohms |
| Sensitivity | 92dB +/- 3dB |
Build & install
Weather & environment
Vehicle fitment
| Model | D105EX |
|---|
