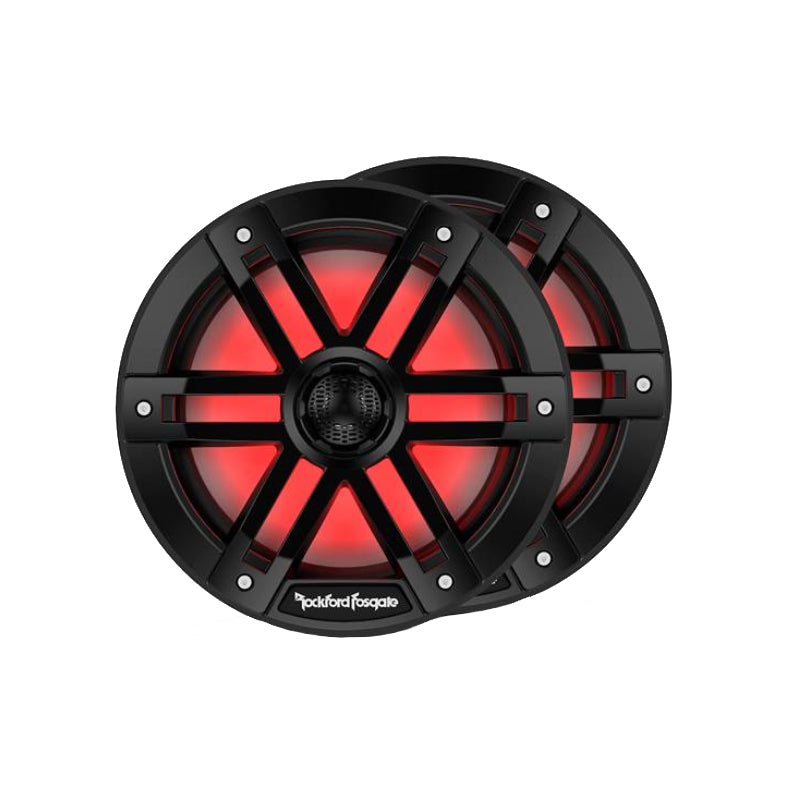

Rockford Fosgate Marine Speakers M1-8B

Rockford Fosgate M1-8B M1 Series 8" 600W Peak Power Handling at 4 Ohms, 2-way Coaxial Marine/Powersports Speaker

We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• (2) 2-way marine speakers
•(2) 11" LED power harnesses with 4-pin Deutsch connectors on one end
•(12) 1-5/8" Stainless steel Allen head screws
•(2) 3mm Allen head bits
• (1) 3.5mm Drill bit
• (1) Rockford Fosgate contact information
• Owner's Manual

Reliable Bass Performance

The Rockford Fosgate M1-8B is an 8-inch marine-grade subwoofer designed to deliver powerful and reliable bass performance in marine audio systems. It is part of Rockford Fosgate's M1 series, known for its durability and exceptional sound quality in marine environments.

Stainless Steel Grille

The M1-8B features a stainless steel grille that protects the subwoofer while adding a sleek and stylish look to your marine audio system. The grille is designed to withstand exposure to salt, moisture, and UV rays, ensuring long-lasting durability.Built with a rugged and weather-resistant design, the M1-8B is precisely engineered to withstand the harsh conditions of the marine environment.

Marine Audio System

If you want to enhance your marine audio system with deep and powerful bass, the Rockford Fosgate M1-8B is an excellent choice. This subwoofer will elevate your boating experience with high-quality and impactful bass reproduction with its marine-grade construction, weather resistance, and robust performance.

UV-resistant Polypropylene Cone

ts UV-resistant polypropylene cone and Santoprene surround ensure longevity and provide accurate and impactful bass reproduction, even outdoors. Equipped with a corrosion-resistant and moisture-proof sealed motor structure, the M1-8B is built to handle the demands of the marine environment while maintaining reliable performance. Its integrated 6dB/octave crossover network ensures seamless integration with other speakers and optimizes the subwoofer's performance.

SPECIFICATIONS

Diameter : 8 Inch

Sensitivity : 92 dB

Impedance : 4 Ohm

Frequency Response : 35-22000 Hz

Peak Power Handling : 600 Watts

Color : Black

RMS Power Handling : 150 Watts

FEATURES

Features:

Marine Tested: Rockford Fosgate uses industry standard tests (ASTM B117 salt/fog and ASTM G154 UV) to ensure the M1-8B speakers are durable in the difficult marine environment.
Tweeters: The 1" balanced dome tweeters are made of LCP (liquid crystal polymer), a high strength/light weight material. The tweeters are bridge mounted, useful in a marine speaker because no opening through the middle of the woofer for the mounting post is needed.
LEDs: There are red, green, and blue LEDs in the back of the tweeter casing, to create a glow on the woofer cone. The LEDs can be powered individually, or in any combination you like. Depending on what combination of LED wires is connected, they light red, green, blue, yellow, pink, aqua, or white. A 12 volt power supply is needed to turn the LEDs on and a 1-amp fuse should be added in-line (fuse not included). The LEDs can also be controlled using Rockford Fosgate's LED Controller (item number 575PMXRGB, sold separately). Two LED power wire harnesses are included with 4-pin waterproof Deutsch DT Series connectors that plug into the speaker frames.
Speaker Terminals: In addition to standard male quick slide terminals, each speaker also has 2-pin waterproof Deutsch terminals. Speaker wire harnesses with 2-pin waterproof Deutsch DT Series connectors are not included.
ICC Crossover: The ICC (Integrated Concealed Crossover) simplifies installation and protects the crossover by concealing it inside the basket, creating a cleaner look and easier installation. The crossover has a 6 dB/octave slope.
VAST Surround: The Vertical Attach Surround Technique (VAST) increases a speaker's effective radiating cone area without increasing the size of the basket.
Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.
Stainless Steel: The mounting hardware is stainless steel to resist corrosion.


Specifications:

Speaker Type: 2-way Coax
Midrange Size (Nominal Diameter): 8"
Power Handling (RMS)

150 Watts RMS
600 Watts PEAK

Nominal Impedance (Ohms): 4-Ohms
Midrange Mounting Depth: 3.3" (83.9 mm)
Tweeter Size: 1" (25.4 mm)
Crossover: High Pass: 6dB/Octave
Sensitivity (dB @ 1W/1M): 92
Sensitivity (dB @ 2.83V/1M): 92
Frequency Response (Hz): 35 Hz - 22 kHz
Mounting Hardware: Stainless Steel
Grille/Trim Ring Included: Yes
Shipping Weight: 9.25 Lbs. (4.20 Kg.)
Optically clear UV stable RGB Lighting Encapsulation
Multiplexed RGB Input
1" (25mm) High Temp Kapton™ Woofer Voice Coil Former
Grill Integrated 1" (25 mm) LCP Balanced Dome Tweeter
Ultra-Bright, Wide Angle Tri-Color Surface Mount LED's with Flat Mold Lenses
Sealed motor design
Zinc Nickel-plated Marine grade brass connection terminals
100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
Proprietary Dual Function Input Terminals
Integrated Deutsch RGB and Speaker receptacles
Linear Synthetic Fiber Blend Spiders
Santoprene VAST Surround
VAST vertical attach surround technique increases effective radiating cone area up to 25%
Co-molded surround and mineral filled polypropylene cone body
6dB/Octave crossover network
Fully sealed integrated concealed crossover (ICC) network
2-Year Warranty



UPC: 780687354305
Weight: 10
