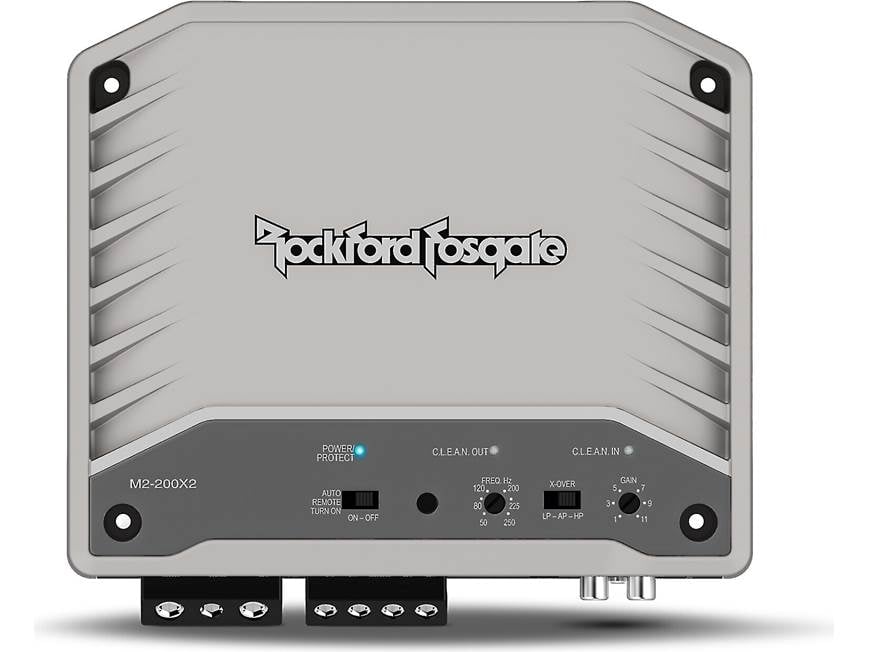

Rockford Fosgate Marine amplifier M2-200X2

Product info:2-channel marine amplifier50 watts RMS x 2 at 4 ohms100 watts RMS x 2 at 2 ohms200 watts RMS x 1 bridged at 4 ohms (4-ohm stable in bridged mode)CTA-2006 compliantClass-D amplifier designvariable high- and low-pass filters (50-250 Hz, 12 dB/octave)marine features:Element Ready™ chassis and conformal-coated PC boardsUV stable powder coated cast aluminum heatsinkzinc nickel-plated marine grade brass connection terminalsMore Info:C.L.E.A.N. gain setup system includes clip lightsauto remote turn-onpreamp and speaker-level inputspreamp outputswiring, fuse, and hardware not included with amplifier4-gauge power and ground leads and a 30-amp fuse recommendeddimensions: 8-1/8"W x 2"H x 7-3/4"Dwarranty: 2 years60-day returnsMFR # M2-200X2Item # 575M2200X2 Read more

Rockford Fosgate M2-200X2 M2 Series 2-Channel 100W RMS x 2 at 2-Ohms, Class-D Marine/Powersports Car Amplifier

We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• 2-Channel Class-D Marine Amplifier
• 7" Speaker input harness
• 3mm Hex key
• (4) 3/4" Screws
• 4 Flat washers
• Certificate of Performance Verification
• Rockford Fosgate contact information
• Owner's Manual





Marine-Ready Power and Protection

Take your audio anywhere with Element Ready™ durability, marine-grade brass terminals, and a conformal-coated circuit board built to resist dust and water. Stay in control with C.L.E.A.N. clip detection and indicator LEDs, enjoy precision-tuned sound via AudioGraph PowerCube, and keep your amp cool and stylish with a UV-stable powder-coated aluminum heatsink.

Reliable Power and Perfectly Tuned

Experience seamless integration with OEM and aftermarket radios, backed by RATS-tested reliability and low-impedance stability for demanding setups. Enjoy easy access with a top-mounted control panel, Auto-Sense bypass for RAP-equipped vehicles, built-in short circuit and over-current protection, and fully adjustable 12 dB/octave Butterworth crossovers to tailor your sound perfectly.

Precision Performance and Hassle-Free Installation

Enjoy noise-free audio with balanced differential inputs, precise bass control via a variable infrasonic filter, and effortless auto turn-on with Auto-Sense and remote out. Keep installations clean with integrated power and speaker terminals, stay cool with an advanced heatsink, trust certified CEA-2006 and CE compliance, and expand your system easily with RCA pass-thru outputs.

SPECIFICATIONS

Maximum Power : 200 Watts

Low Frequency Response : 50-250 Hz

High Frequency Response : 50-250 Hz

Number of Channels : 2

Frequency Response : 20-20000 Hz

Built In Crossovers : Yes

RMS Power Output : 2x100 Watts

Amplifier Class : D

Fuse Rating : 30 A

FEATURES

Features:

Secure Connections: Zinc Nickel-plated marine-grade brass connection terminals
Outdoor Armor: Element Ready™ design for complete environmental protection
Smart Signal Alerts: C.L.E.A.N. input/output clip detection and indicator LEDs
Precision Tuned: Optimized using AudioGraph PowerCube measurement tool
Stay Cool, Look Cool: UV-stable powder-coated cast aluminum heatsink
Built to Survive: Conformal-coated circuit board for dust and water defense
Seamless Integration: Compatible with OEM and aftermarket radios
Tested Tough: RATS (Rockford Automated Testing System) quality certified
Power You Can Trust: Low impedance stability for demanding setups
Easy Access: Top-mounted control panel for quick adjustments
Smart Bypass: Auto-Sense switch for vehicles with RAP (Retained Accessory Power)
Safety First: Short circuit and over-current protection built-in
Tailor Your Sound: Fully adjustable 12 dB/octave high and low-pass Butterworth crossovers
Noise-Free Performance: Balanced differential inputs eliminate interference
Deep Control: Variable infrasonic filter for precise tuning
Auto Wake-Up: "Auto-Sense" turn-on with remote out (high-level in)
Clean & Organized: Integrated power and speaker terminals for neat installs
Focused Cooling: Advanced heatsink design around the hottest components
Certified Quality: CEA-2006 and CE compliant standards
Expand with Ease: RCA pass-thru outputs for system flexibility


Specifications:

RMS Power Output (Watts x Channels): 50 x 2
Frequency Response at Rated RMS Power: 20-20k Hz
THD at Rated RMS Power: 1%
Signal to Noise Ratio: 80 dB
Input Voltage: 14.4v
Peak Power Output (Watts x Channels): N/A
Power at 2 Ohms (Watts x Channels): 100 x 2
Bridged Power (Watts x Channels): 200 x 1
Minimum Impedance Bridged: 4
Minimum Impedance Unbridged: 2
Amplifier Class: D
Low-Pass Crossover Frequency: 50-250 Hz
Low-Pass Slope (dB/octave): 12 dB/octave
High-Pass Crossover Frequency: 50-250 Hz
High-Pass Slope (dB/octave): 12 dB/octave
Bass Boost: No
Bass Boost Frequency: N/A
Fan Cooled: No
Fuse Rating: 30
Speaker Level Inputs: Yes
Preamp Outputs: 2
Height (inches): 2
Width (inches): 8-1/8
Depth (inches): 7-3/4

UPC: 780687358297
Weight: 5
Authorized Internet Dealer




Warranty: 2 Year(s) Warranty.This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
