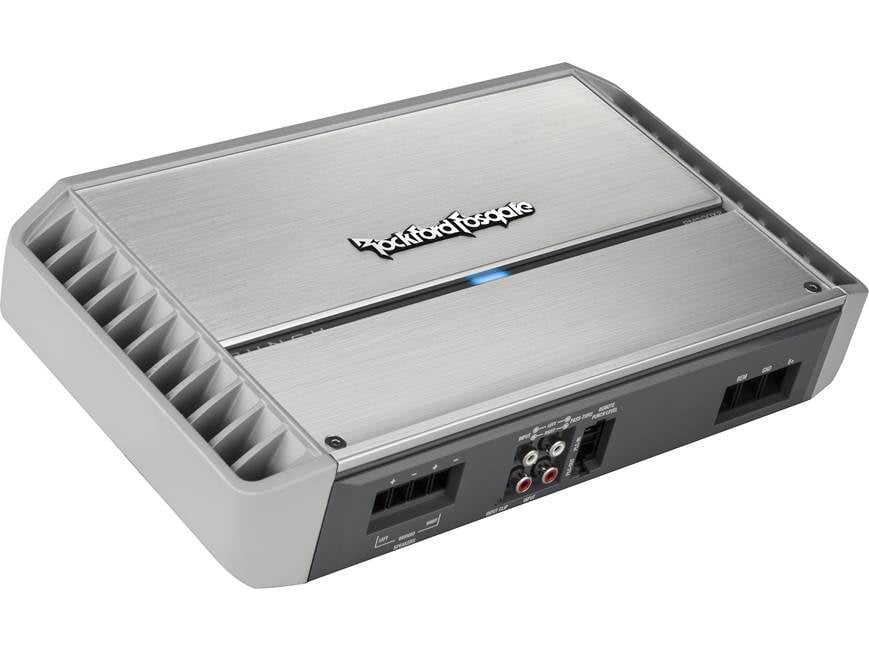

Rockford Fosgate Marine amplifier PM500X2

Product info:marine/powersports 2-channel amplifier150 watts RMS x 2 at 4 ohms250 watts RMS x 2 at 2 ohms500 watts RMS x 1 at 4 ohms (bridged)CEA-2006 compliantClass AB amp technologymarine-grade stainless steel hardwareRCA preamp inputsspeaker-level inputs (speaker wire to RCA adapter required)variable low-pass and high-pass filtersC.L.E.A.N. set-up technology with LED input/output indicatorsconformal-coated circuit board — suitable for powersports and marine applicationshidden top-mount control panelfuse rating: 80A x 1 (fuse not included)frequency response: 20-20,000 Hzdimensions: 13-3/8"W x 2-7/16"H x 7-13/16"Dwarranty: 1 year60-day returnsMFR # PM500X2Item # 575PM500X2 Read more

Rockford Fosgate PM500X2 Punch Series 2-Channel 250W RMS x 2 at 2-Ohms, Class AB Marine/Powersports Amplifier

We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• 2-Channel marine amplifier
• 2.5mm Allen wrench
• (4) 1-1/2" Self-tapping screws
• Setup guide
• Certificate of Performance Verification
• Owner's Manual

Marine Amplifier

Rockford Fosgate designed their PM500X2 2-channel amplifier for marine, motorcycle, and powersports applications. This rugged, versatile amp can drive a pair of coaxial speakers, a set of component speakers, or a subwoofer or two.

Class A/B Amplifier

Using a Class AB design, the PM500X2 delivers outstanding performance from a compact package. It's built to stand up to outdoor life, too, with conformal-coated circuitry that withstands moisture and dirt and stainless steel hardware that won't succumb to corrosion. Rockford Fosgate also uses the innovative Maximum Efficiency Heat Sink Application (MEHSA3) construction process, which yields up to five times better heat transfer than traditional mounting techniques. As a result, this amp will rock out without overheating, even when tucked into a compact space.

SPECIFICATIONS

Maximum Power : 500 Watts

Low Frequency Response : 50-250 Hz

High Frequency Response : 50-250 Hz

Number of Channels : 2

Frequency Response : 20-20000 Hz

RMS Power Output : 2x250 Watts

Amplifier Class : A/B

Fuse Rating : 80 A

FEATURES

Features:

High level input capable with Auto Turn-On circuit
12dB/octave Butterworth crossover
RCA pass-thru outputs
Features C.L.E.A.N. Set-up
Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
On-board Punch EQ with +18dB boost @ 45Hz
Cast aluminum heatsink
Muted turn on
Stealth top mounted control panel
Short circuit protection
Over current protection
Marine grade 2-part epoxy coated PCB
Marine grade stainless steel hardware
2-Year Warranty


Specifications:

Cta-2006 Compliant
Number of Channels: 2
Total Power (Sum of Rated Power): 500 Watts
Rated Power (RMS Continuous Power)

150 Watts x 2 @ 4-Ohm
250 Watts x 2 @ 2-Ohm
500 Watts x 1 @ 4-Ohm Bridged

Dynamic Power(PVC/PowerCube®)

223 Watts x 2 @ 4-Ohms 0° Res
365 Watts x 2 @ 2-Ohms 0° Res

Bridgeable: Yes
Frequency Response: 20Hz to 20kHz +/- 1.0dB
Input Sensitivity: 150 mV - 12 V
Circuit Topology Class: Class A/B
Efficiency (average): 73% @ 4-Ohm
Total Harmonic Distortion (THD+Noise)

4-Ohm: <1.0%
2-Ohm: <1.0%

Signal Input: Hi/Low level: 1 RCA pair
Signal Output: Low level: 1 RCA pair
Tone Controls

Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Punch EQ2 Treble: 0dB to +12dB @ 12kHz
Function depends upon LP/AP/HP switch position

Crossover Controls

High-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
Low-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
All-Pass: Yes

Remote Controls: Optional Punch Level Control (PLC2) Ready
Visual Indicators

Power/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD

Power Wire Gauge: 4 AWG
Power Input Connector: Captive C-Clamp
Speaker Wire Gauge: 8 AWG to 18 AWG
Speaker Output Connector: Captive C-Clamp
Cooling: Convection
Operating Voltage: 9 - 16 VDC
Recommended Fuse (not included): 80 A
Average Current Draw (13.8V Music): 40 A
Max. Current Draw (13.8V Sinewave): 80 A
Suggested Alternator: 75 A
Dimensions (H x W x D):2.38 x 7.76 x 13.28 (in)

6.05 x 19.71 x 33.73 (cm)

Shipping Weight: 12.3 Lbs. (5.57 Kg.)

UPC: 780687345112
Weight: 13
