SounDigital Amplifier 35000.1EVOX-1O
WOS Pick What this amp does in 10 seconds — expand for full specs.
- BrandSounDigital
- SKU35000.1EVOX-1O
Mei says"Match this amp to your speakers and sub. Wrong power or wiring = weak system — do it once, do it right."
The stuff you'll actually notice
Product description

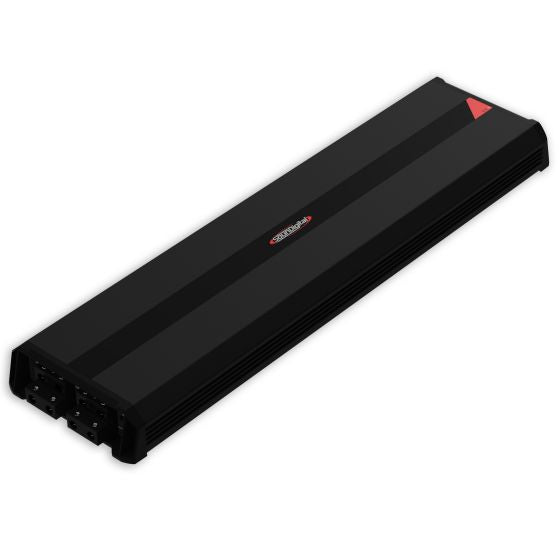

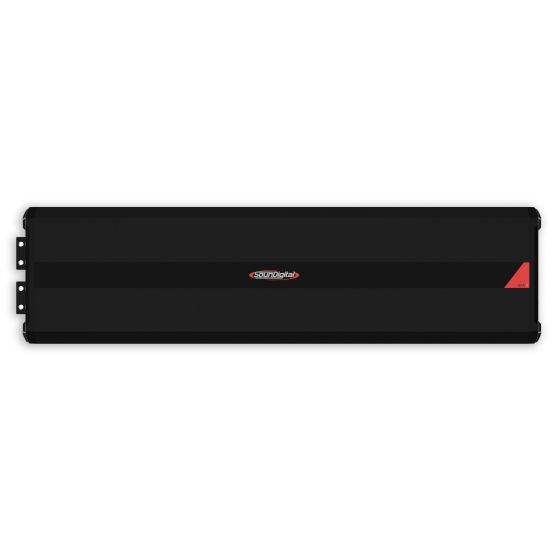

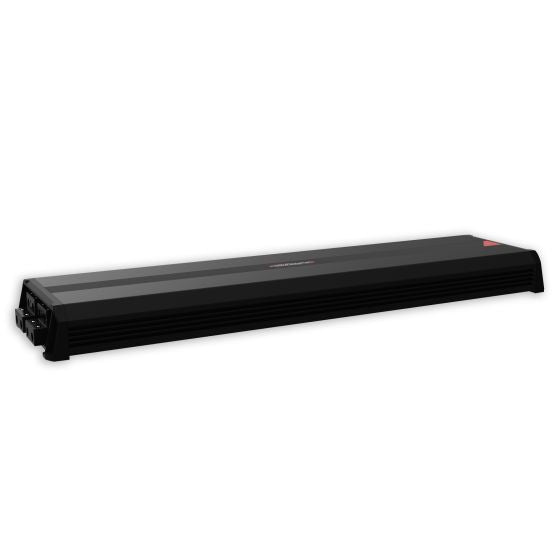

Soundigital 35000.1 EVOX – 1Ω Monoblock Amplifier
35000.1 EVOX – 1Ω Technical Information:
- Power @ 12.6V @ 4Ω: 1 X 15246 WRMS
- Power @ 12.6V @ 2Ω: 1 X 23100 WRMS
- Power @ 12.6V @ 1Ω: 1 X 35000 WRMS
- Power @ 14.4V @ 4Ω: 1 X 16999 WRMS
- Power @ 14.4V @ 2Ω: 1 X 25757 WRMS
- Power @ 14.4V @ 1Ω: 1 X 39025 WRMS
- Operating Voltage: 8V – 16V
- Current Draw (Music): 1715 A
- Current Draw (Max): 3429 A
- Recommended Fuse (Music): 3000 A (competition use)
- Total Efficiency: 81%
- Damping Factor: 200
- Frequency Response (-3dB): 5Hz – 500 Hz
- SNR: 76dB
- Crossover HPF: 5Hz – 30Hz
- Crossover LPF: 50Hz – 500Hz
- THD + N (10% Rated Power): 0.3%
- Product Dimensions: 34 x 8.8 x 2.8 in
Power breakdown
Inputs, filters & control
Build, wiring & install
Protection & performance
Full specifications
Amplifier
Power ratings
Inputs & filters
Wiring
Weather / environment
Support
Support & warranty
Need help choosing or installing?
We build indestructible, IP-rated systems for marine, motorcycle, UTV, and automotive. If you want a matched setup, we’ll guide you to the right gear the first time.
