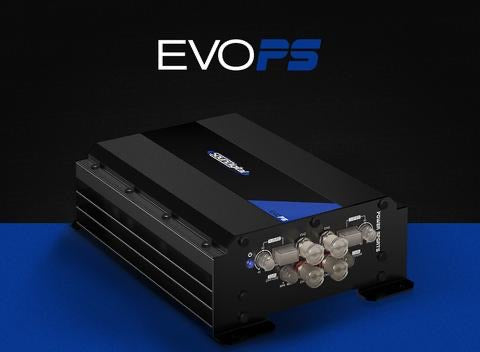

SounDigital Amplifier EVOPS1200.4-2O
WOS Pick What this amp does in 10 seconds — expand for full specs.
- BrandSounDigital
- SKUEVOPS1200.4-2O
Mei says"Match this amp to your speakers and sub. Wrong power or wiring = weak system — do it once, do it right."
The stuff you'll actually notice
Product description

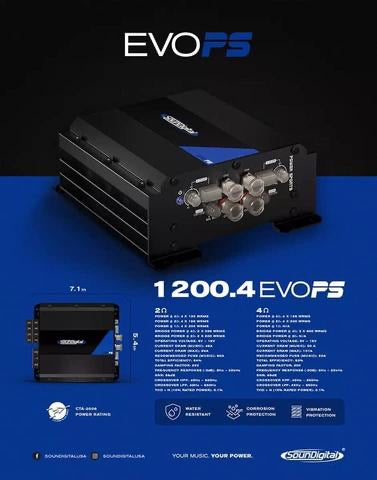

1200.4 EVOPS - 2 Ω
- Power @ 4Ω: 4 X 130 WRMS
- Power @ 2Ω: 4 X 198 WRMS
- Power @ 1Ω: 4 X 300 WRMS
- Bridge Power @ 4Ω: 2 X 396 WRMS
- Bridge Power @ 2Ω: 2 X 600 WRMS
- Operating Voltage: 8V – 16V
- Current Draw (Music): 49 A
- Current Draw (Max): 99 A
- Recommended Fuse (Music): 60 A
- Total Efficiency: 84%
- Damping Factor: 200
- Frequency Response (-3dB): 5Hz – 22kHz
- SNR: 88dB
- Crossover HPF: 45Hz – 850Hz
- Crossover LPF: 45Hz – 850Hz
- THD + N (10% Rated Power): 0.1%
- Product Dimensions: in
1200.4 EVOPS - 4 Ω
- Power @ 4Ω: 4 X 198 WRMS
- Power @ 2Ω: 4 X 300 WRMS
- Power @ 1Ω: N/A
- Bridge Power @ 4Ω: 2 X 600 WRMS
- Bridge Power @ 2Ω: N/A
- Operating Voltage: 8V – 16V
- Current Draw (Music): 50 A
- Current Draw (Max): 101 A
- Recommended Fuse (Music): 60 A
- Total Efficiency: 82%
- Damping Factor: 200
- Frequency Response (-3dB): 5Hz – 22kHz
- SNR: 88dB
- Crossover HPF: 45Hz – 850Hz
- Crossover LPF: 45Hz – 850Hz
- THD + N (10% Rated Power): 0.1%
- Product Dimensions: in
Power breakdown
Inputs, filters & control
Build, wiring & install
Protection & performance
Full specifications
Amplifier
Power ratings
Inputs & filters
Wiring
Weather / environment
Support
Support & warranty
Need help choosing or installing?
We build indestructible, IP-rated systems for marine, motorcycle, UTV, and automotive. If you want a matched setup, we’ll guide you to the right gear the first time.
